Keston Combi C30 - Boiler Dimensions, Services & Clearances

13
Installation and Servicing
SECTION 1 - GENERAL
395
198
89
155
62
30mm
Minimum Top Clearance
100
Air Flue
400
700
2.5
2.5
from case
*
CH FLOW
DATA PLATE
DHW OUTLET
COND. DRAIN
GAS INLET
Centre line
of boiler
DHW INLET
CH RETURN
PRV
43.5 65 28.5 28.5 60.6 75 37.556.4
Underside View - Dimensions to Wall

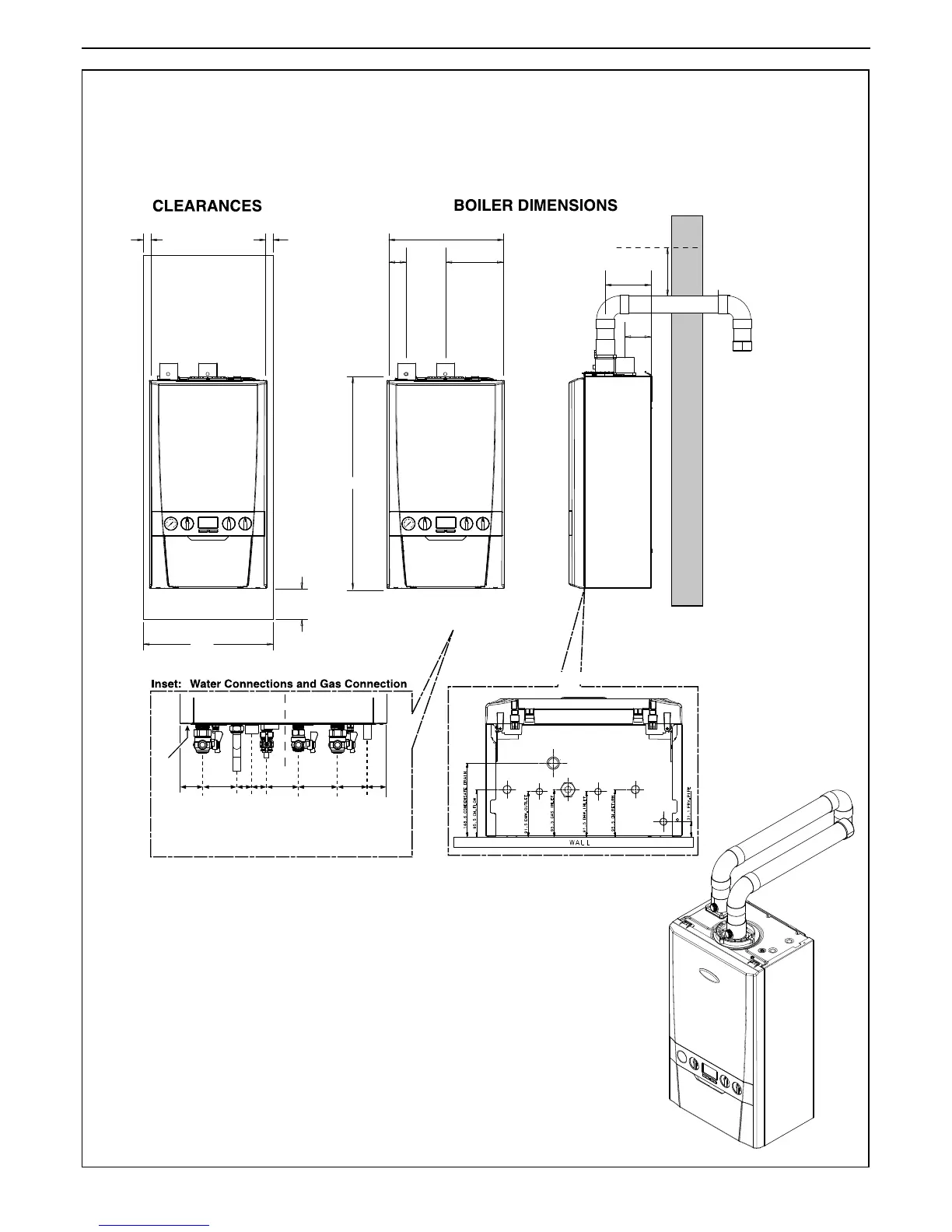

1.13 BOILER DIMENSIONS, SERVICES & CLEARANCES
The boiler connections are made on the boiler connection tails.
Refer to Section 2.15.
The following minimum clearances must be maintained for
operation and servicing.
Additional space will be required for installation, depending
upon site conditions.
Front clearance
The minimum front clearance when built in to a cupboard is 5mm from
the cupboard door but 450mm overall clearance is still required, with the
cupboard door open, to allow for servicing.
* Bottom clearance
Bottom clearance after installation can be reduced to 5mm.
This must be obtained with an easily removable panel to provide the
100mm clearance required for servicing.
