Keurig B3000 - External Component Identification

B3000 SERVICE MANUAL
60-200807-000, REV C 10
2. Brewer External Components

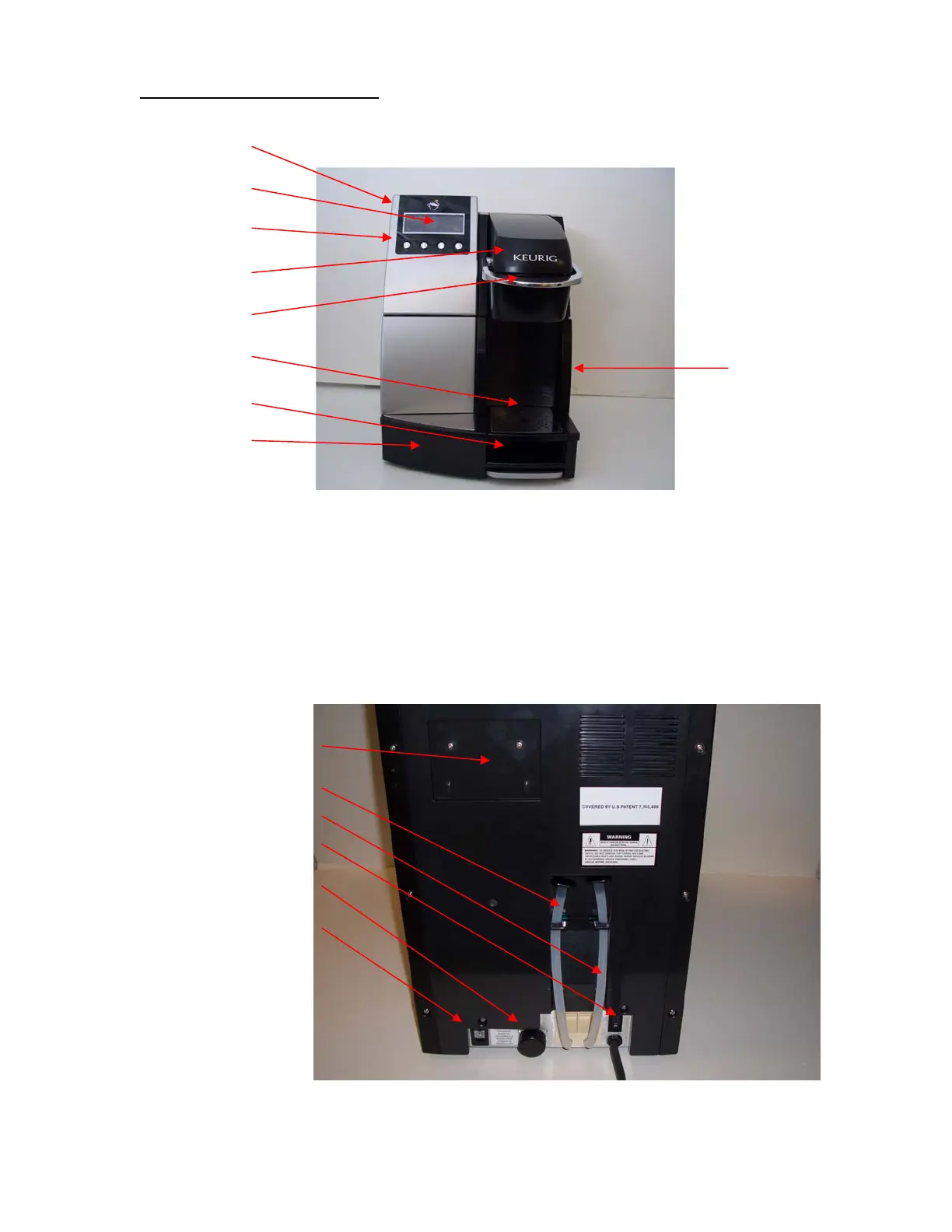

CONTROL PANEL
LCD DISPLAY – FIVE
LINES, BLUE
4 USER INTERFACE
BUTTONS
PUNCTURE
MECHANISM TOP
COVER
PUNCTURE HANDLE
UPPER DRIP PLATE –
CUP REST
LOWER DRIP PLATE –
TALL CUP REST
DRIP TRAY
FILTER MOUNTING AREA
HOT WATER TANK DRAIN TUBE
COLD WATER TANK DRAIN TUBE
POWER SWITCH
INLET VALVE
RJ11 COIN CHANGER
CONNECTOR
Disposal
Bin Door
Handle
