B3000 SERVICE MANUAL
60-200807-000, REV C 42

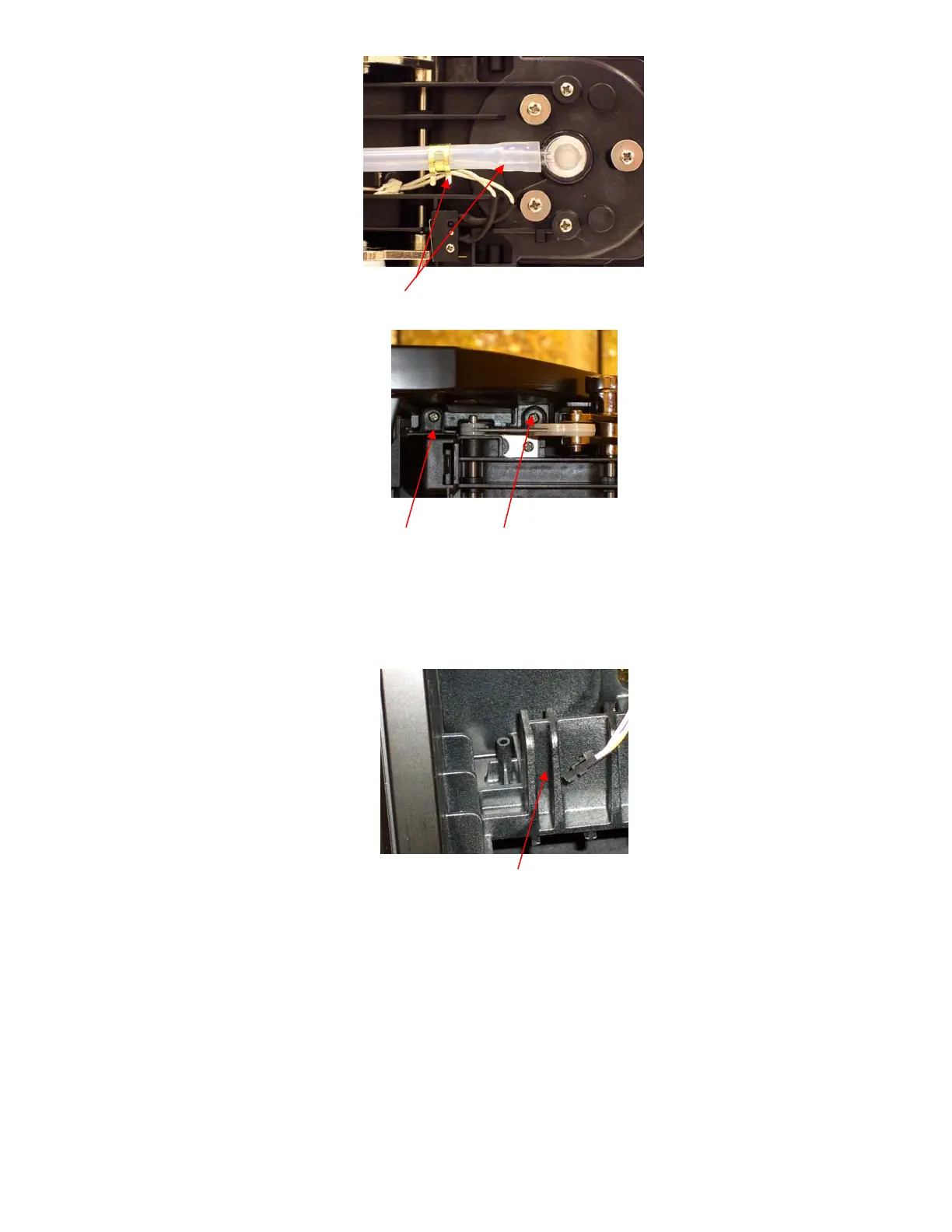

5. Release the hose clamp and remove the brew tube from the entrance needle assembly.
6. Loosen the four screws that hold the puncture module in place. There are two on each side. They
are captive screws so they will NOT come out completely.
Looking toward the back of the Puncture Mechanism Module area
7. Lift the Puncture Mechanism Module straight up about 2 inches (50mm) to disengage the unit
from a support mount. Support the module with your hand.
