3. Tightening the Mounting Screws. See Figures 18 and 19 below. The mechanism is shown outside of
the coin accessory cabinet.
4. Load coins in the coin changers as appropriate. Please refer to the respective unit’s manual for
direction on how to load coins.

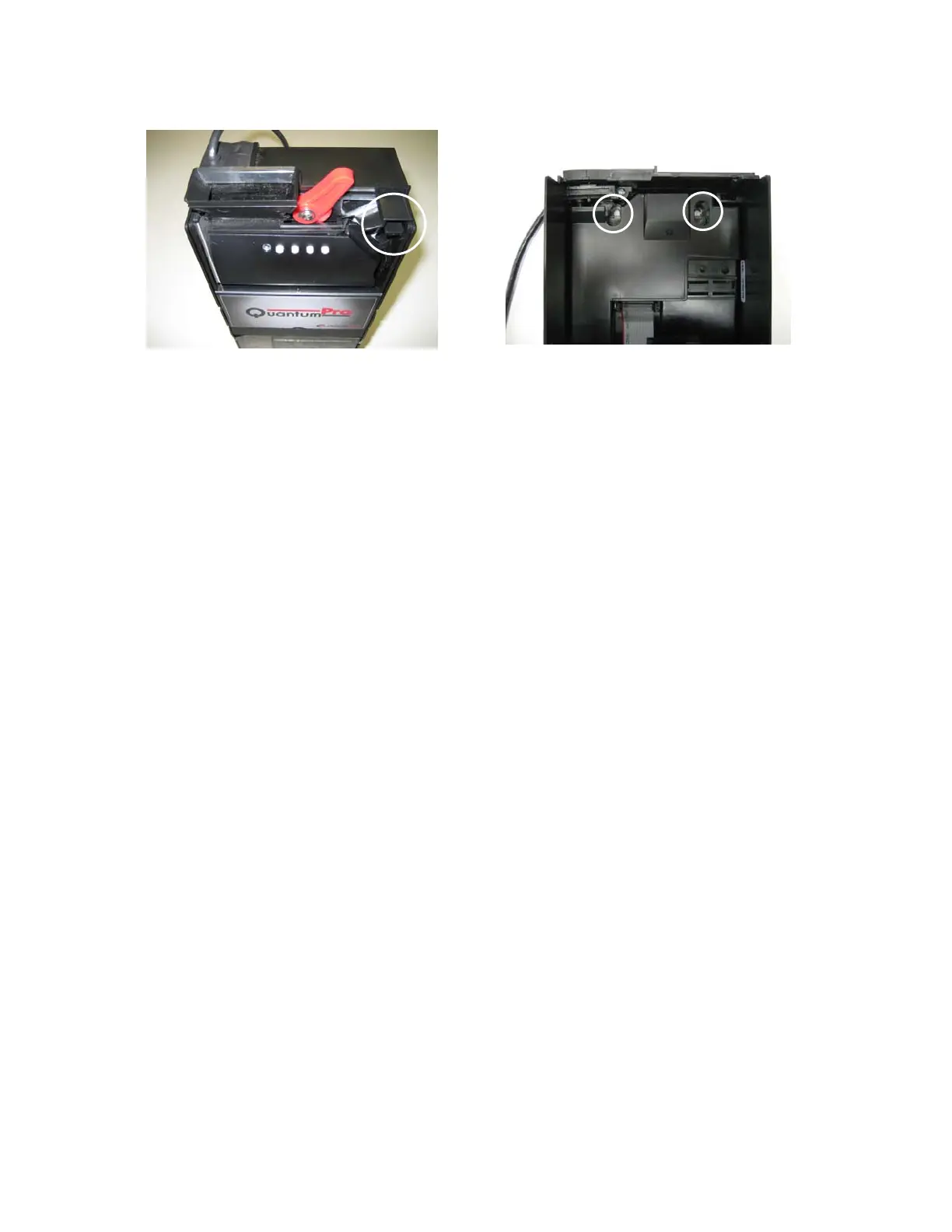

Figure 19 Figure 18
Coin slot
To tighten the mounting screws on the
Quantum Pro device the upper panel
must be opened. To open the panel
depress the tab and pull back on the
coin slot to rotate the panel toward
you and down.
Once the panel is rotated down the
screws will be exposed for tightening.
After tightening rotate the panel up
and back until it snaps closed.
