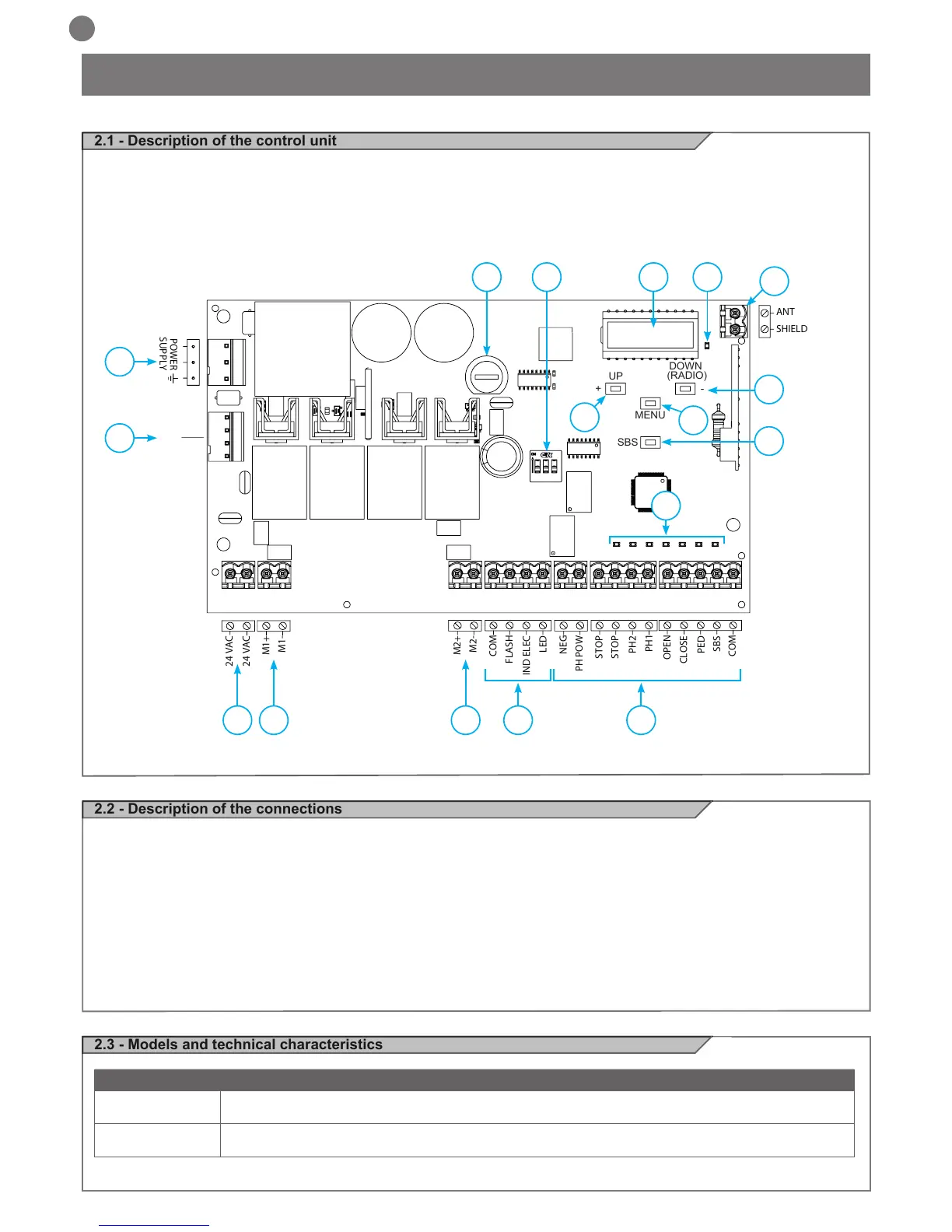

2.1 - Description of the control unit
The CT20224 control unit is the most modern, efcient system for the
control of Key Automation motors for the electric opening and closure
of swing gates.
All other, improper, use of the control unit is forbidden. The CT20224
2.2 - Description of the connections
1- Motor power supply connections
2- Transformer power supply connections
3- 24Vdc and 24Vac output connections to controls and safety
devices
4- Connector for battery charger KBP
5- Connection of ashing light, courtesy light, gate open indicator
light/electric lock
6- Functions display
7- Safety device dip switch
8- Fuse 2AT slow-acting
9- STOP-PH2-PH1-OPEN-CLOSE-PED-SBS safety led and led
input led
10- STEPPING SBS button
11- UP + button up
12- MENU button menu
13- DOWN - (DOWN) button down and radio menu
14- Antenna
15- KEY led
2.3 - Models and technical characteristics
has a display allowing easy programming and constant monitoring
of the input status; the menu structure also allows easy setting of
working times and operating modes.
2 - INTRODUCING THE PRODUCT
24 VAC 24 VAC
M1+
M1-
M2+
M2-
COM
FLASH
IND ELEC
LED
NEG
PH POW
STOP STOP
PH2
PH1
OPEN
CLOSE
SBS
PED
COM
SHIELD
ANT
POWER
SUPPLY
UP
+ -
MENU
SBS
DOWN
(RADIO)
BATTERIES
( KBP ACCESSORY)
1 13
2
4
5 3
68 7 15
9
10
12
13
11
14
CODE DESCRIPTION
900CT20224 24V control unit for two swing gate motors
900CT20224L 24V control unit for two swing gate motors (115 V)
