Troubleshooting and Diagnostics 4

Keysight 34980A Service Guide 101

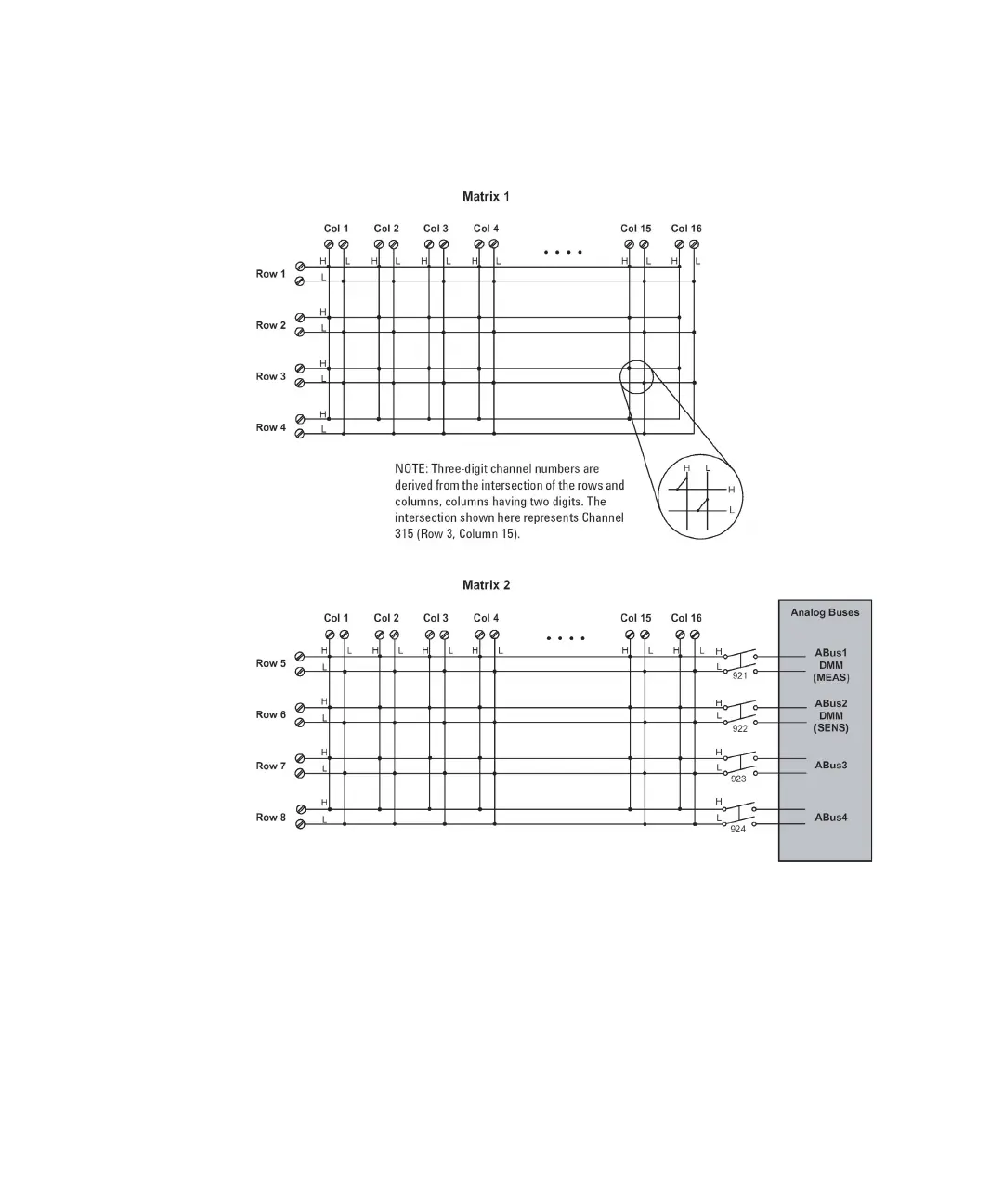

Matrix 1 and Matrix 2 are electrically separate from one another.

Matrix Relays: Armature latching. Analog Bus Relays: Armature non-latching

For the 34932A, relay part numbers are given on page 131 and the component

locator is shown on page 145. The table below and on the next page shows the

relationship of channel numbers to relay numbers.
