34952A Multifunction Module

The only calibration constants are for the two DAC outputs on the 34952A

Multifunction Module. These outputs can be measured using an external

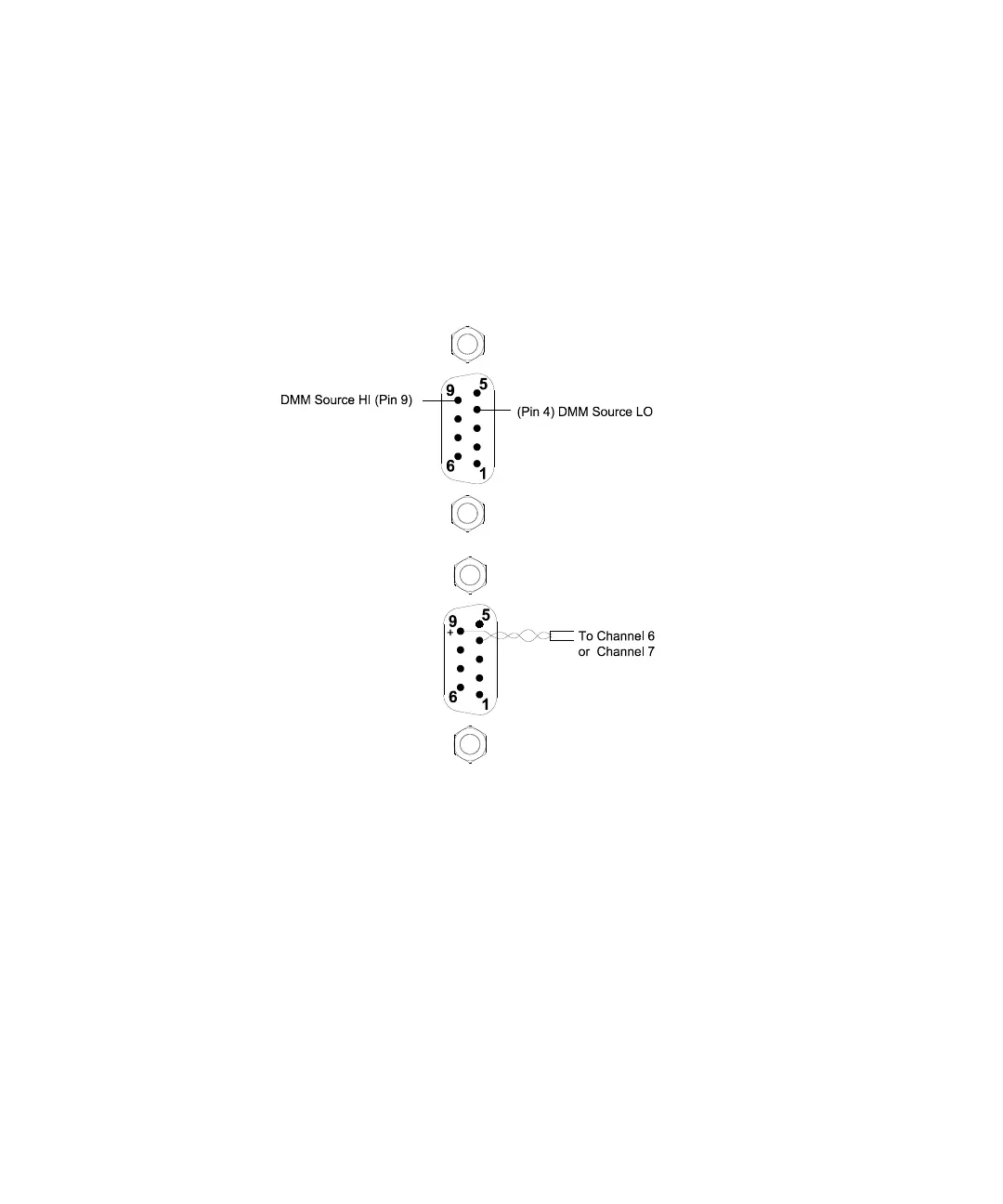

voltmeter, or with a test fixture such as the one shown below, using the internal

DMM via the ABus connector on the instrument’s rear panel.
