Disassembly and Repair 5

Keysight 34980A Service Guide 121

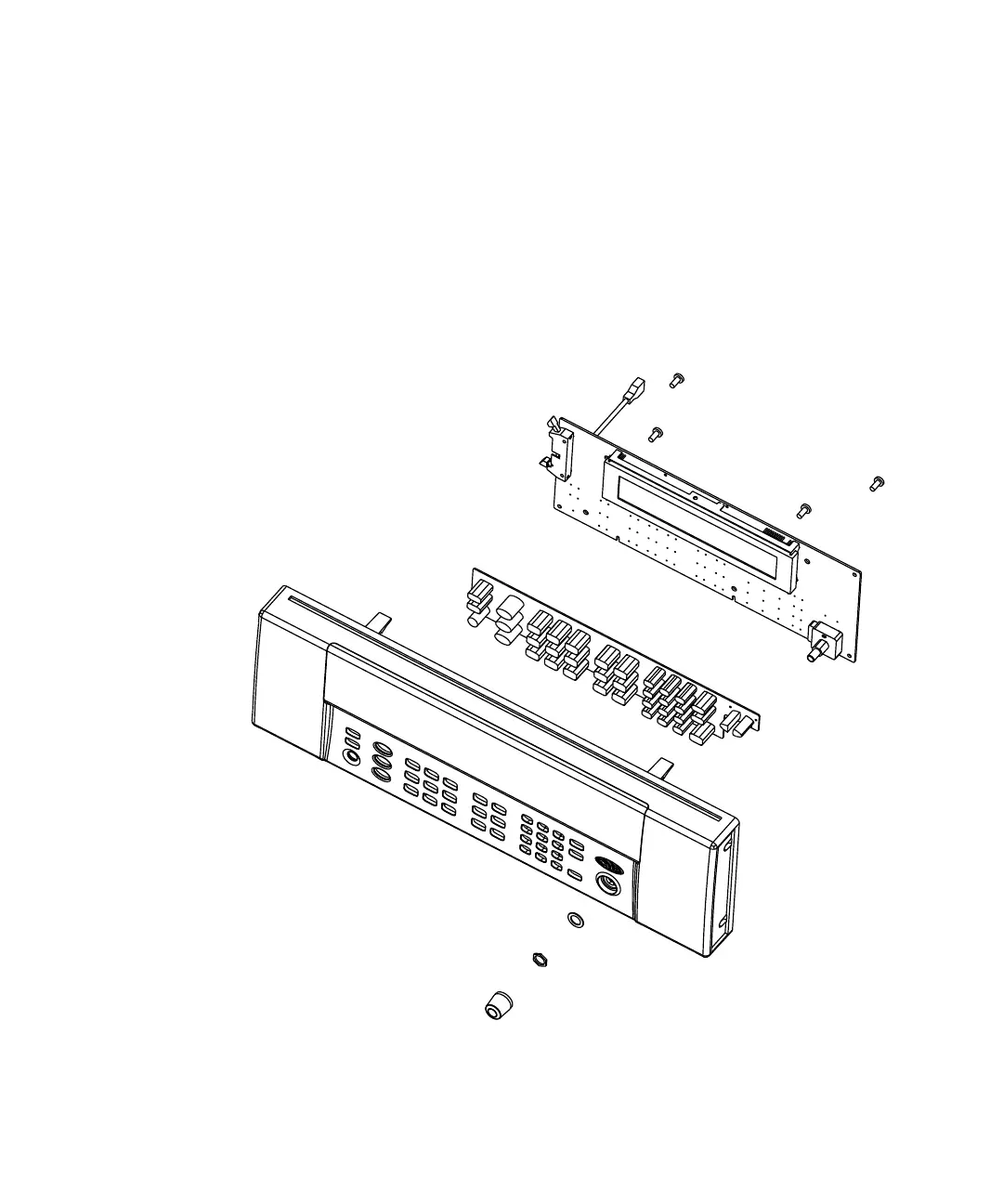

Front Panel Disassembly

1 Pull to remove the knob. Use a 7/16” nut driver to remove the nut from the

knob shaft.

2 Remove the four T20 Torx screws from the circuit board and lift the circuit

board out.

You can now lift out the keypad.
