5 Disassembly and Repair

116 Keysight 34980A Service Guide

Power Supply Removal

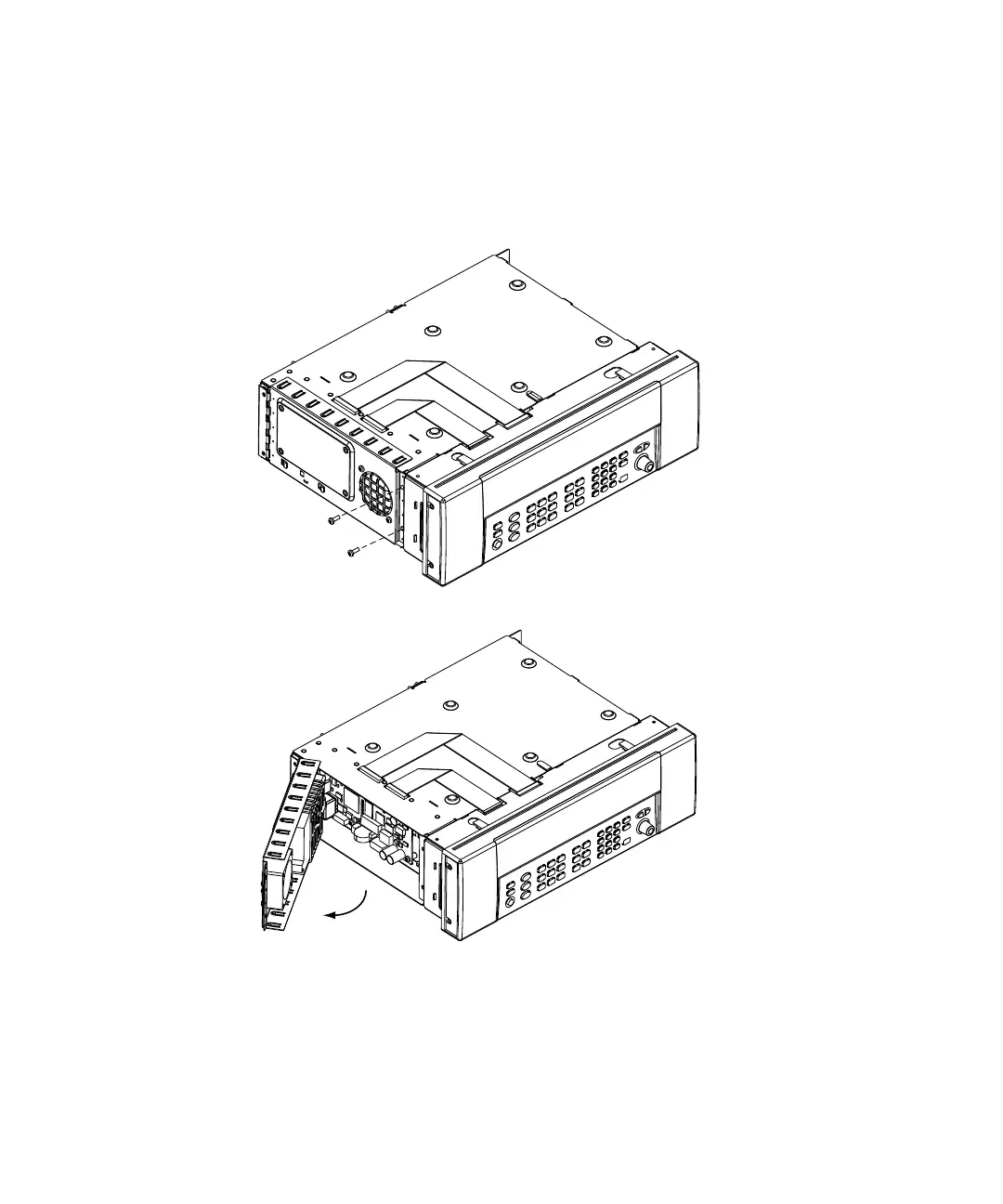

1 Remove the two T20 Torx screws securing the power supply module.

2 Swing the module out and disengage it from the sheet metal at the back.
