5 Disassembly and Repair
120 Keysight 34980A Service Guide

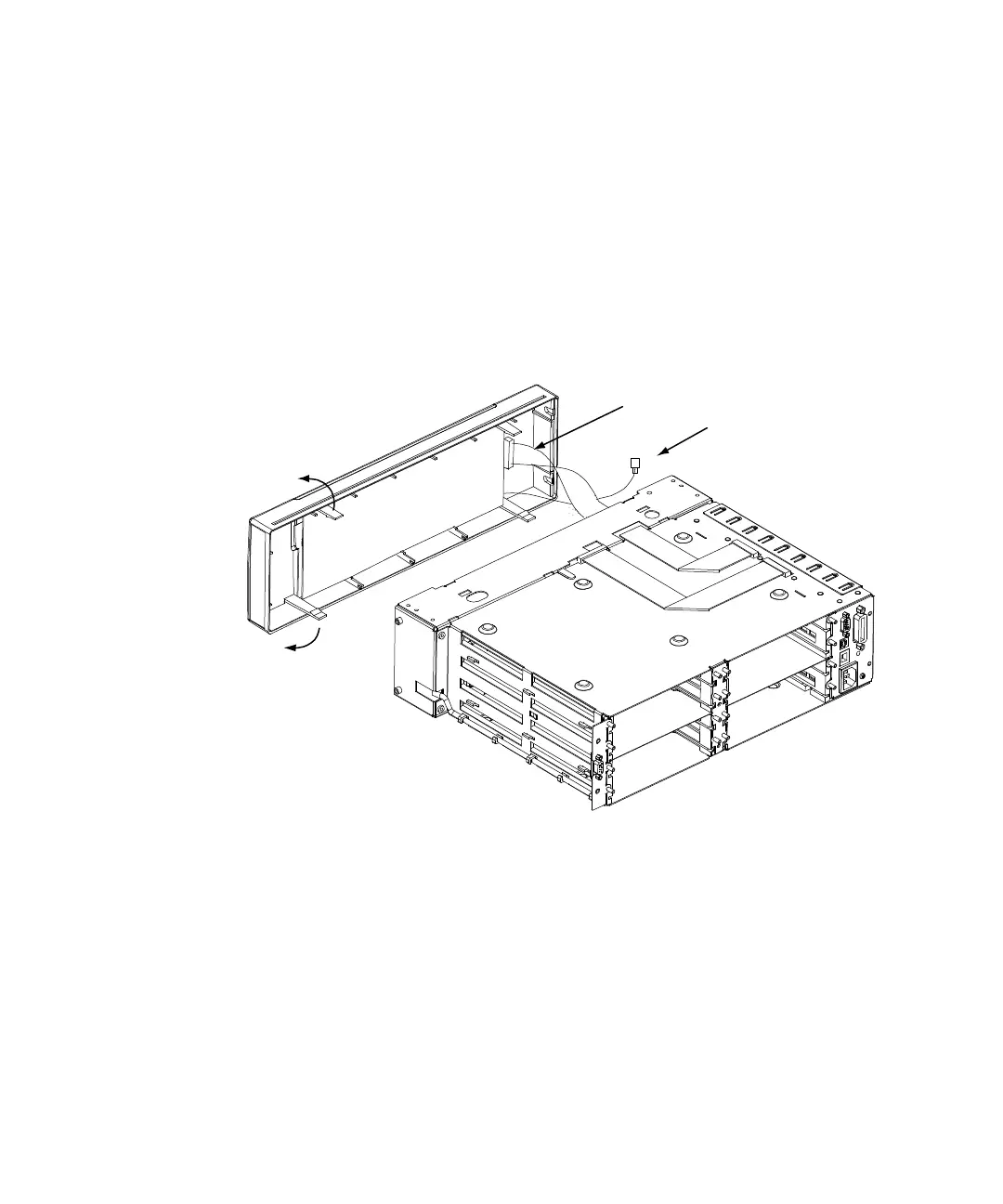

Front Panel Removal
1 Loosen the front panel assembly by lifting gently on the four plastic ears and
moving the front panel off the mainframe. Stand the entire assembly on its side
to make removal easier.
a Pull to unclip the ground connector from the mainframe.
b Swing the two clips securing the front panel connector ribbon cable to the
front panel circuit board and unplug the connector.
