34951A Verification

Test Connections

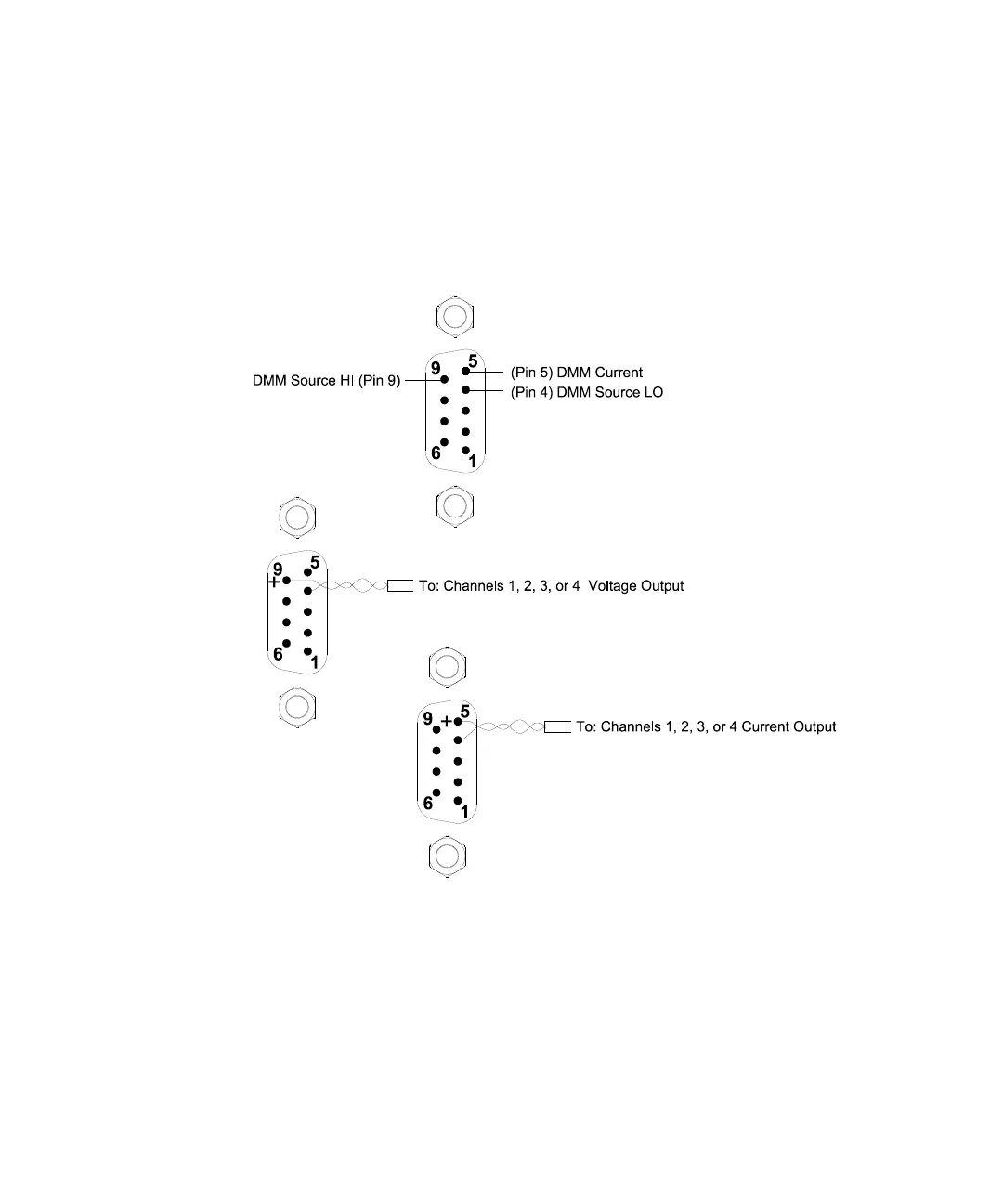

The DAC outputs can be measured using an external

voltmeter, or using a test fixture such as the one shown below, with the internal

DMM via the ABus connector on the instrument’s rear panel.
