4 Troubleshooting and Diagnostics

98 Keysight 34980A Service Guide

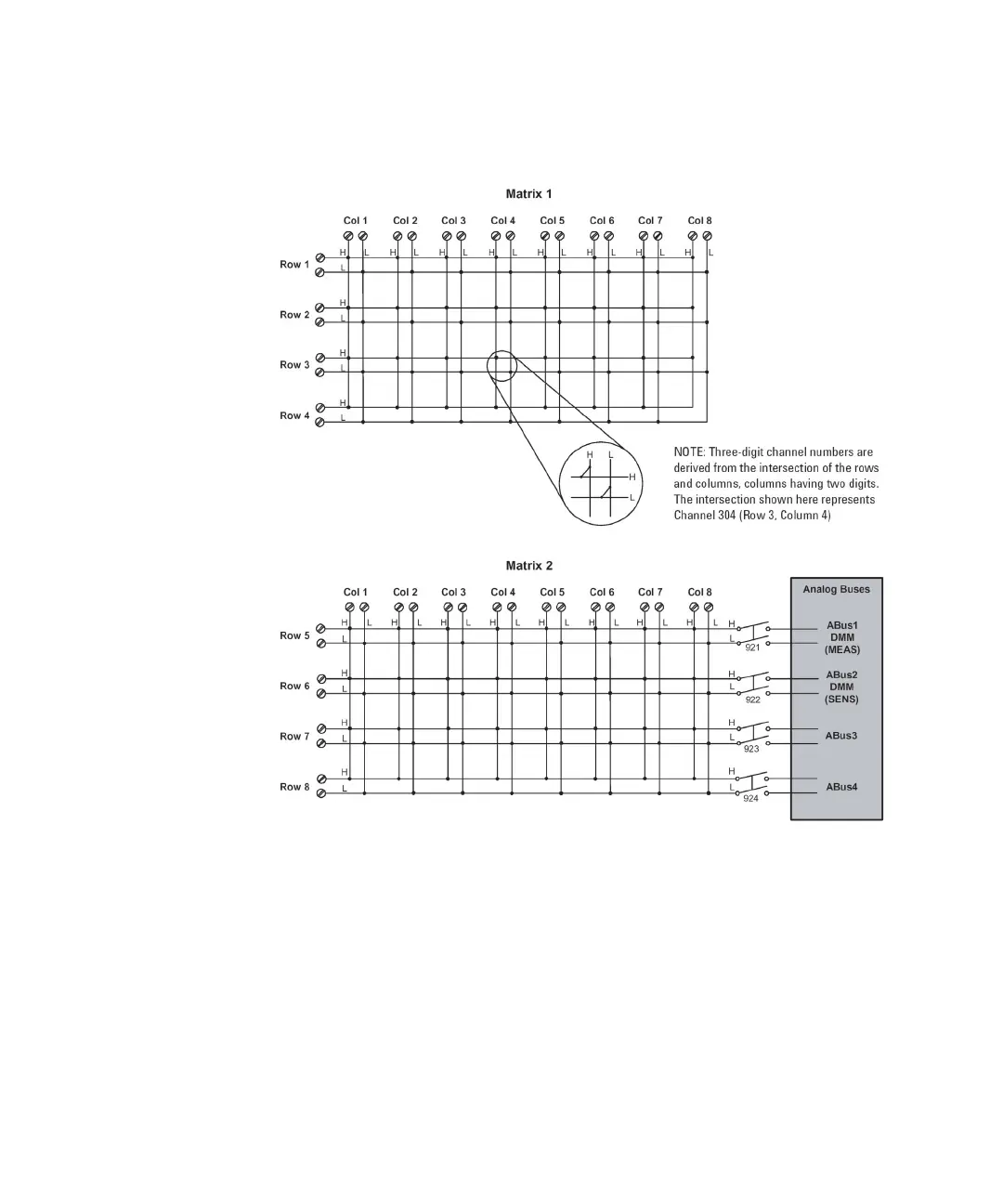

Matrix 1 and Matrix 2 are electrically separate from one another.

Matrix Relays: Armature latching. Analog Bus Relays: Armature non-latching.

For the 34931A, relay part numbers are given on page 130 and the component

locator is shown on page 144. The table below shows the relationship of channel

numbers to relay numbers.
