8163A/B, 8164A/B & 8166A/B Mainframes Programming Guide 277
The Keysight 816x VXIplug&play Instrument Driver 7
How to Perform a Multi-Frame Lambda Scan Application

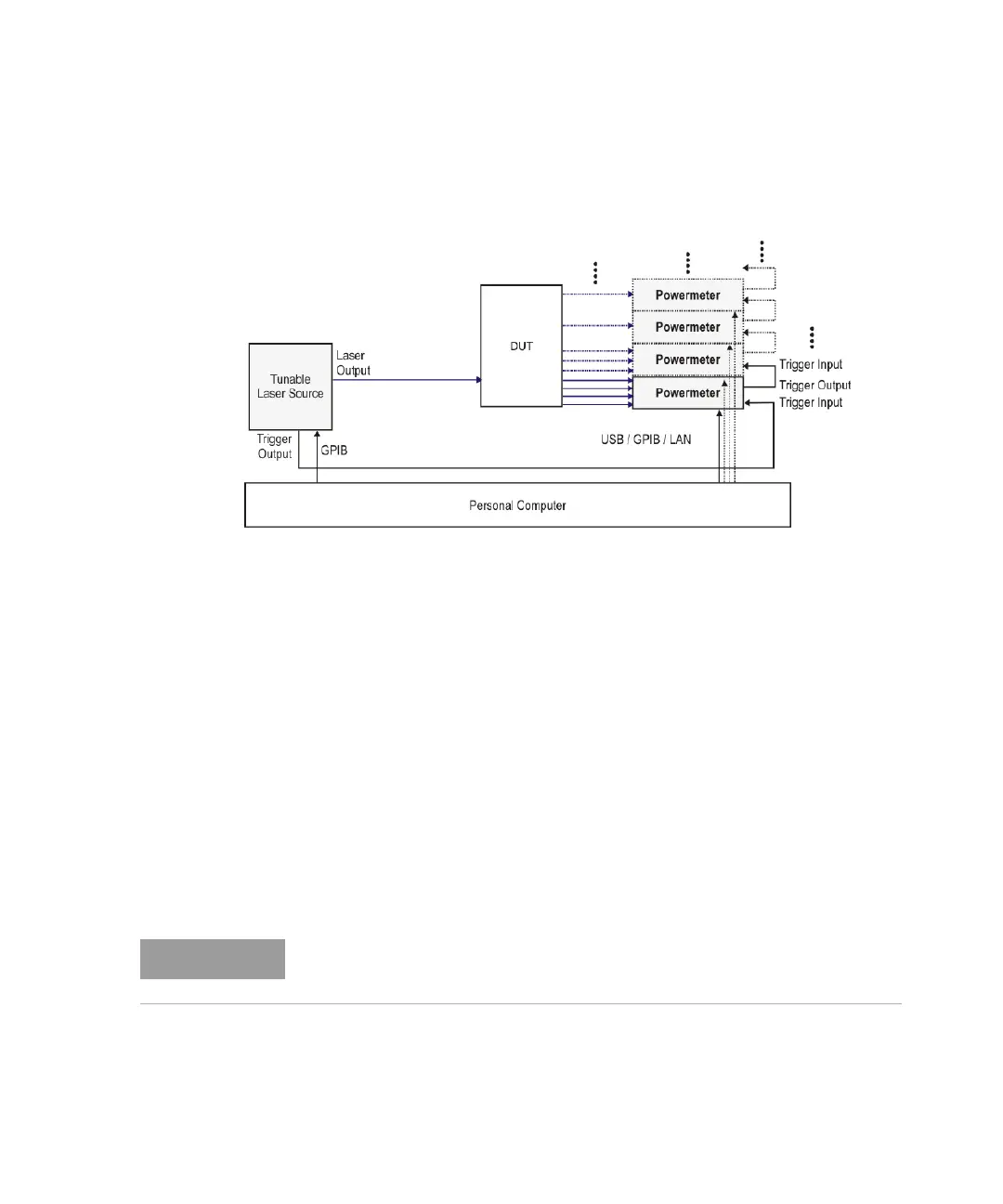

Figure 15 Multi Frame Lambda Scan Operation Setup
The Equally Spaced Datapoints Function
The Equally Spaced Datapoints (hp816x_returnEquidistantData) function
allows you to select whether you the results will be equally spaced by
performing a linear interpolation on the wavelength point and power
measurement data, see Equally Spaced Datapoints on page 273 for more
details.
This function is used because Lambda Scan functions make use of Lambda
Logging to log the exact wavelength that measurements were triggered at.
This results in Lambda Array wavelength points that are not equally
spaced.
Equally Spaced Datapoints is enabled as a default.
Lambda Logging is not available if your Tunable Laser module firmware revision
is lower than 2.0.
