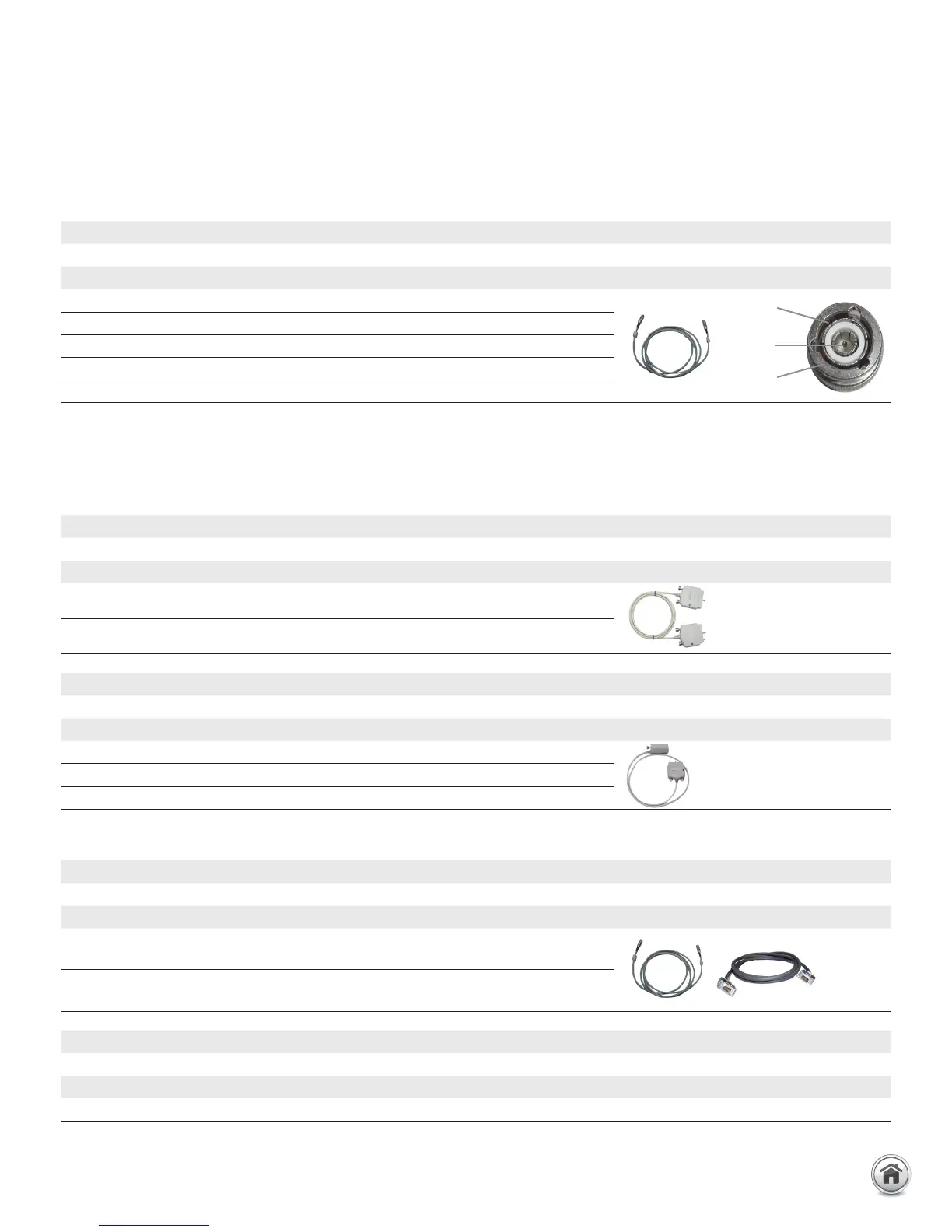

13 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide
Accessories
SMU accessories
Triaxial cable: Triaxial cable has three leads, a central conductor for the signal, an encapsulating conductor that shields the center
signal by employing the same voltage thus decreasing a possible leakage current, and an outer conductor that serves as common.
Model/Option Description Contents Qty Additional Information
16494A Triaxial Cable - - Order with the option.
Select cable length option
16494A-001 Triaxial Cable (1.5 m) Triaxial cable 1
16494A-002 Triaxial Cable (3 m) Triaxial cable 1
16494A-003 Triaxial Cable (80 cm) Triaxial cable 1
16494A-004 Triaxial Cable (40 cm) Triaxial cable 1
16494A-005 Triaxial Cable (4 m) Triaxial cable 1
Kelvin Triaxial cable: Kelvin Triaxial cable consists of two central twisted parallel leads that are connected to Force and Sense
terminals of a SMU. A common guard and an outer conductor that is connected to Common further shield the two leads. By Kelvin
connection it is possible to limit the influence of the connection leads on a lower resistively measurement to a minimum. Kelvin Triaxial
cables should be employed when performing very sophisticated measurements.
Model/Option Description Contents Qty Additional Information
16493K Kelvin Triaxial Cable - - For B1500/E5260/E5270. Order with the option.
Select cable length option
16493K-001 Kelvin Triaxial Cable (1.5 m) Kelvin Triaxial cable 1
16493K-002 Kelvin Triaxial Cable (3 m) Kelvin Triaxial cable 1
Model/Option Description Contents Qty Additional Information
16494B Kelvin Triaxial Cable - - For E5250A input port. Order with the option.
Select cable length option
16494B-001 Kelvin Triaxial Cable (1.5 m) Kelvin Triaxial cable 1
16494B-002 Kelvin Triaxial Cable (3 m) Kelvin Triaxial cable 1
16494B-003 Kelvin Triaxial Cable (80 cm) Kelvin Triaxial cable 1
ASU cable and accessory
Model/Option Description Contents Qty Additional Information
16493M Triax and Dsub Cable for ASU - - Order with the option.
Select cable length option
16493M-001 Triax and Dsub Cable for ASU (1.5 m) A set of triaxial D-sub
Cable
1
16493M-002 Triax and Dsub Cable for ASU (3 m) A set of triaxial D-sub
Cable
1
Model/Option Description Contents Qty Additional Information
N1254A Accessories for instruments and fixtures - - Order with the option.
Select cable length option
N1254A-108 ASU Magnetic Stand Magnetic Stand 1
Guard
Force
(Sense)
Common
To Next Page
