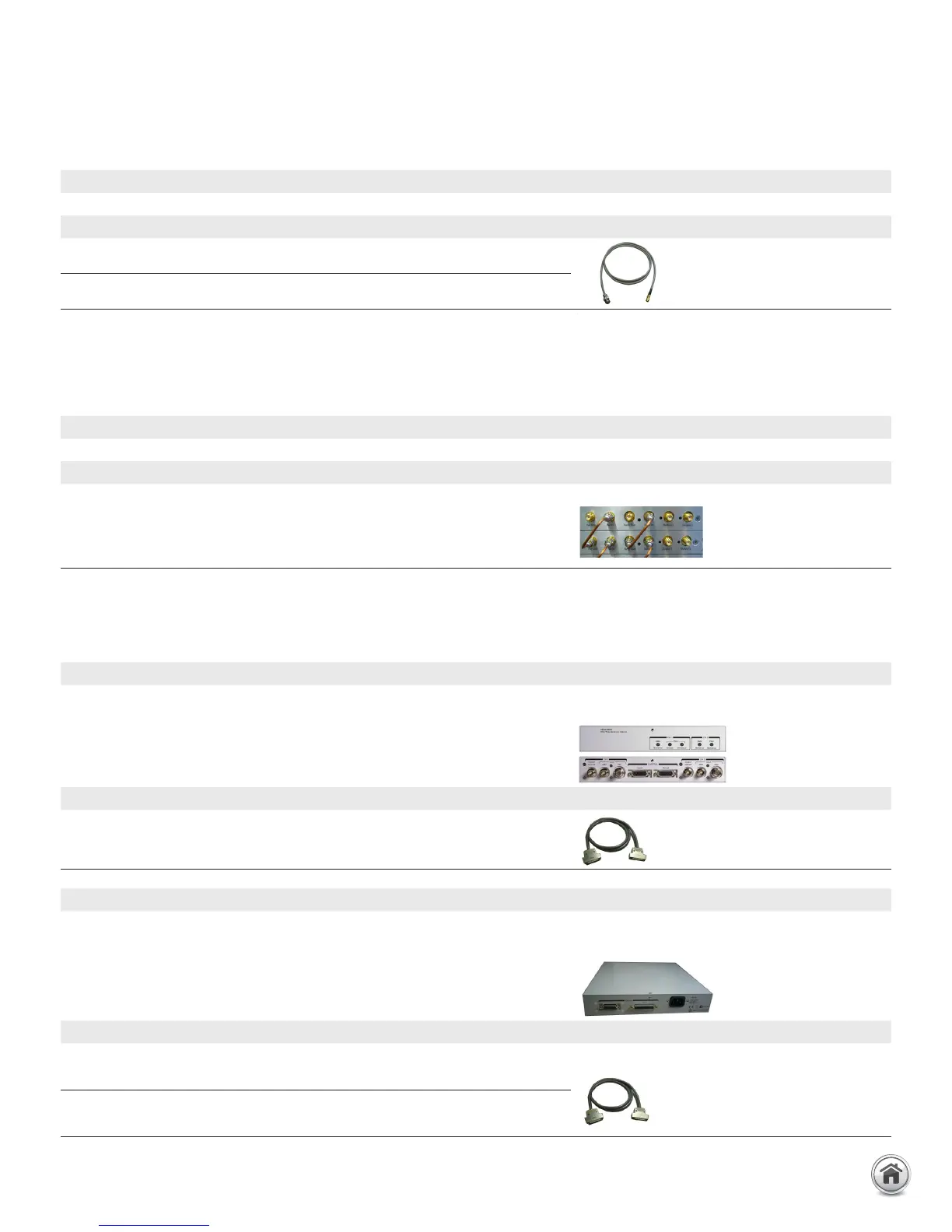

HV-SPGU Accessories
SPGU cable
Model/Option Description Contents Qty Additional Information
16493P SPGU Cable (SMA-to-Coaxial) - - Order with the option.
Select cable length option
16493P-001 SPGU Cable (1.5 m) SPGU cable 1
16493P-002 SPGU Cable (3 m) SPGU cable 1
SPGU Synchronous cable
SPGU synchronous cable is semirigid SMA cable. It is used to connect between sync-in and out to synchronize the timing between
SPGU modules.
Model/Option Description Contents Qty Additional Information
16493Q SPGU Synchronous Cable - - Order with the option.
Select cable length option
16493Q-001 SPGU Synchronous Cable (8 cm) SPGU Synchronous
Cable
1 SPGU synchronous cable (SMA to SMA, 8 cm).
SMU/PGU selector: 16440A SMU/PGU selector is used to switch the measurement resource connected to the device. The measure-
ment resource can be SPGU or SMU. A selector provides two switching channels. 16445A selector adapter is required to control the
16440A SMU/PGU selector.
Model/Option Description Contents Qty Additional Information
16440A SMU/Pulse generator selector 16440A 1 16440A SMU/PGU pulse generator selector. Order with
the option.
Select cable length option
16440A-003 Control cable (40 cm) Control cable 1
Model/Option Description Contents Qty Additional Information
16445A SMU/PGU Selector Connection
Adapter
16445A 1 16445A Selector adapter for 16440A.
Order with the option.
16445A-001 Control Cable for B1500A to 16445A
(1.5 m)
Control cable 1 Digital I/O cable from B1500A to 16445A
16445A-002 Control Cable for B1500A to 16445A
(3 m)
Control cable 1
