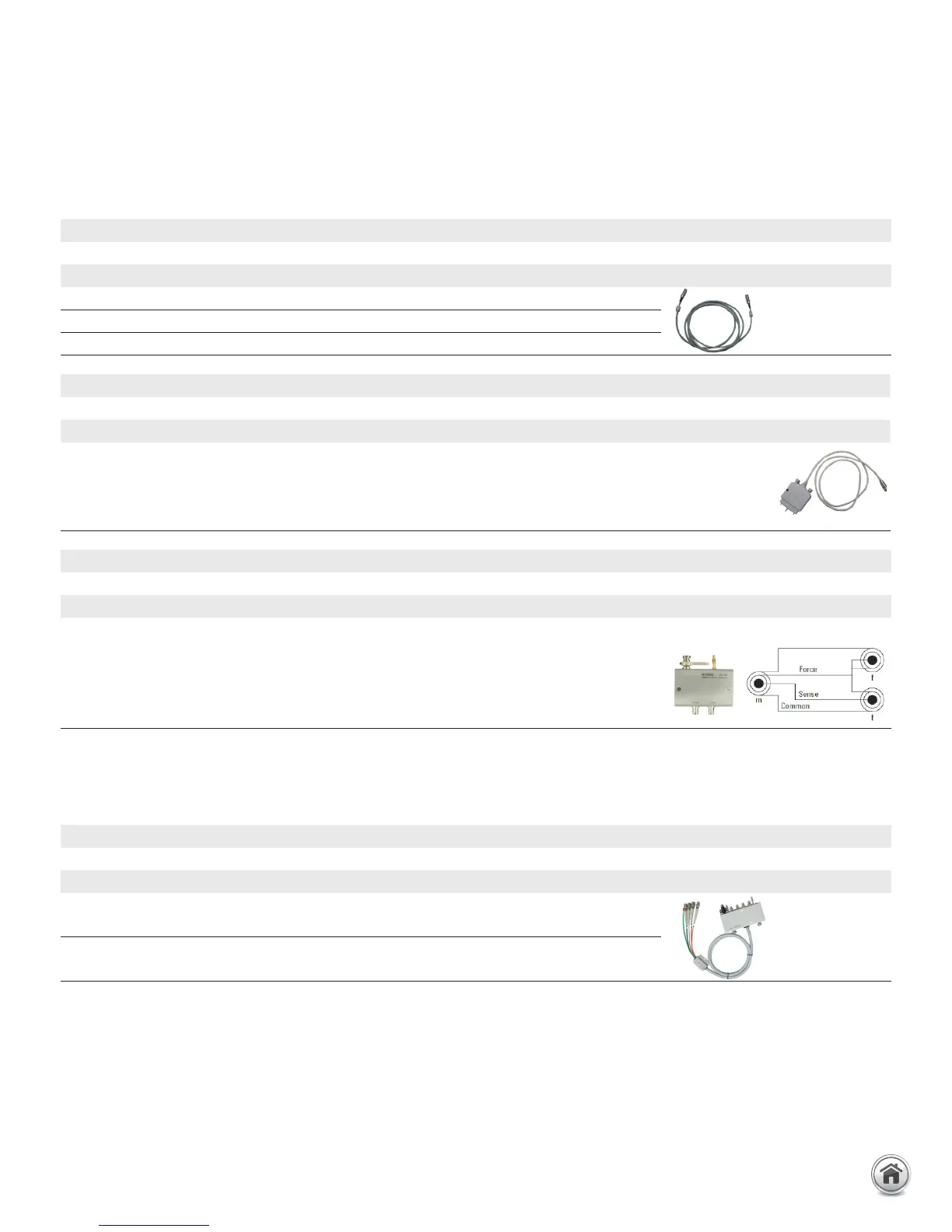

14 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide

Ground Unit cable and accessory

GNDU has triaxial type connector as well as SMU. However the terminal assignment is different from SMU. Force and sense are

integrated into a single terminal. A central conductor is Sense, the inner shield is Force, and the outer shield is Common. 16493L GND

unit cable is designed for the GNDU that can sink the current up to 4.2 A. The GNDU to Kelvin adapter separates the Force and Sense

for cabling like SMU.

Model/Option Description Contents Qty Additional Information

16493L GNDU Cable - - Order with the option.

Select cable length option

16493L-001 GNDU Cable (1.5 m) GNDU Cable 1

16493L-002 GNDU Cable (3 m) GNDU Cable 1

16493L-003 GNDU Cable (5 m) GNDU Cable 1

Model/Option Description Contents Qty Additional Information

16493N Ground Unit Cable for B2200/B2201 Input (Kelvin Triaxial) - - Order with the option.

Select cable length option

16493N-001 Ground Unit Cable for B2200/B2201 Input (Kelvin Triaxial,

2 m)

GNDU Cable 1 GNDU cable for

B2200A/B2201A

switching matrix

nput port, 2 m

Model/Option Description Contents Qty Additional Information

N1254A Accessories for instruments and fixtures - - Order with the option.

Select cable length option

N1254A-100 GNDU to Kelvin adapter GNDU to Kelvin adapter 1 Furnished with B1500A mainframe.

CMU Accessories

CMU cable

Model/Option Description Contents Qty Additional Information

N1300A CMU cable - - Order with the option.

Select cable length option

N1300A-001 CMU cable (1.5 m) CMU cable 1

N1300A-002 CMU cable (3 m) CMU cable 1
