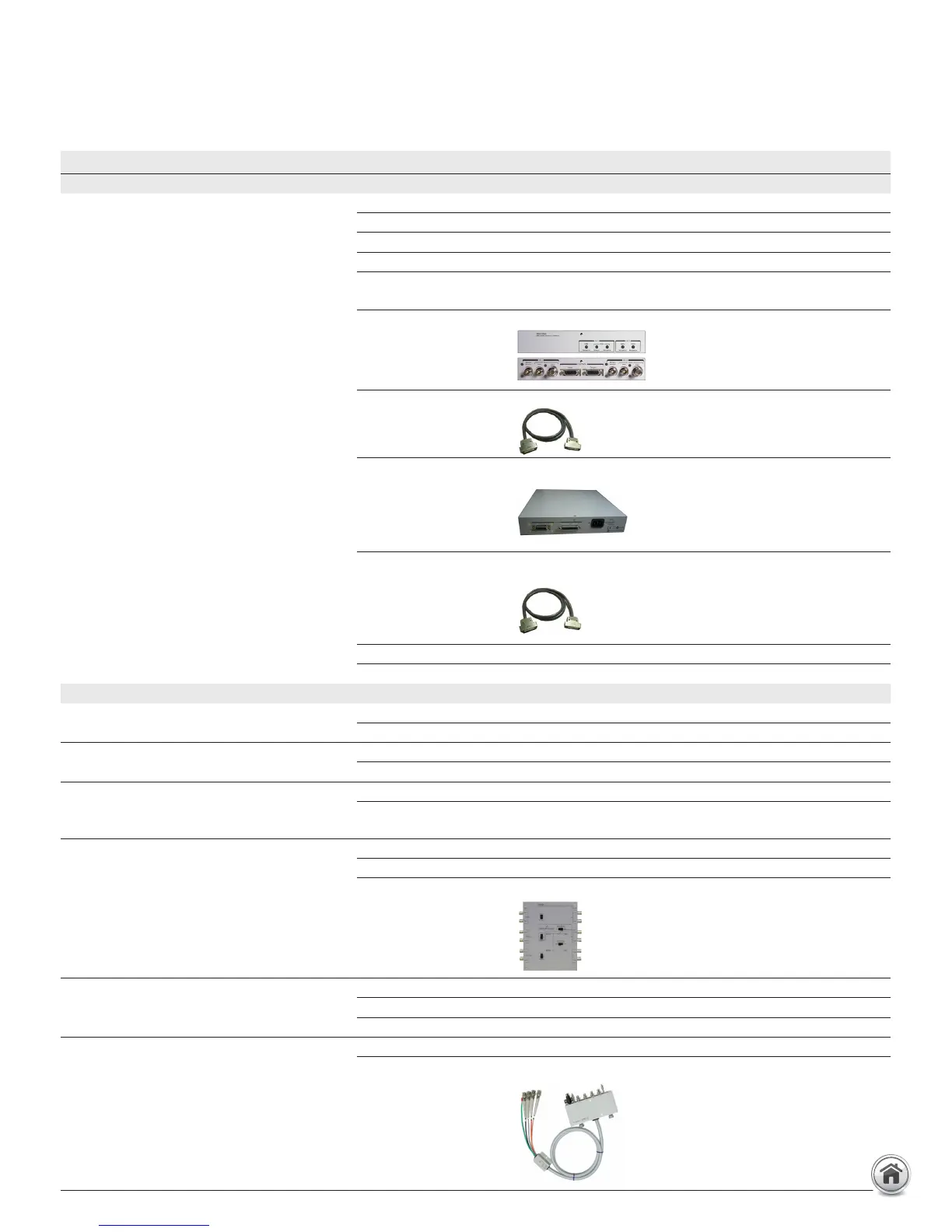

06 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide
B1500A Configuration Options and Contents, continued
Model/Option Description Contents Qty Additional Information
Select package options (mandatory and mutually exclusive) - continued
B1500A-A04 Standard Pack 4 - Flash Pack(Mid
PWR unit 2ea, Hi-Res unit 2ea, PG,
Accessories)
MPSMU 2 Installed MPSMU module
HRSMU 2 Installed HRSMU module
HV-SPGU 1 Installed HV-SPGU module
SPGU cable 2 SPGU Cable (SMA to Coaxial)
SPGU synchronous
cable
2 SPGU synchronous cable (16493Q, SMA to SMA, 8 cm).
16440A 1 16440A SMU/PGU pulse generator selector
Control cable 1 Control cable (40 cm) between 16445A and 16440A (16440A-003)
16445A 1 16445A Selector adapter for 16440A
Control cable 1 Digital I/O cable, 1.5 m, between B1500A and 16445A (16445A-001)
Triaxial cable 2 Triaxial cable (1.5 m) bundled in 16440A
Triaxial cable 8 Cable length is 1.5 m or 3.0 m
Select add-on packages (optional)
B1500A-A10 Add-on Package - High Power Source
Monitor Unit (B1510A) 1ea, Cables
HPSMU 1 Installed HPSMU module
Triaxial cable 2 Cable length is 1.5 m or 3.0 m
B1500A-A11
Add-on Package - Mid Power Source
Monitor Unit (B1511B) 1ea, Cables
MPSMU 1 Installed MPSMU module
Triaxial cable 2 Cable length is 1.5 m or 3.0 m
B1500A-A17 Add-on Package - High Resolution
Source Monitor Unit (B1517A) 1ea,
Cables
HRSMU 1 Installed HRSMU module
Triaxial cable 2 Cable length is 1.5 m or 3.0 m
B1500A-A1A Add-on Package - B1514A Medium
current source/monitor unit 1ea w/
connection box
MCSMU 1 Installed MCSMU module
Triaxial cable 2 Cable length is 1.5 m or 3.0 m
N1255A 1 N1255A Connection box for B1514A MCSMU
B1500A-A1B Add-on Package - B1514A Medium
current source/monitor unit 2ea w/
connection box
MCSMU 2 Installed MCSMU module
Triaxial cable 4 Cable length is 1.5 m or 3.0 m
N1255A 1 N1255A Connection box for B1514A MCSMU
B1500A-A20 Add-on Package - Capacitance
Measurement Unit (B1520A) 1ea,
Cable 1ea
MFCMU 1 Installed MFCMU module
CMU cable 1 CMU cable. Cable length is 1.5 m or 3.0 m
