Keysight Technologies B1500A Configuration Guide

04 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide
Maximum Module Configuration
The total power consumption of all SMU modules cannot exceed 84 W. Under this rule,
the B1500A can contain any combination of the following SMUs:
– Up to 10 MPSMUs
– Up to 10 HRSMUs
– Up to 4 HPSMUs
– Up to 4 MCSMUs
Only one single-slot MFCMU can be installed per B1500A mainframe. Up to five single-
slot HV-SPGUs can be installed per mainframe. Up to five single-slot WGFMUs can be
installed per mainframe.
When one or more WGFMU modules are installed in the B1500A mainframe, the
following table applies. Multiply the values given below by the number of installed
modules of that type and add the products together. The sum of the products must be
less than or equal to 59 for the configuration to be permissible.
MPSMU 2
HRSMU 2
HPSMU 14
MCSMU 5
MFCMU 7
HV-SPGU 12
WGFMU 10

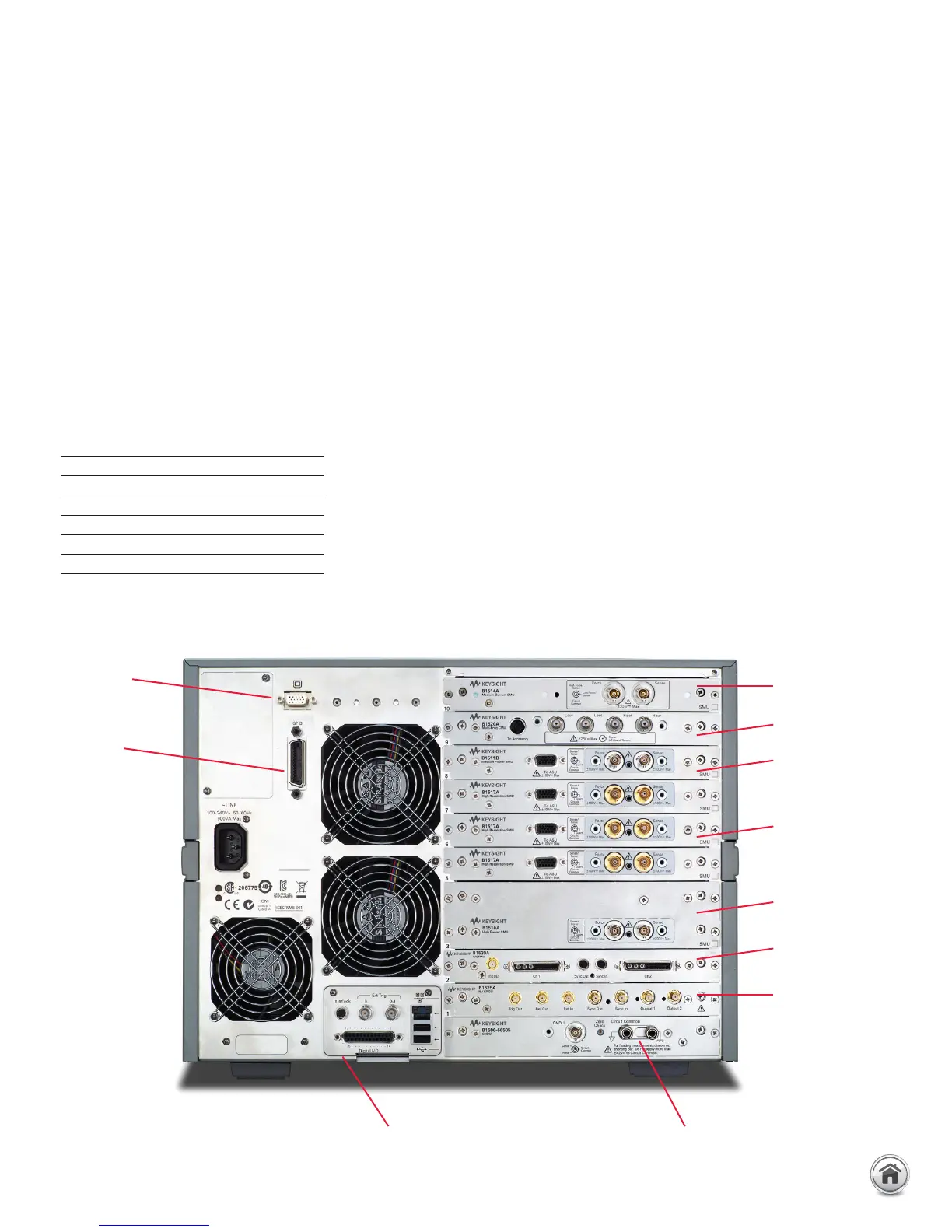

VGA video
output port
GPIB port
B1514A MCSMU
B1520A MFCMU
B1511B MPSMU
B1517A HRSMU
B1510A HPSMU
B1530A WGFMU
B1525A HV-SPGU
Built-in ground unit (GNDU)
LAN, USB, external trigger
in/out and digital I/O ports
