12) Rotate to select Source trigger count and press to edit it. Then enter the number
of trigger signals that will be sent to the instrument as Source trigger count.
13) You can also press to set it to INFINITE if you want to continuously source a sinusoid
waveform after triggering.
Note: You need to manually abort the output to make the instrument return to an idle state when
Source trigger count is set to INFINITE.
14) Press to make the instrument be ready to receive an external trigger signal.
(The status information will show while the waveform is being sourced.)
Now the instrument has been ready to receive an external trigger signal.

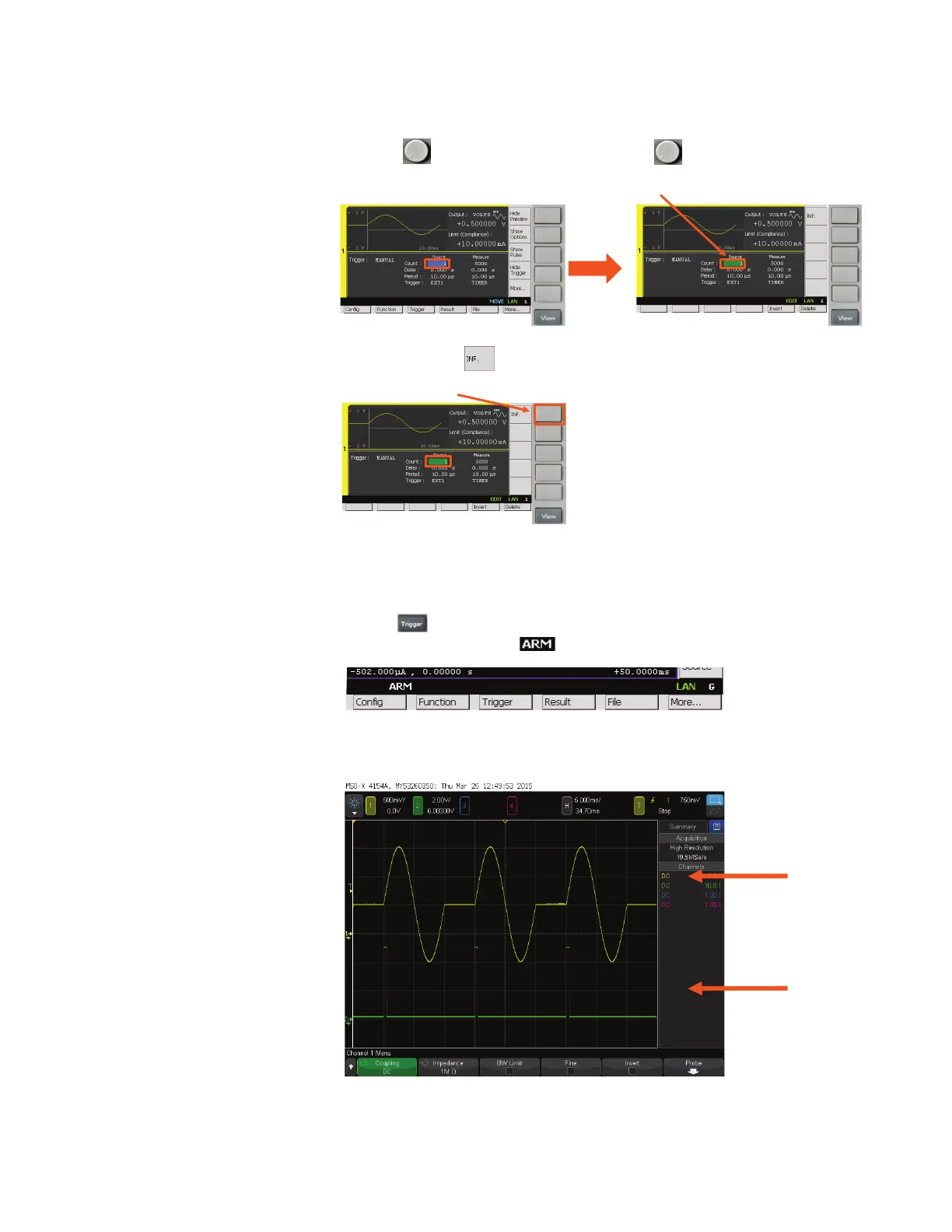

Result on Oscilloscope
Output signal
from a channel
Trigger Input
via Digital I/O
21 | Keysight | Sourcing Precise Current/Voltage Sinusoidal Waveforms Using the B2961A/62A – Demo Guide
