Service and Maintenance
1
Keysight E36200 Series Service Guide
49
18

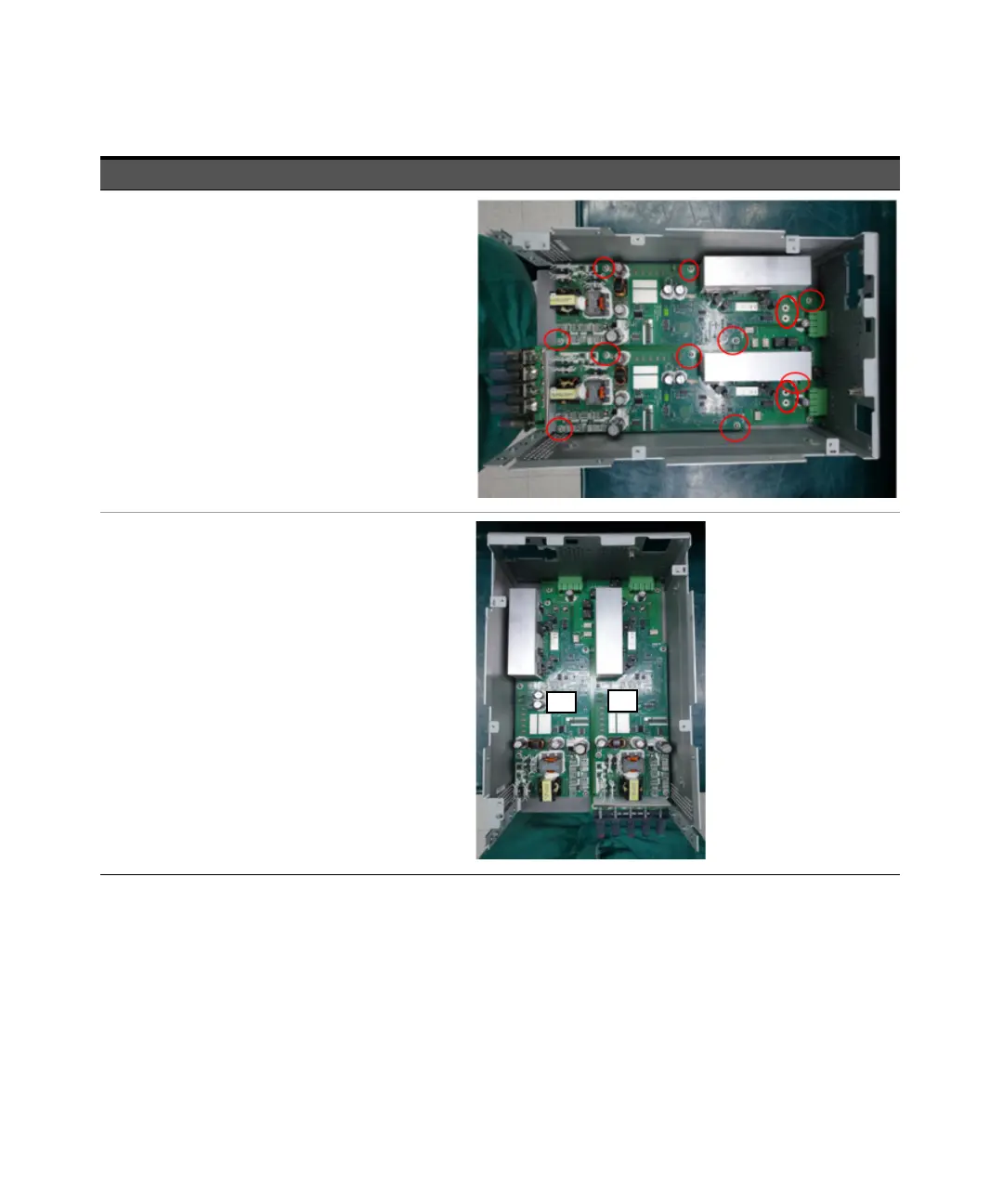

Remove 14 screws fr
om the PCA m
ainboard
using a T10 bit.
19
Lift and remove the the two PCA mainboards
from the chassis.
Step
Instructions
Visual
s
1
2
48
50
Table of Contents
Default Chapter
3
Safety Symbols
3
Safety Considerations
4
Environmental Conditions
7
Regulatory Information
7
Regulatory Markings
8
Waste Electrical and Electronic Equipment (WEEE) Directive
9
Product Category
9
Sales and Technical Support
9
Table of Contents
11
1 Service and Maintenance
14
Specifications and Characteristics
14
General Information
14
Types of Service Available
14
Obtaining Repair Service (Worldwide)
14
Repackaging for Shipment
14
Cleaning and Handling
15
Troubleshooting
16
Self-Test Procedures
16
Replacing the Fuse
16
User Replaceable Parts
17
Battery Replacement
17
Replacing the Battery
18
Disassembly
20
Tools Required
20
Removing/Installing the Optional GPIB Interface
20
Replacing the Front Panel Binding Post
21
2 Verification and Adjustments
54
Performance Verification
54
Recommended Test Equipment
54
Test Considerations
55
Measurement Techniques
56
Constant Voltage (CV) Verification
58
CV Load and Line Regulation
59
Low Range Current Verification
67
Constant Current (CC) Verification
69
Test Record Forms
74
Calibration Adjustment Procedures
82
Closed-Case Electronic Calibration
82
Calibration Interval
82
Calibration Adjustment Process
82
Calibration Security
83
Calibration Count
84
Calibration Message
85
Saving Calibration Data
85
Calibration Auto Save
85
Calibration Procedure
86
Save the Calibration Data
88
