Low range current verification
Low range current readback accuracy
These tests verify that the LAN, GPIB, or USB readback measurement functions
are within specifications. Note that the readback values over the remote interface
should be identical to those displayed on the front panel, but with maximum
resolution.
1 Turn off the power supply using the AC line switch.
2 Connect a DMM between the (+) and (–) terminals of the output.

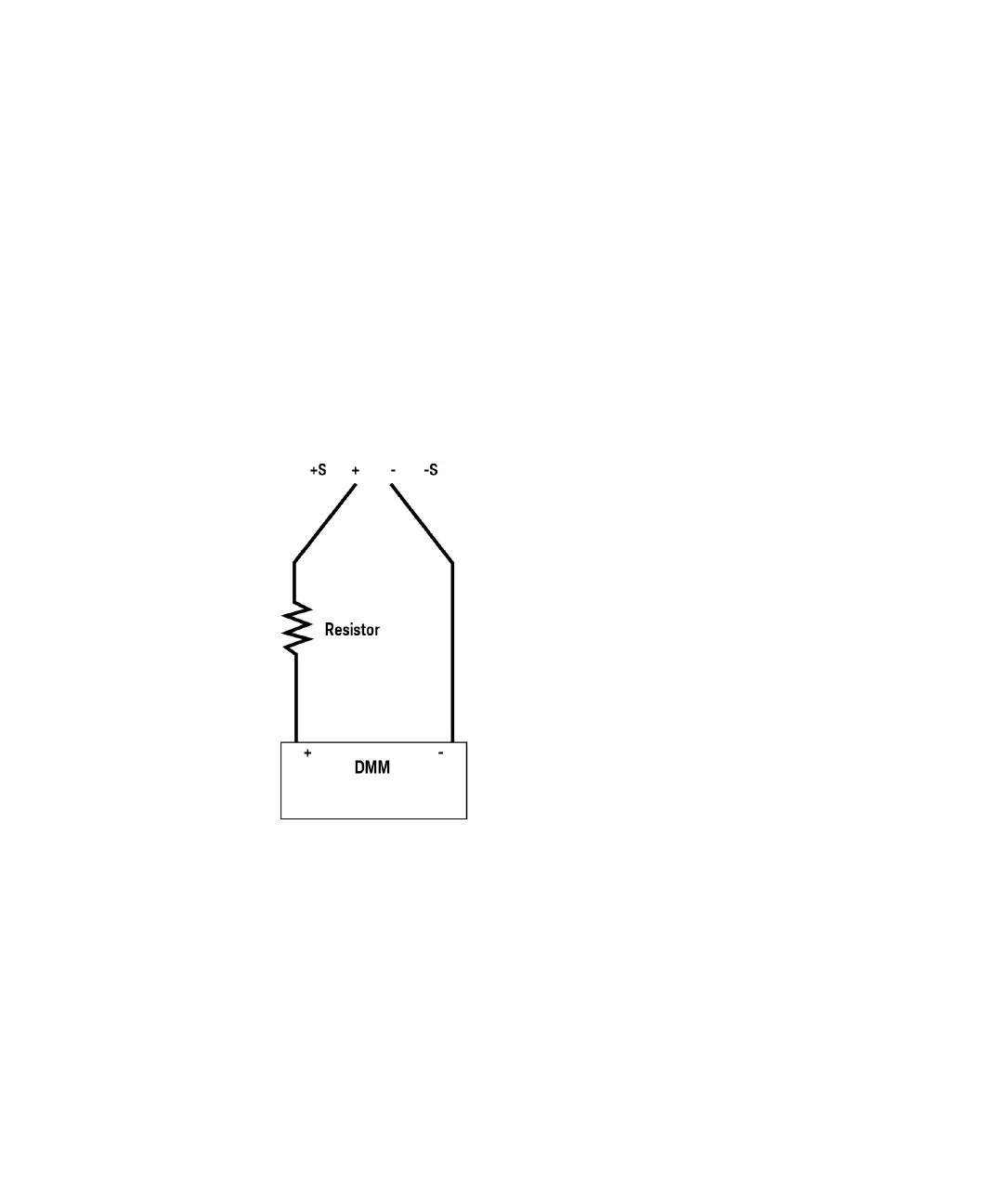

3 Connect appropriate resistor in series with the (+) terminals of the power
supply and (+) terminals of the DMM as shown below.
4 If you are using a PC to control the power supply, connect a LAN, GPIB, or USB
cable from the power supply to the PC.
5 Turn on the power supply using the AC line switch.
