1 Service and Maintenance
18 Keysight E36200 Series Service Guide
Replacing the battery
1 Remove the instrument top cover.
2 The battery is located at the front PC board.
3 Use a flat-bladed screwdriver and carefully pry up on the side of the battery.
4 Install the new battery.

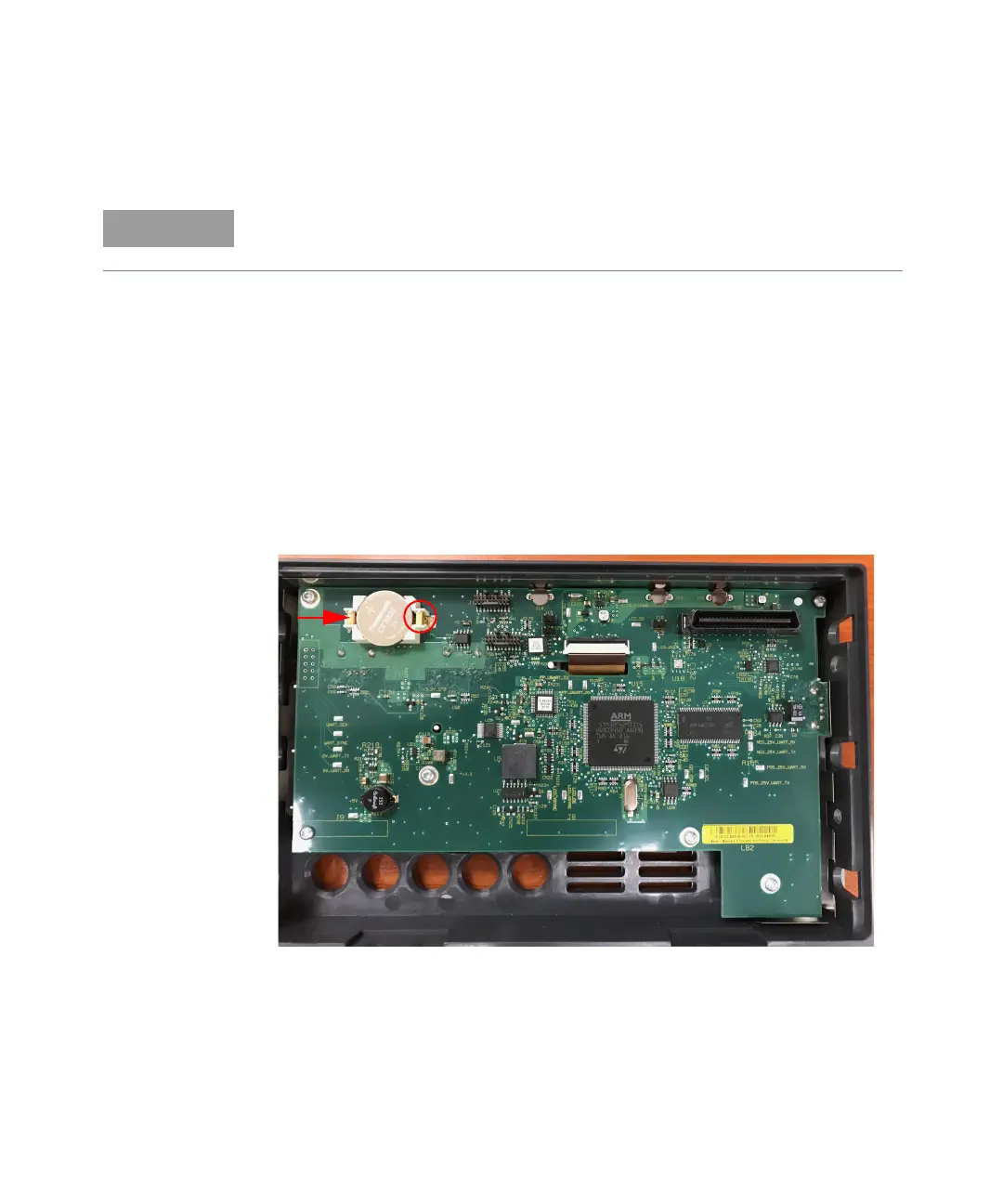

Make sure that the positive side (+) is facing up. Place the battery under the
small spring clips closest to the ribbon cable connector, then push down on
the opposite end of the battery to seat the battery (see red arrow below). The
top of the small spring clips should be visible after the battery is seated (see
red circle below).
5 Replace the top cover when finished.
You will need a flat-bladed screwdriverto perform this procedure.
