Measurement Techniques
Common test setup
Most tests are performed at the front terminals as shown in Figure 8-1. Measure
the DC voltage directly at the (+) and (-) terminals on the front panel.

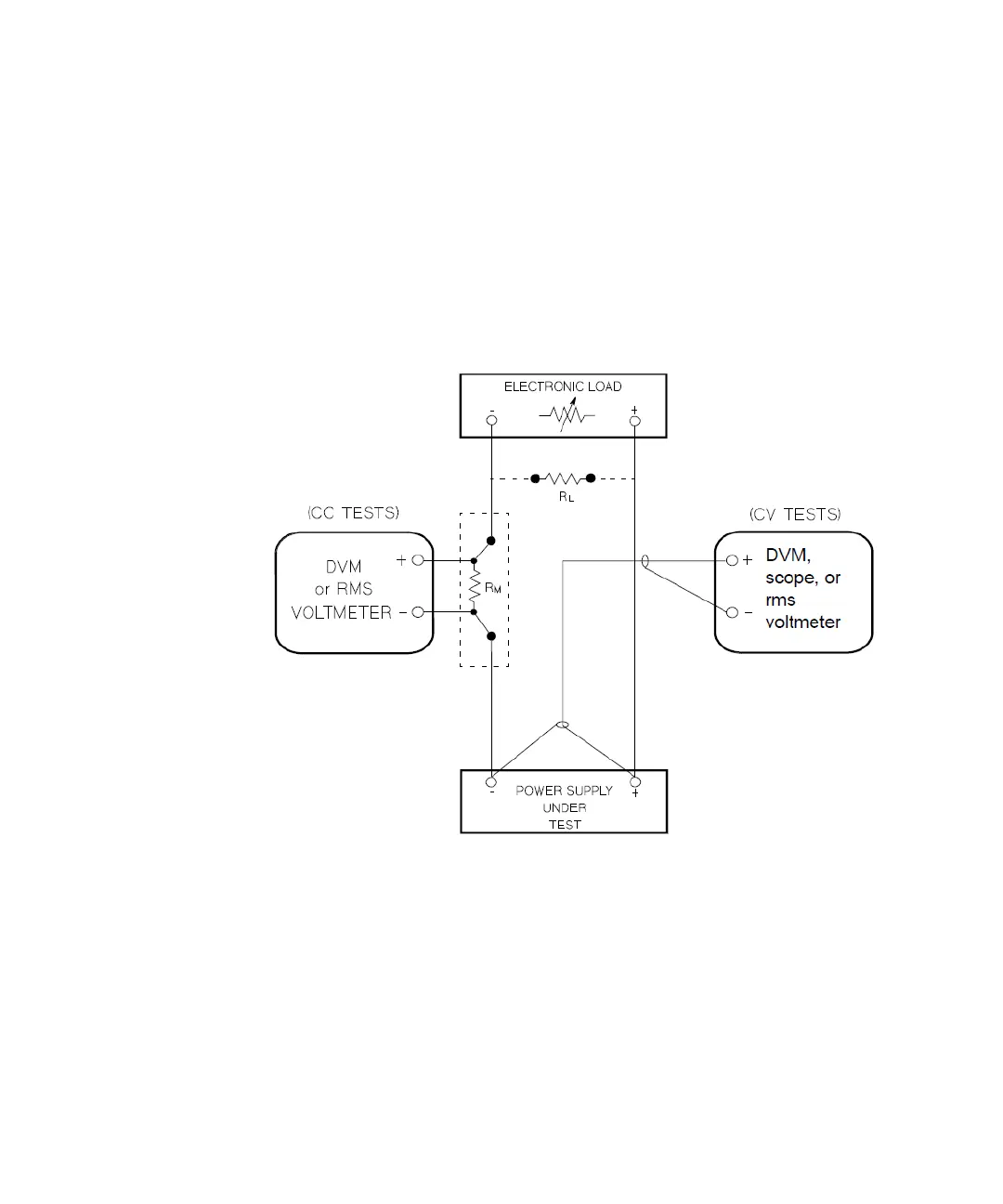

Figure 8-1 Performance verification test setup
