Getting Started 1
Keysight E364xA User’s and Service Guide 51
Connect one end of the sensing lead shield to the chassis ground ( ) only.
Opening a sensing lead causes the power supply’s output voltage to decrease at
the load leads. Observe the polarity when connecting the sensing leads to the
load.

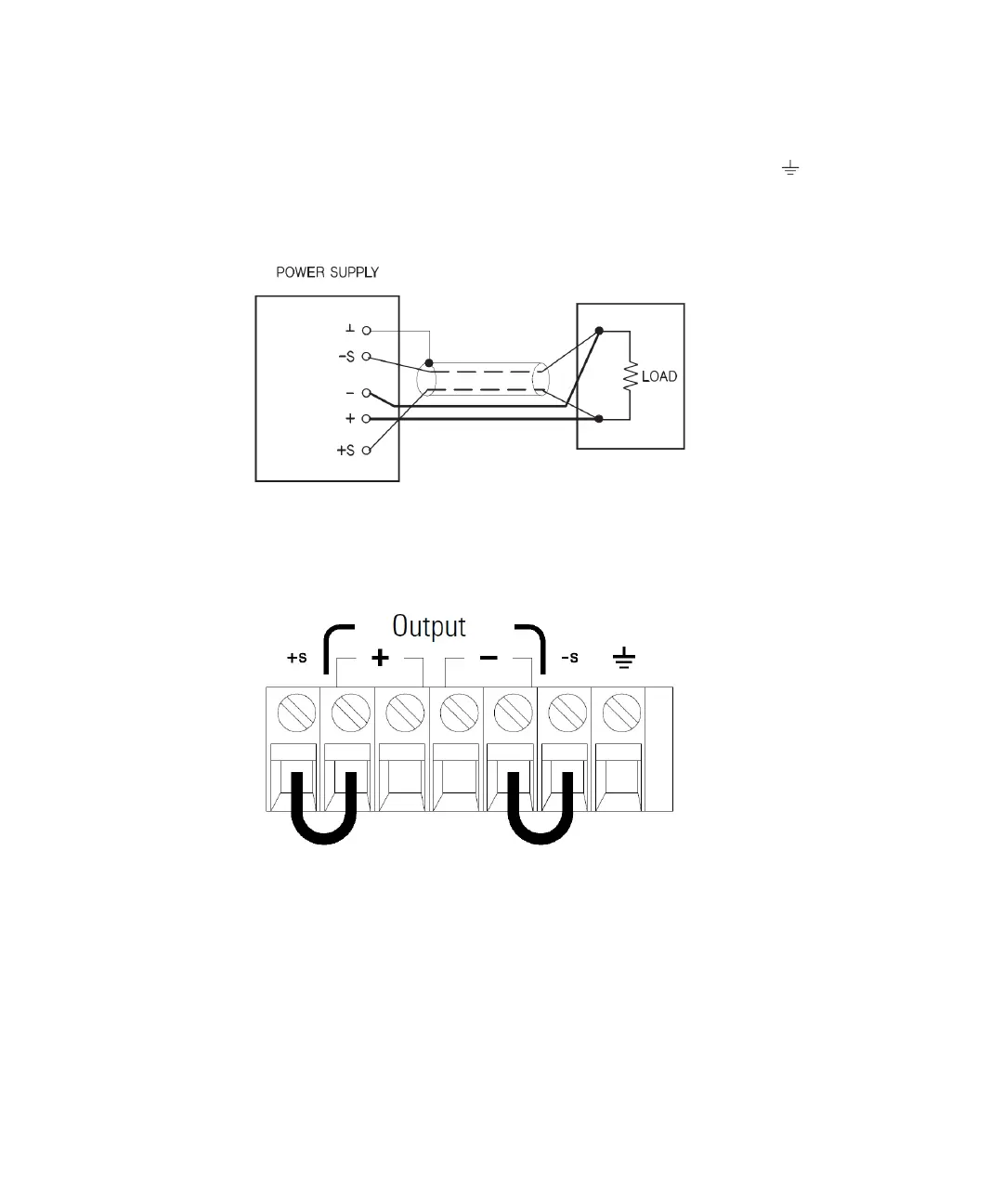

Figure 1-7 Remote voltage sensing connections
Figure 1-8 Local sensing connections
