Keysight Technologies FieldFox N9912A Service Guide

Keysight FieldFox Handheld Analyzers Service Guide 127
Repair and Replacement Procedures
Removing and Replacing the Case Group Parts
5. Refer to Figure 7-15. Position the rear case on top of the front case and to
one side as shown.
6. Place the speaker side panel in the groove in the front case being careful
not to damage the gasket.
7. Position the strap handle over the two dowel pins as shown.

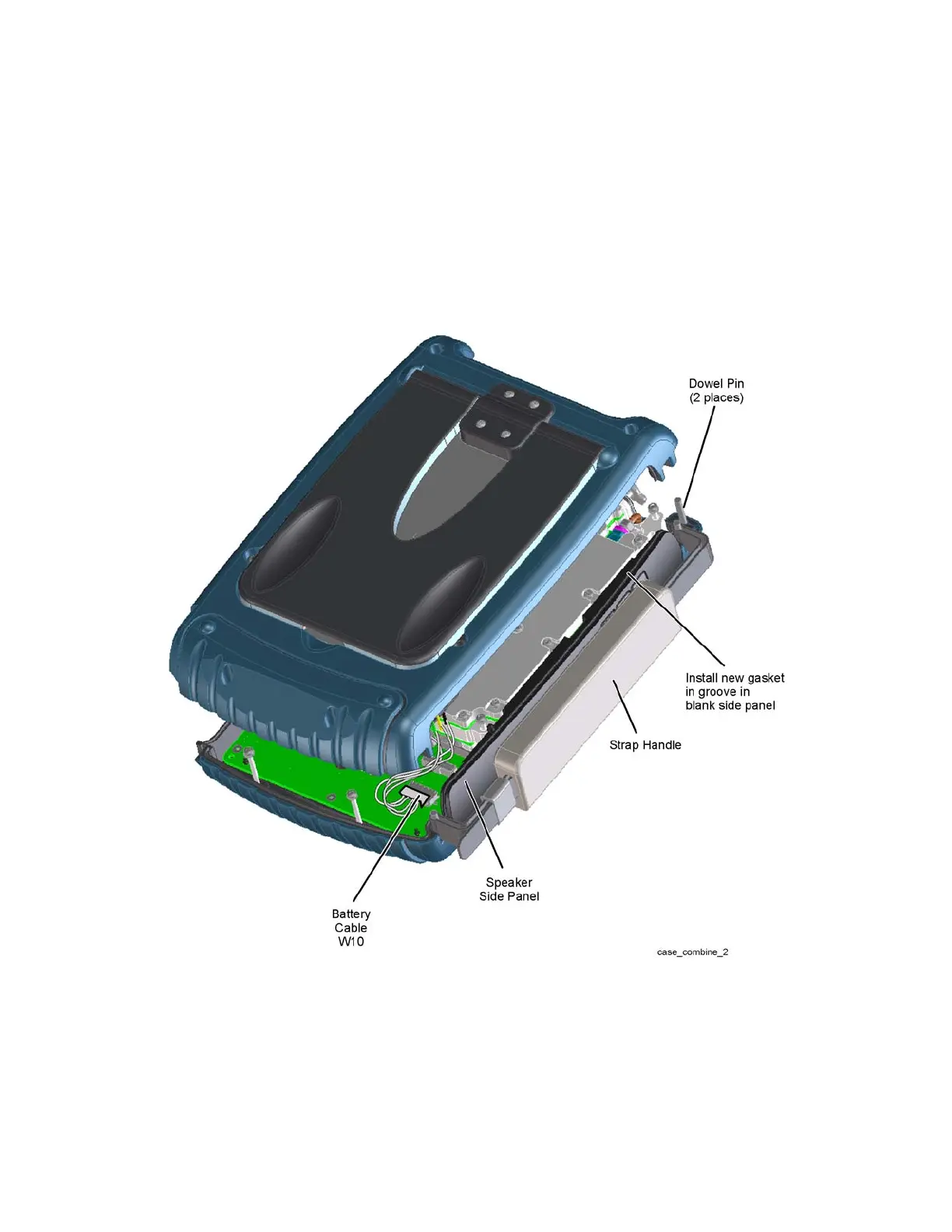

Figure 7-15 Combining the Front and Rear Cases (2)
