28 Installation Note N5222-90131
Description of the Upgrade
Installation Procedure for the Upgrade
-

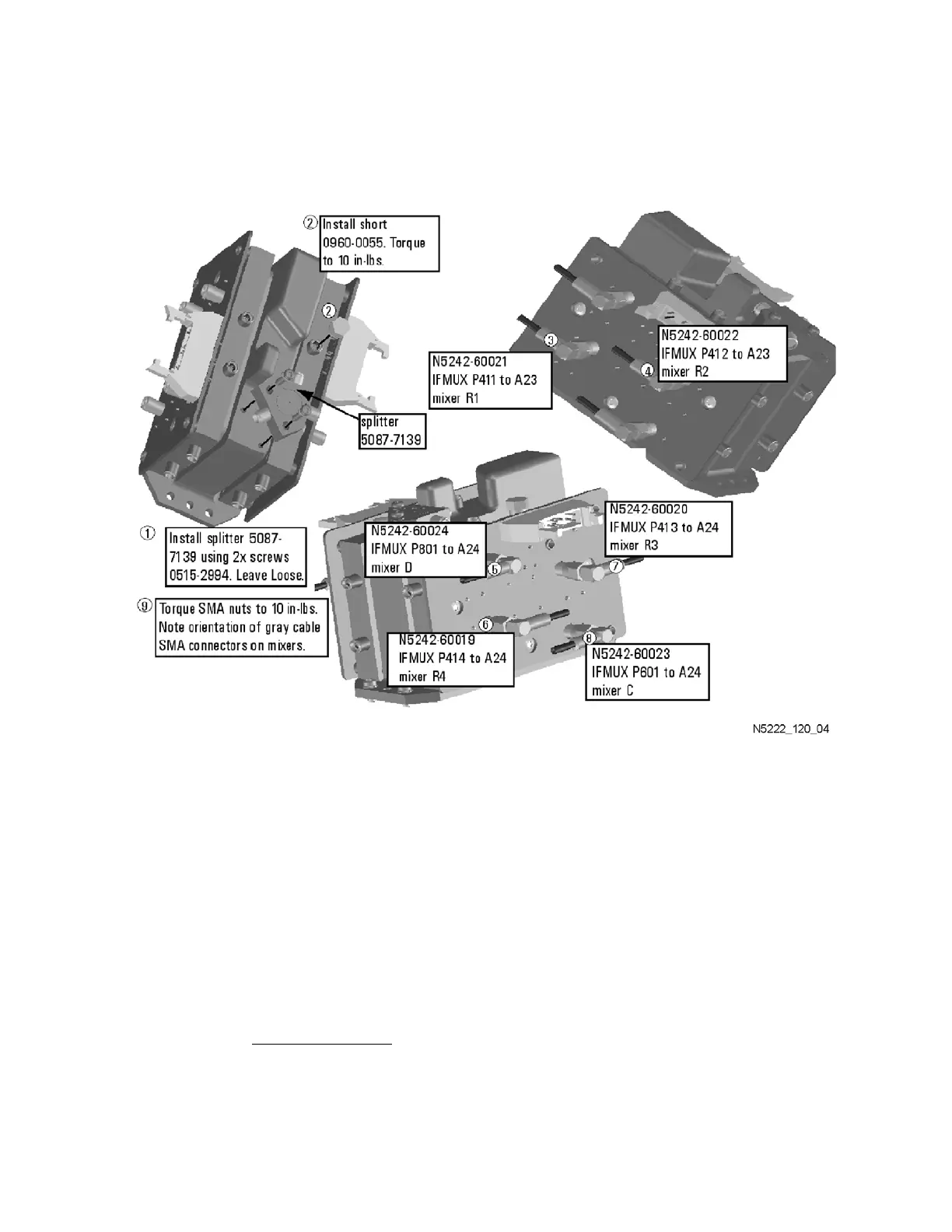

Figure 8-1 A24 Mixer Brick Brick Assembly (cont.) – (0960-0055, 5087-7139
1
,
N5242-60019, N5242-60020, N5242-60021, N5242-60022, N5242-60023,
and N5242-60024)
1. The A22 splitter (5087-7139) and N5222-20007, N5222-20008, and N5222-20009 cables are only used with
a legacy HMA26.5 p/n: 5087-7765. If your PNA has a new N5240-60101 assembly installed, then set aside
these parts as spares for use in other PNAs with the older HMA26.5 installed or discard. If you are unclear
which HMA26.5 assembly your PNA has installed, refer to Figure 1 on page 7.
To Next Page
