42 Installation Note N5222-90131
Description of the Upgrade
Installation Procedure for the Upgrade
-
Step 27. Assemble the A5 and A8 26.5 GHz Source 1 and 2
Assemblies
Follow the six instructions shown in Figure 22.

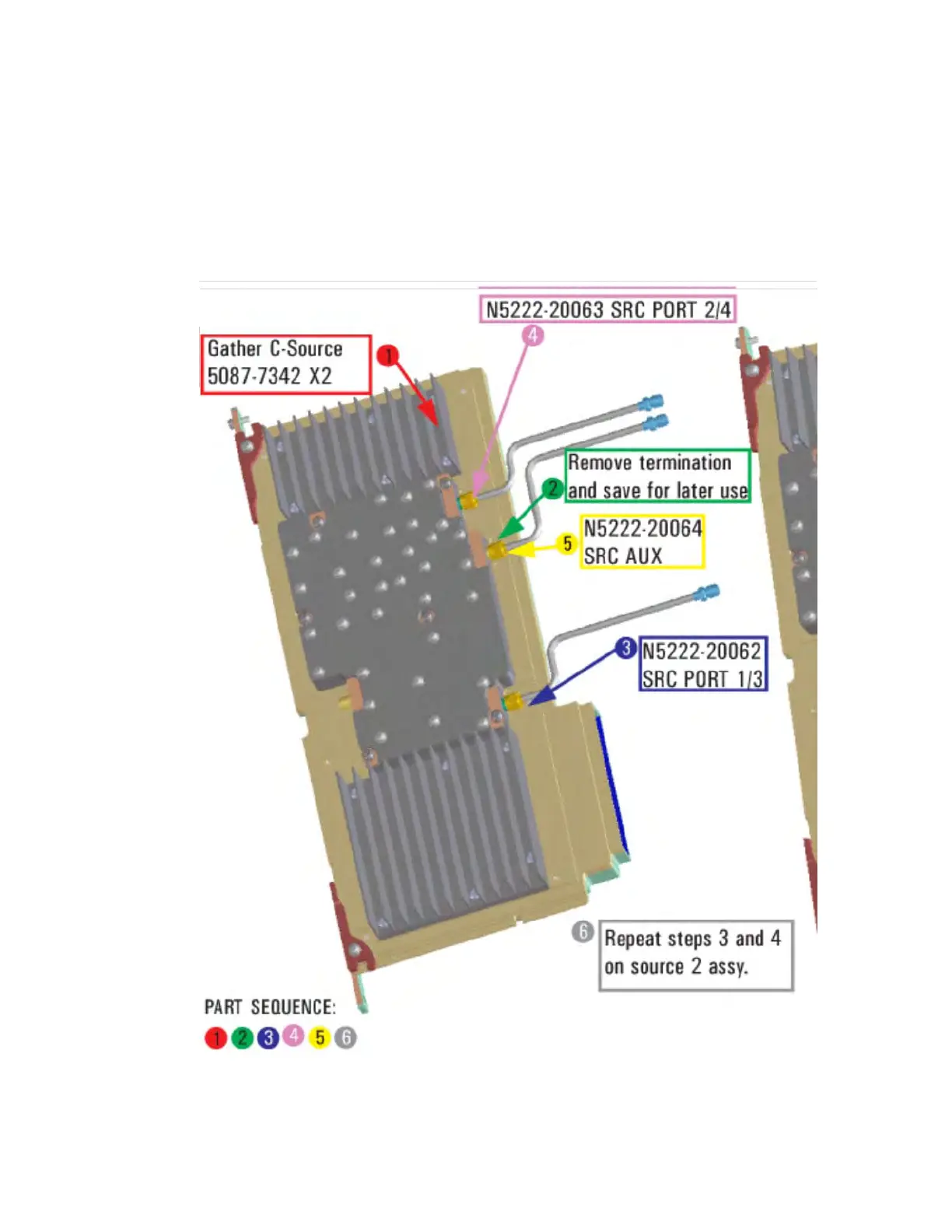

Figure 22 A5 Source 1 Assembly (5087-7342, N5222-20062, N5222-20063, and
N5222-20064)
To Next Page
