32 Installation Note N5222-90131
Description of the Upgrade
Installation Procedure for the Upgrade
-
Step 19. Install A35/A36 Source and A43/A44 Receiver Attenuators
Refer to Figure 12 for this step of the procedure. New parts are listed in Table 2
on page 11. Use a T-10 TORX driver to tighten all screws.

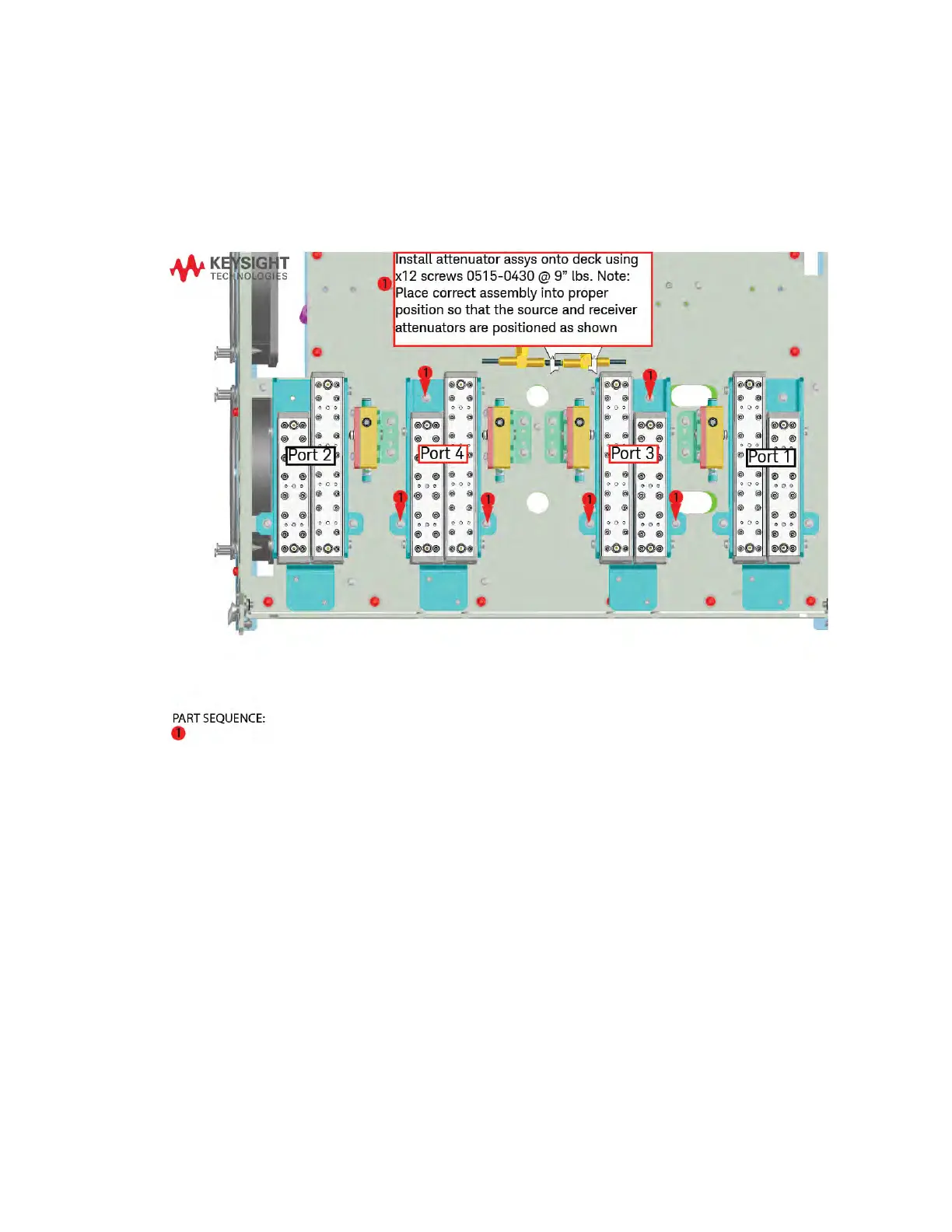

Figure 12 Install the Receiver and Source Attenuators (0515-00430 (x4))
