36 Installation Note N5222-90131
Description of the Upgrade
Installation Procedure for the Upgrade
-
Step 22. Assemble the A29 - A32 Test Port Coupler Assemblies
1. Remove the A29 test port 1 coupler and A32 test port 2 coupler from the
PNA. For instructions, click the Chapter 7 bookmark, “Removing and
Replacing the A29 - A32 Test Port Couplers” in the PDF Service Guide
1
.
2. Using pliers, remove the adhesive bumper on the A29 test port 1 coupler
and on the A32 test port 2 coupler.
3. Follow the two instructions shown in Figure 16. New parts are listed in
Table 2 on page 11 of this document.

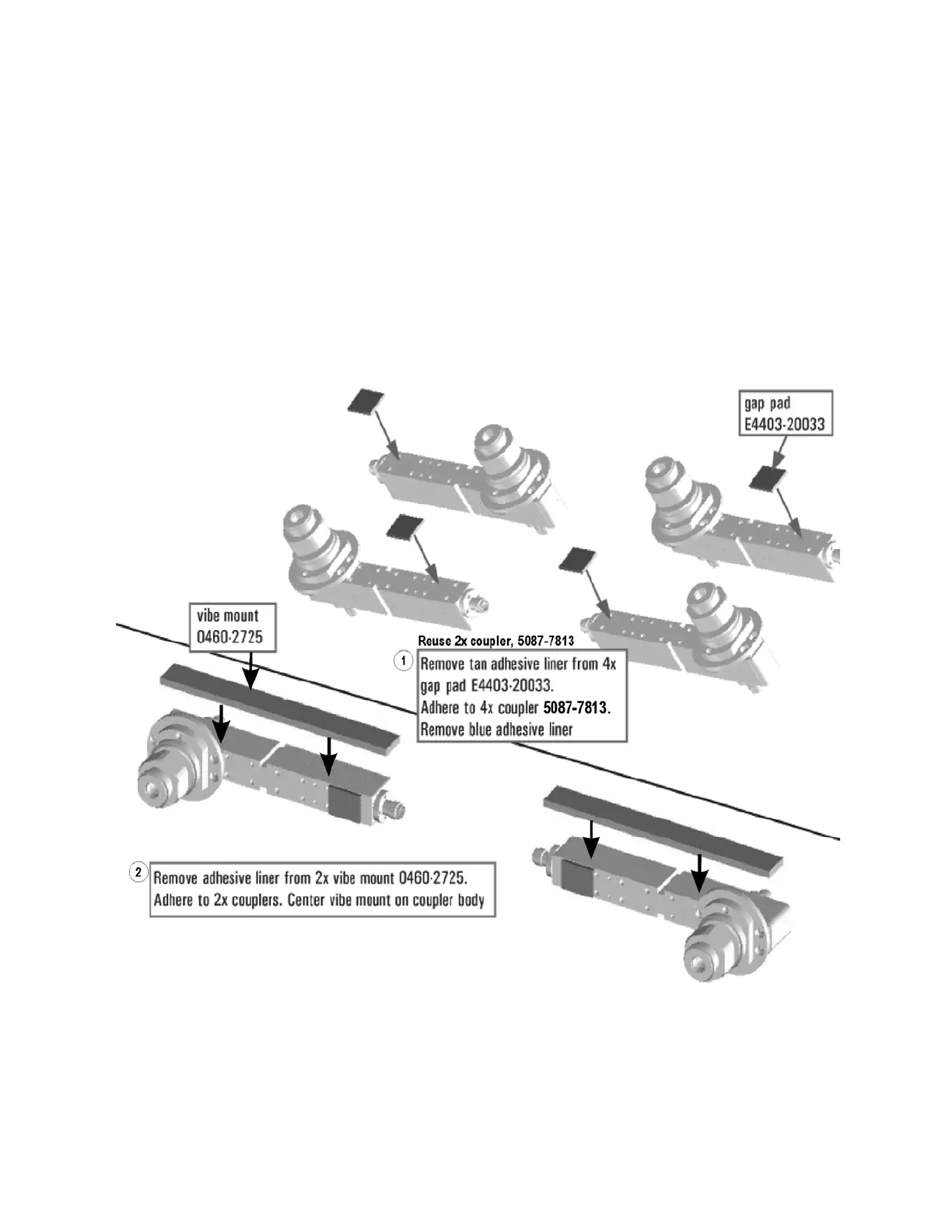

Figure 16 A29 - A32 Test Port Coupler Assembly (E4403-20033, 0460-2725, and
5087-7813)
