Keysight N5991 HDMI Frame Generator User Guide 15
Using the Software 3
On the “ConnectionDialog” window (see Figure 4),
1 From the ‘Signal Generator’ drop-down options under “Instrument
Type”, select an AWG configuration:
• ‘M8195A - single module’: if a single M8195A hardware is used.
• ‘M8195A - two module’: if two M8195A and a M8197A sync module
hardware are used.

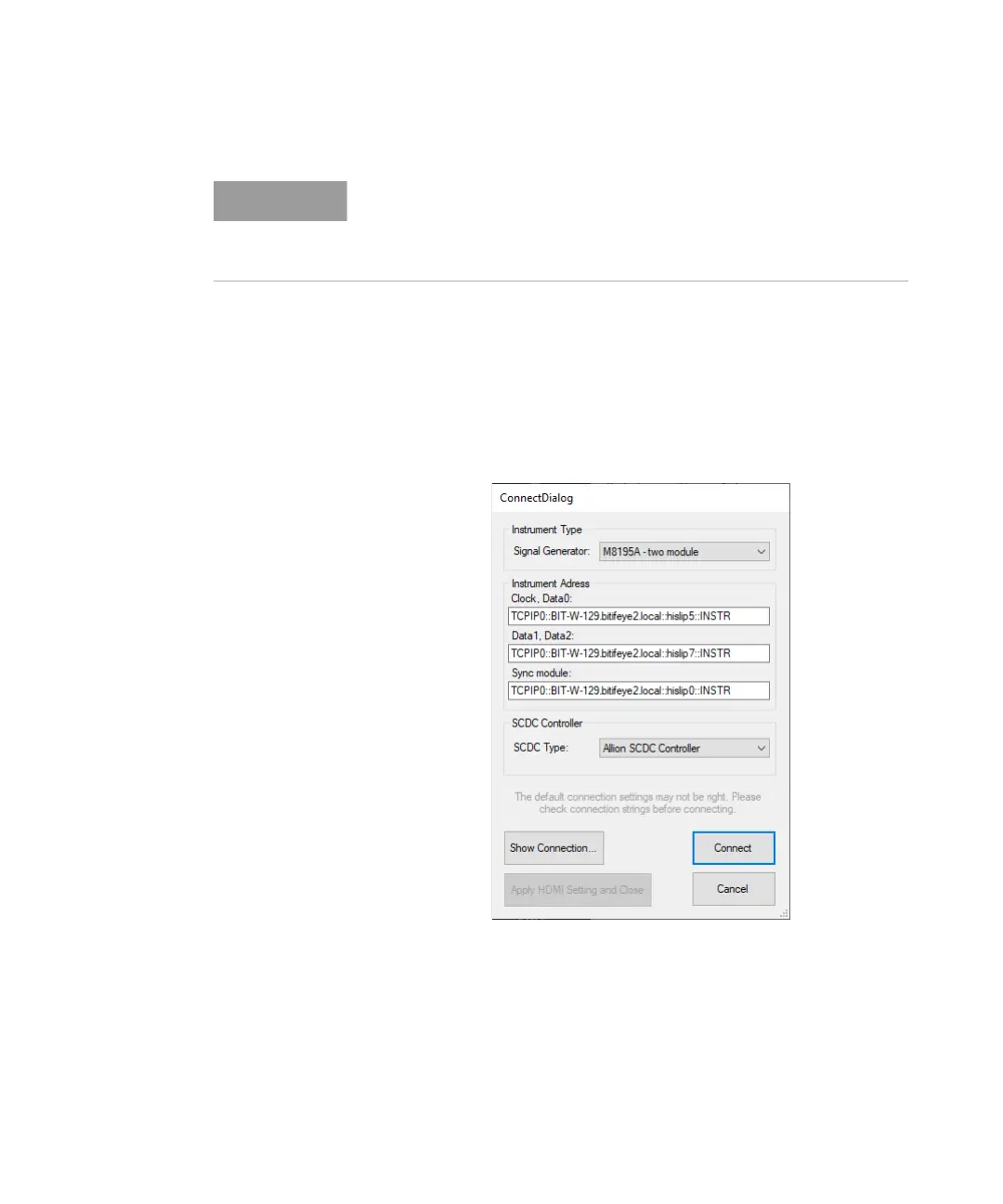

Figure 4 Connect Dialog window
2 Specify the IP address of the AWG Host PC. This is the PC, which is
connected to the hardware and runs the AWG firmwares. The default
entry “localhost” is valid, if the HDMI Frame Generator software is
residing on the controller PC of the AWG system.
Suitable cable connections between the PC and the instruments are
required, such as LAN or USB-to-GPIB connections. The specific
connection is reflected in the name-string of the instrument. For details
on naming conventions, refer to the Keysight IO Libraries.
