32 Keysight N5991 HDMI Frame Generator User Guide
3 Using the Software

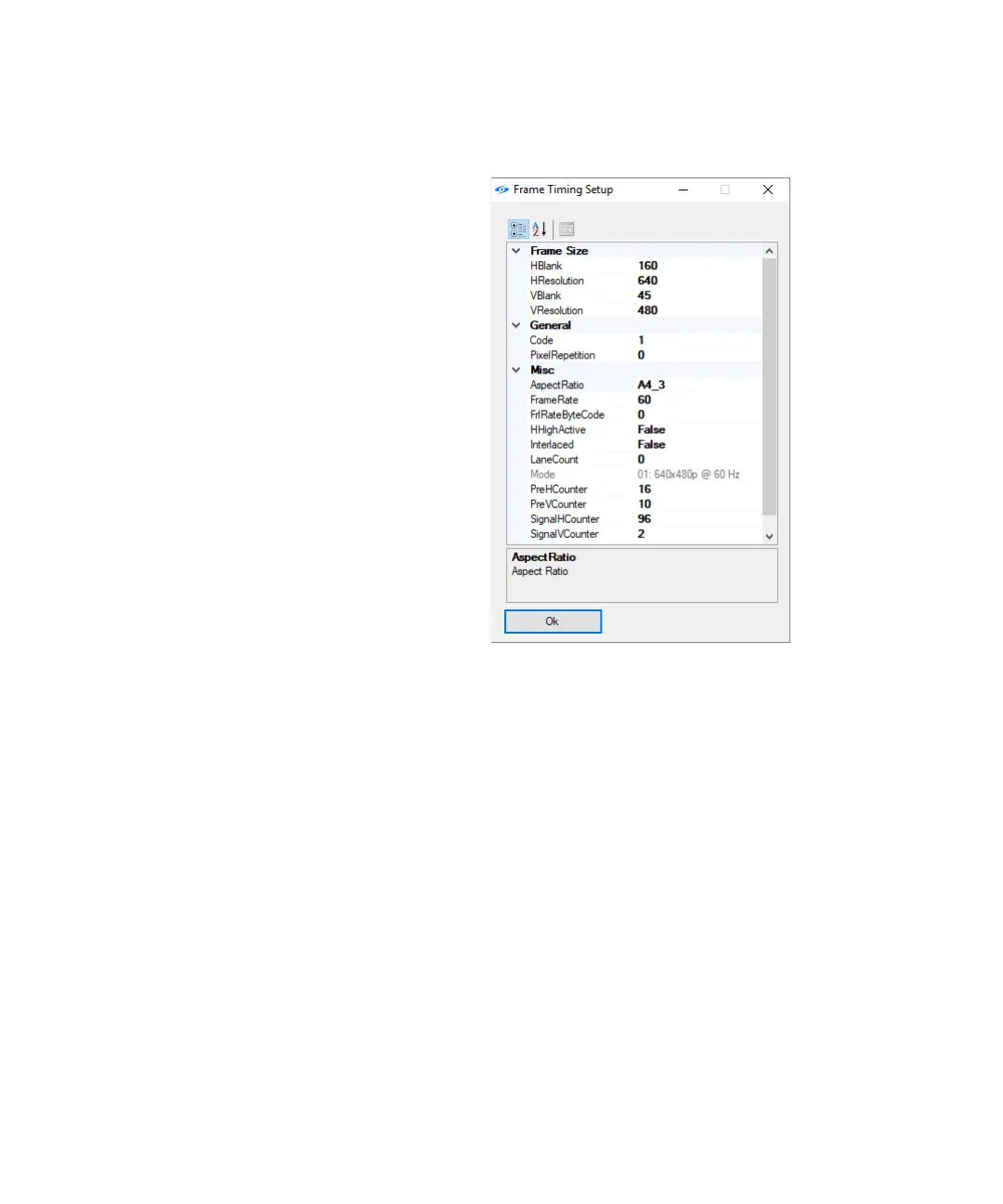

Figure 17 Frame Timing Setup dialog
Use this window for actions such as to stress your device by applying
deviations from the standard format or to generate your own video pattern
by starting with a reasonably similar standard pattern.
Some of the parameters influence the data rate. If a data rate deviation is
to be generated, you may achieve so by changing the Frame Rate. The
data rate can be computed by:
DataRate = (Hblank + Hresolution) × (Vblank + Vresolution) × Bits per pixel
× Frame Rate
Click “Ok” to apply the selected parameters or simply close this window to
exit without saving changes.
