Installation Note N9030-90077 11
Option BBA, Analog Baseband I/Q Inputs Upgrade Kit
Top Brace Removal
1. Refer to Figure 4. To remove the top brace (1), use the T-10 driver to remove the twelve
panhead screws (3) (0515-0372) attaching the top brace to the chassis. Remove and discard
the twelve screws (fourteen screws with Option B1X) (4) (0515-1946) attaching the top brace
to the boards.

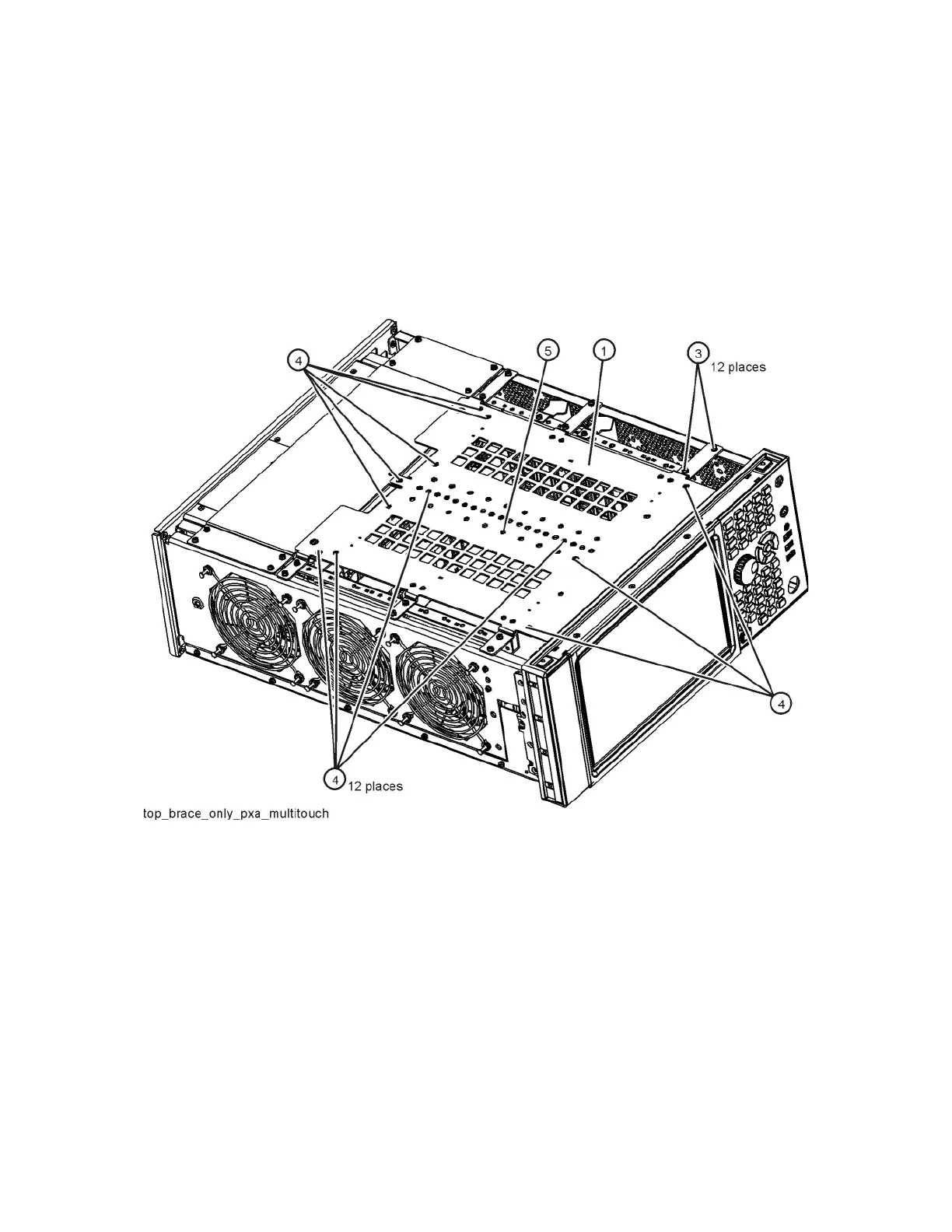

Figure 4 Top Brace Removal
