Option BBA, Analog Baseband I/Q Inputs Upgrade Kit
RF Bracket Removal
1. Refer to Figure 5. Remove the RF bracket (1 ) by removing the thirteen screws (2)
(0515-0372) using the T-10 driver.

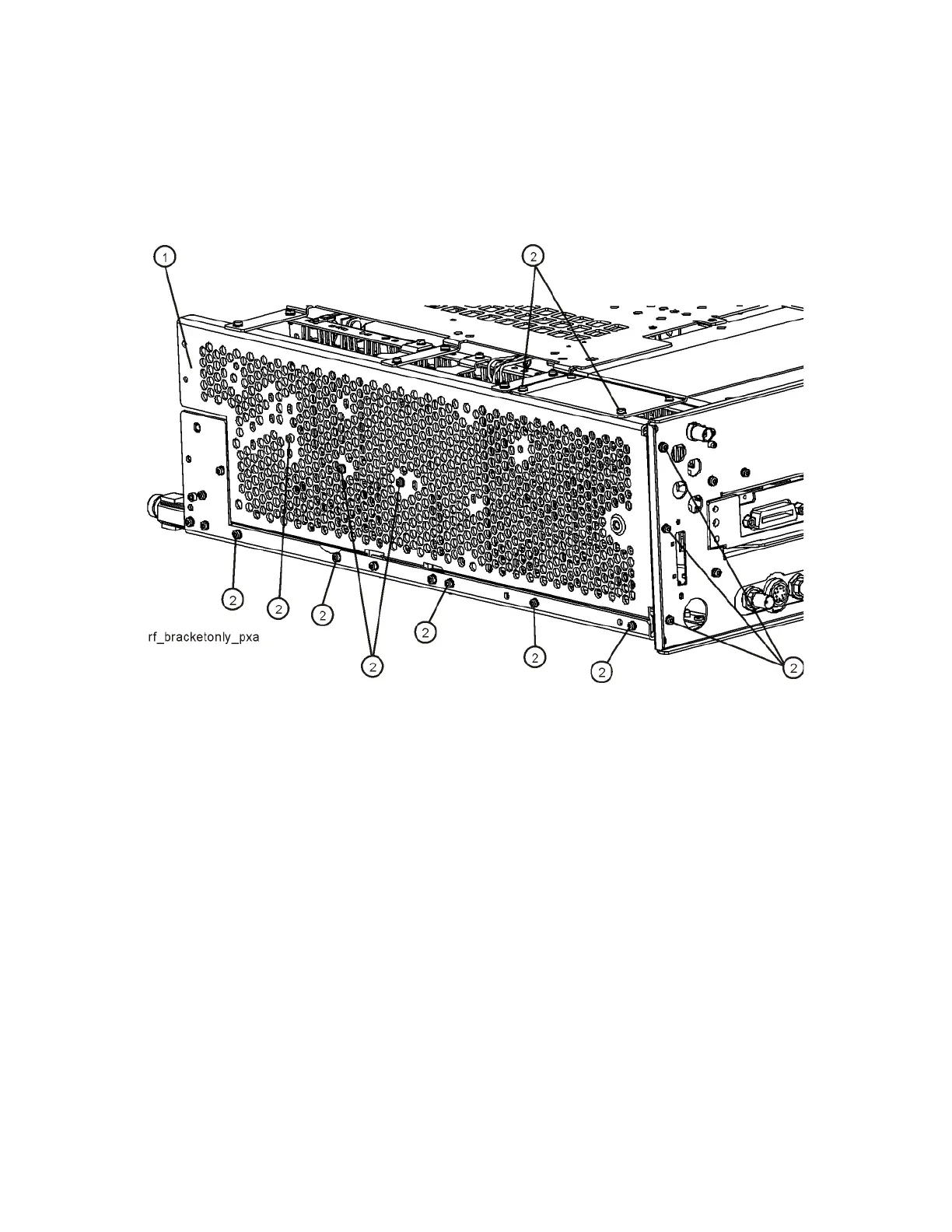

Figure 5 RF Bracket Removal
