1-14 Keysight B1500A Configuration and Connection Guide, Edition 6
B1500A Product Configuration
Furnished accessories

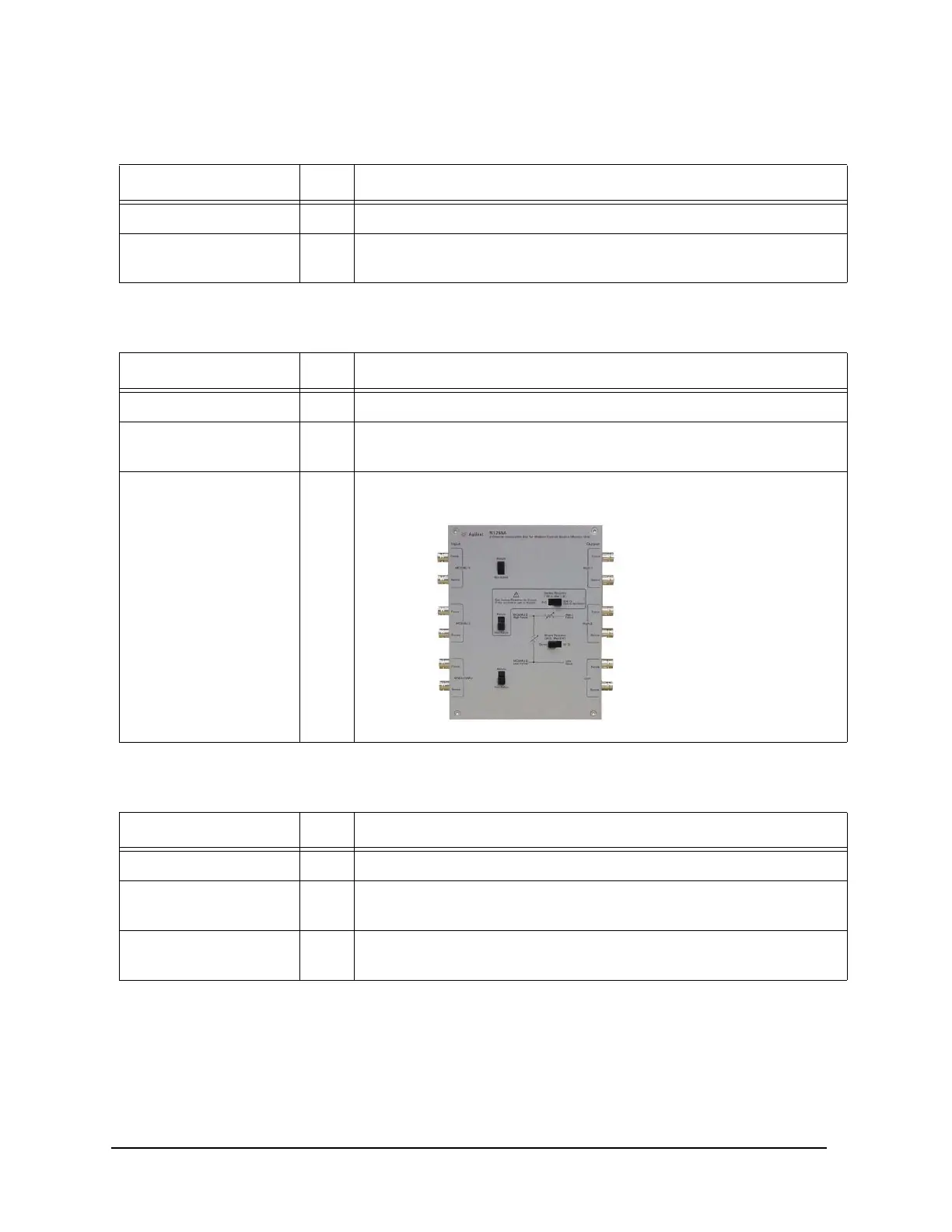

Table 1-11 B1500A-A17 Add-on Package - High resolution source monitor unit
Table 1-12 B1500A-A1A Add-on Package - 50 s Pulse Medium current source monitor unit
Table 1-13 B1500A-A1B Add-on Package - 50 s Pulse Medium current source monitor unit
Description Qty. Note
HRSMU 1 Installed High resolution source/monitor unit (HRSMU)
Triaxial cable 2 Cable length 1.5 m or 3.0 m is specified by the option B1500A-015 or
B1500A-030.
Description Qty. Note
MCSMU 1 Installed Medium current source/monitor unit (MCSMU)
Triaxial cable 2 Cable length 1.5 m or 3.0 m is specified by the option B1500A-015 or
B1500A-030.
Connection box 1 N1255A Connection box for B1514A Medium Current Source/Monitor unit
to make connection to DUT easy.
Description Qty. Note
MCSMU 2 Installed two Medium current source/monitor units (MCSMU)
Triaxial cable 4 Cable length 1.5 m or 3.0 m is specified by the option B1500A-015 or
B1500A-030.
Connection box 1 N1255A Connection box for B1514A Medium Current Source/Monitor unit
to make connection to DUT easy.
