2-8 Keysight B1500A Configuration and Connection Guide, Edition 6
B1500A Accessories
Accessories for the B1500A
2.1.4 WGFMU accessories
• WGFMU-to-RSU cables - have D-sub connection. Two cables are required because
the WGFMU has 2 channels. The 16493R-801 adapter is required and mounted on a
shielding box to make connection to the RSU in the shielding box. Then the 60 cm and
2.4 m cables (16493R-001 and 002) or the 60 cm and 4.4 m cables (16493R-001 and
005) are required instead of the 1.5 m, 3 m, or 5 m cable.
• Sync connection cable - is required when two WGFMUs are used. One cable is
furnished with B1530A.
• Magnet stand - is optional stand for RSU. The magnet stand is useful for fixing RSU.
• Triaxial cables (SMU to RSU)- can be used to connect SMU module to RSU. The
16495H-001 or 16495J-001 connector plate is required and mounted on a shielding box
to make connection to the RSU in the shielding box. Then the 80 cm or 40 cm triaxial
cable is additionally required.

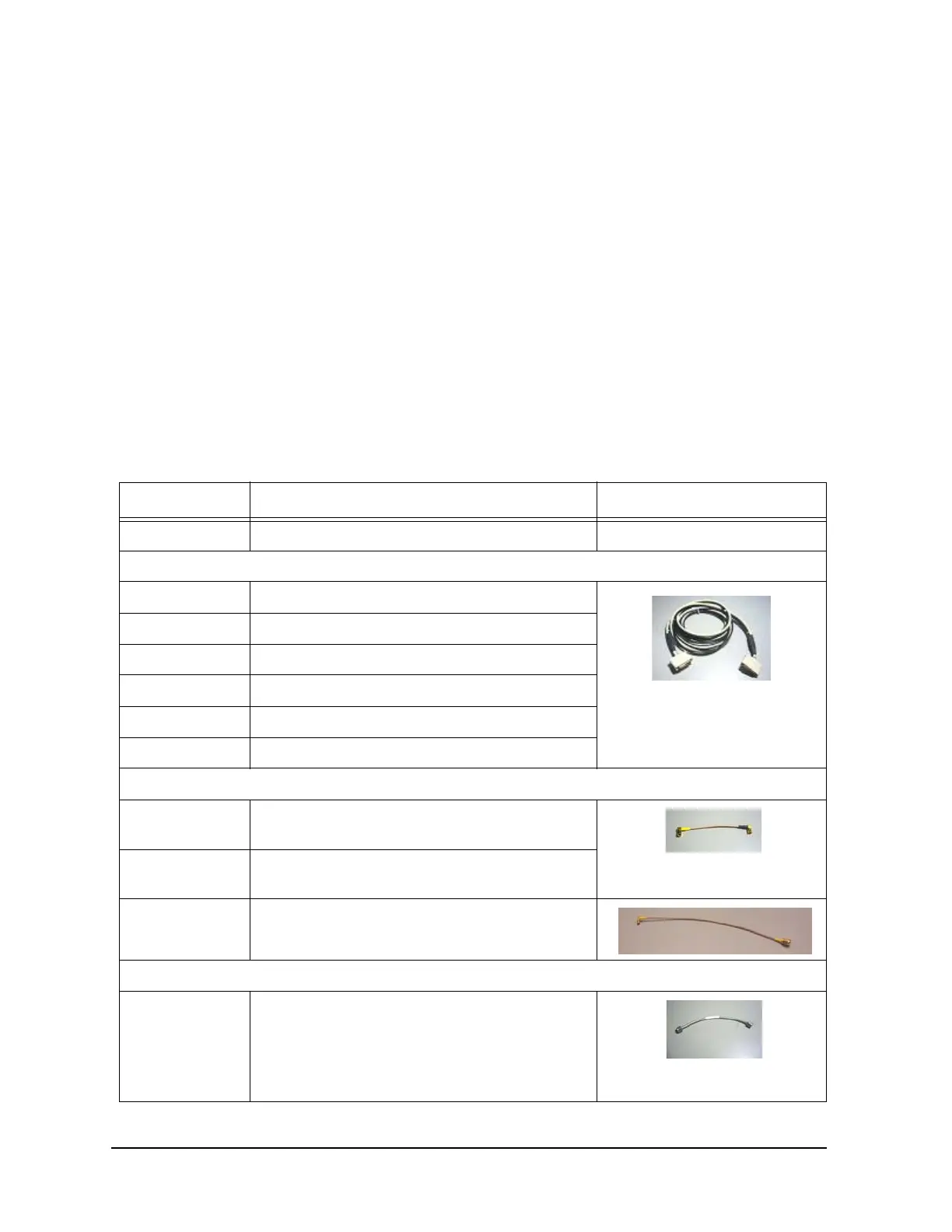

Table 2-4 WGFMU accessories for B1500A semiconductor device analyzer
Model/Option Description Additional Information
16493R WGFMU cables and accessories
WGFMU to RSU cable
16493R-001 WGFMU-to-RSU cable, 0.6 m
16493R-002 WGFMU-to-RSU cable, 2.4 m
16493R-003 WGFMU-to-RSU cable, 3 m
16493R-004 WGFMU-to-RSU cable, 5 m
16493R-005 WGFMU-to-RSU cable, 4.4 m
16493R-006 WGFMU-to-RSU cable, 1.5 m
Cable option for connection with DC probe
16493R-101 SSMC short-open cable for current return path, 50
mm
16493R-102 SSMC short-open cable for current return path, 75
mm
16493R-202 SMA-SSMC cable between RSU and DC probe, 200
mm
Cable option for connection with RF probe
16493R-302 SMA-SMA cable between RSU and RF probe, 200
mm
