4-2 Keysight B1500A Configuration and Connection Guide, Edition 6
Connection and Ordering Examples
Two terminal device
4.1 Two terminal device
This chapter describes prober or Fixture connection and ordering example of Keysight
B1500A Semiconductor Device Analyzer for 2 terminal devices.
4.1.1 General IV characterization

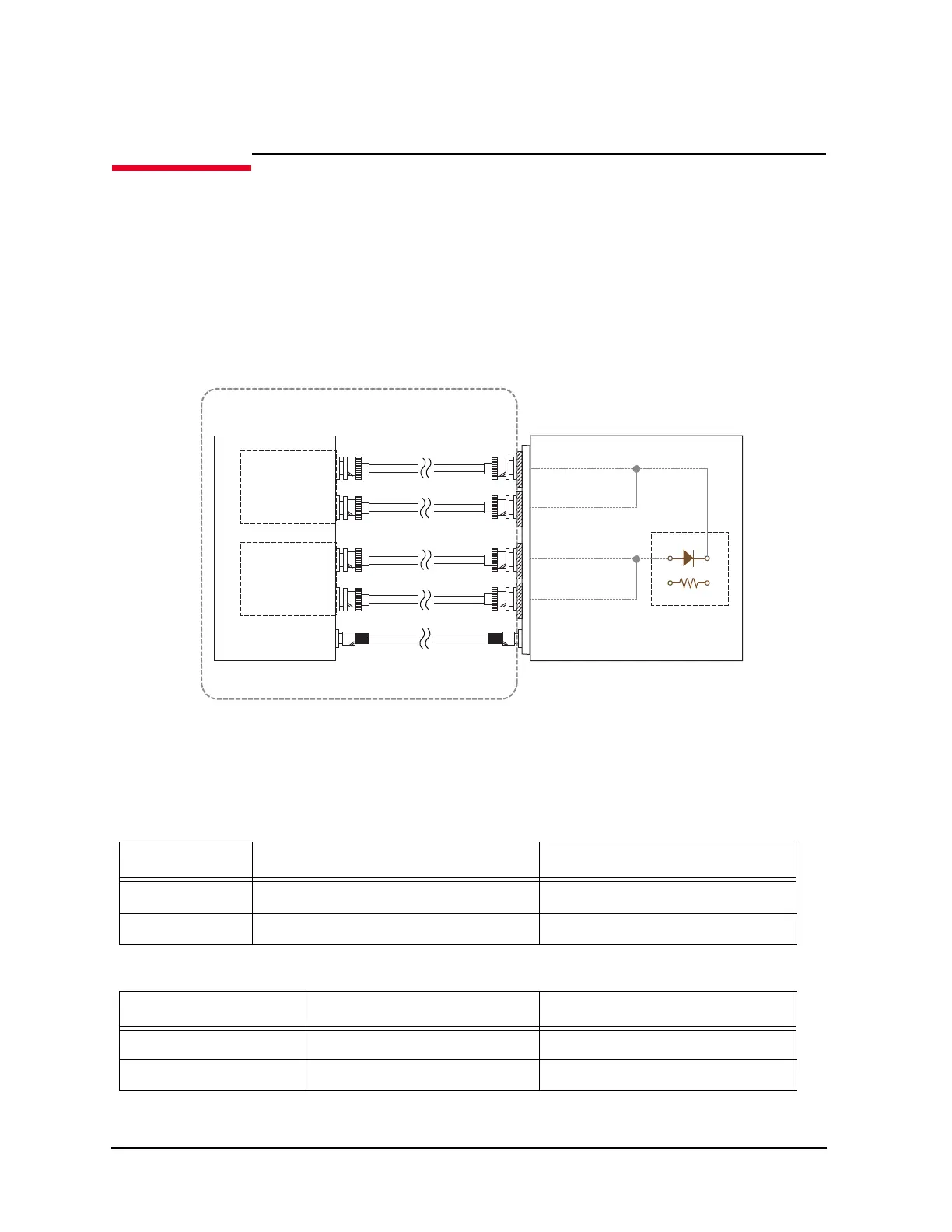

Figure 4-1 General IV configuration
Table 4-1 Target device and application
Table 4-2 Key specification
Device Application Note
Diode I
F
-V
F
, I
R
-V
R
, Breakdown
Resister R-I, R-V 2-wire or 4-wire
Item Range Note
Maximum I/V range 100 mA / 100 V
Minimum I/V resolution 10 fA / 0.5 V
MPSMU
Triaxial cable
Sense
Force
B1500A
MPSMU
Sense
Force
Interlock cable
Connector plate
Fixture/Prober
DUT
AC
Interlock
Coverage of Configuration Example
