1-36 Keysight B1500A Configuration and Connection Guide, Edition 6
B1500A Product Configuration
B1542A Pulsed IV package for B1500A
The B1542A does not contain Oscilloscope and Pulse generator. Prepare supported
Oscilloscope and Pulse generator shown in the following table.
Table 1-29 Oscilloscope supported by Keysight B1542A
Table 1-30 Pulse generator by Keysight B1542A

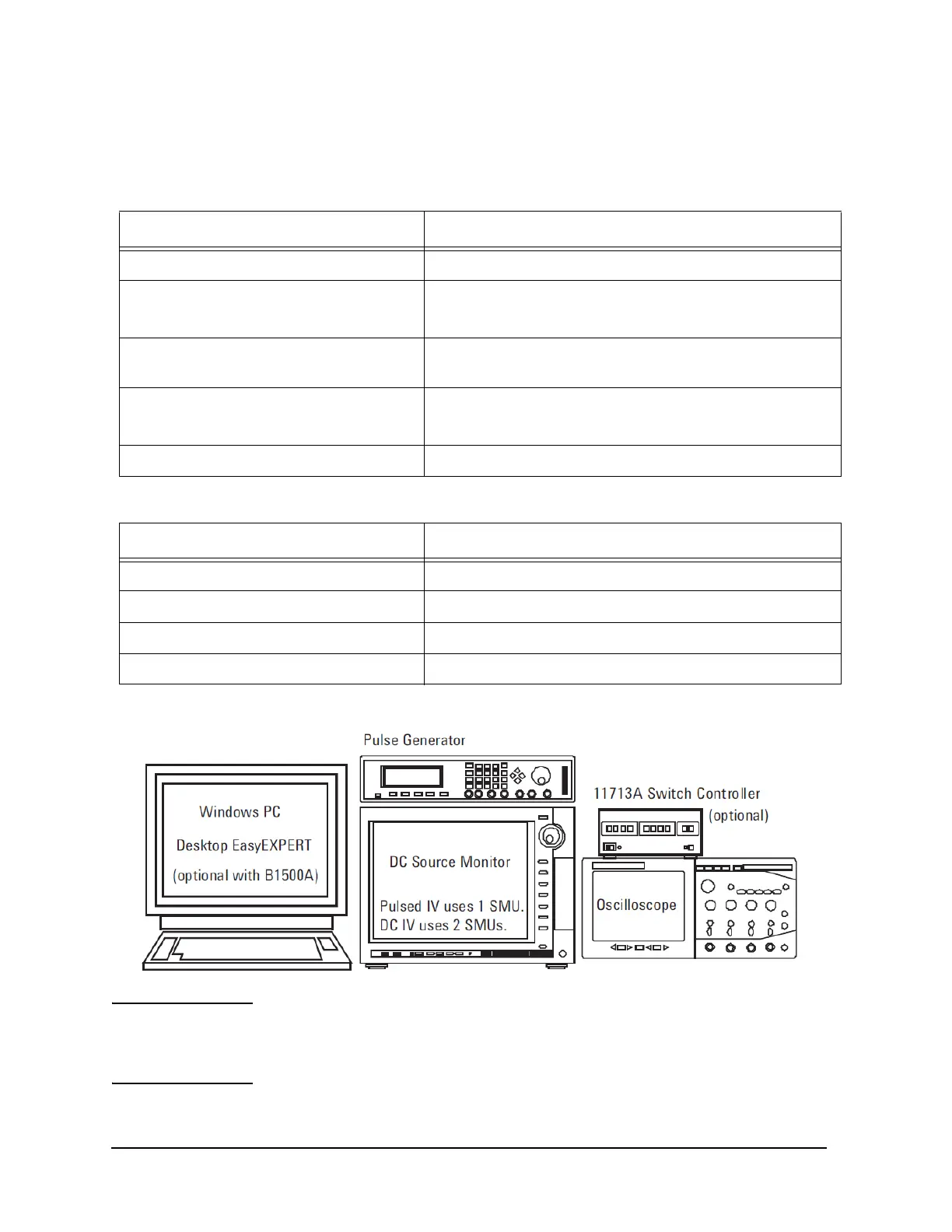

Figure 1-3 Pulsed IV Test system by using Keysight B1542A
NOTE The pulsed IV system uses 3 channels of SMU. So Keysight E5262A/E5263A 2-channel
SMU is not recommended. However it may be used if you change the connections
manually. Because the pulsed IV measurement uses one SMU and the DC IV measurement
uses only 2 ea. of SMU.
Description Remarks
54853A/54854A/54855A 2.5/4/6 GHz, 4 channels, 20 GSa/s
DSO8000A series
MSO8000A series
600 MHz or 1 GHz, 4 channels, 4 GSa/s
DSO80000B series 2/3/4/6/8/10/12/13 GHz, 4 channels, 40 GSa/s when using 1 or
2 channels, 20 GSa/s when using all channels
DSO9104A/9254A/9404A
MSO9104A/9254A/9404A
1/2.5/4 GHz, 4 channels, 20 GSa/s
DSO90254A/90404A/90604A 2.5/4/6 GHz, 4 channels, 20 GSa/s
Description Remarks
81101A 50 MHz output, standalone
8110A with 81103A 150 MHz output, modular
81110A with 81111A 165 MHz output, modular
81150A 120 MHz output, standalone
