To view and save the analysis results
Click the Plot... softkey to open the Frequency Response Analysis dialog box's tab
for viewing the analysis results in a Bode plot.

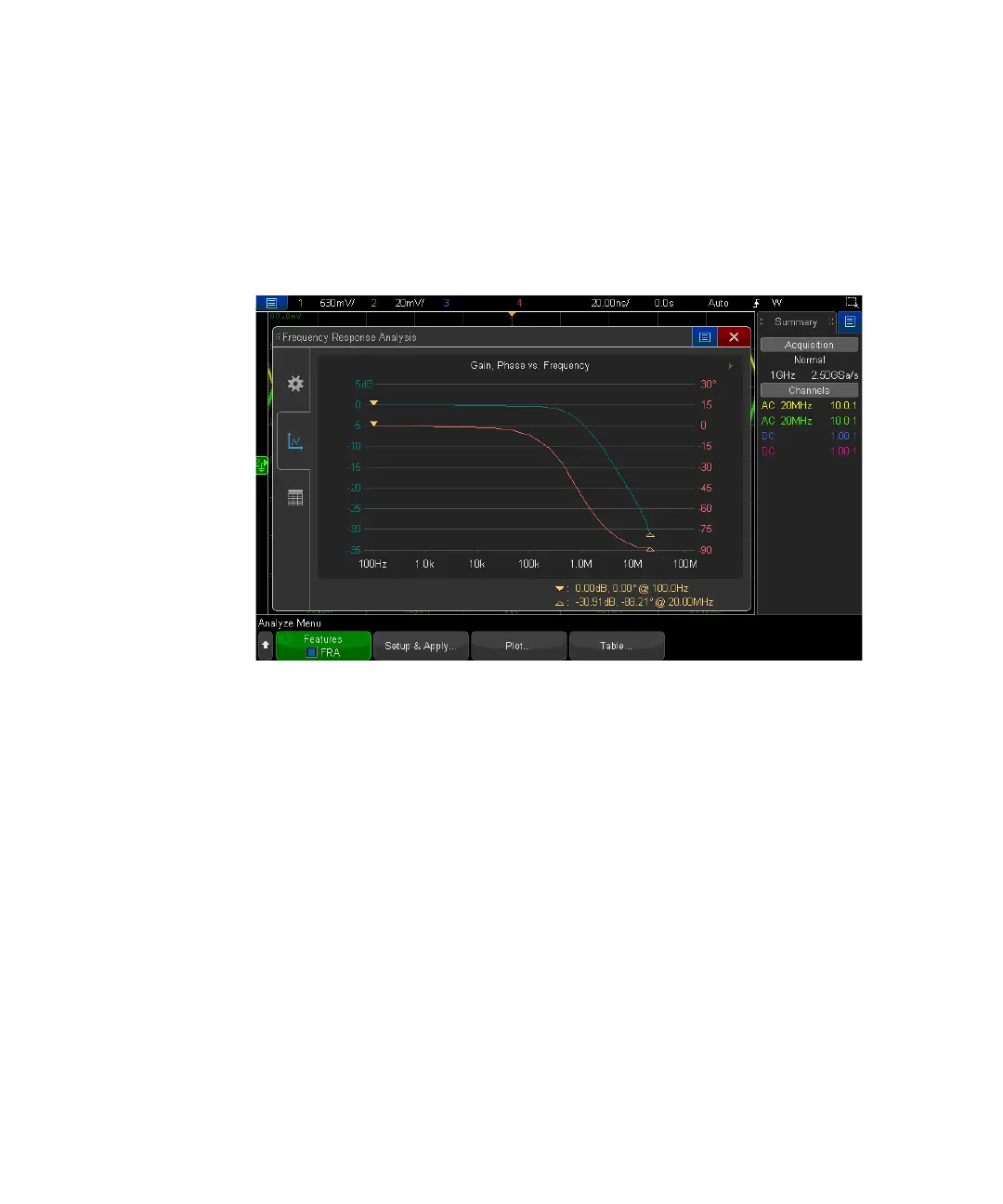

The plot shows both gain and phase measurements versus frequency. There are
two markers that can be dragged to view actual values along the plot. There is a
control in the upper right corner for adjusting the scale/offset of the plots or
autoscaling.
Click the Table... softkey to open the Frequency Response Analysis dialog box's tab
for viewing the analysis results in table form.
