4 When you are ready to create the new arbitrary waveform, press Apply & Edit.
The new waveform is created and the Edit Waveform Points menu is opened.
See “Editing Existing Arbitrary Waveforms" on page 307.
Note that you can also create a new arbitrary waveform by capturing another
waveform. See “Capturing Other Waveforms to the Arbitrary Waveform" on
page 311.
Editing Existing Arbitrary Waveforms
Using the
Touchscreen to
Edit Existing
Waveforms

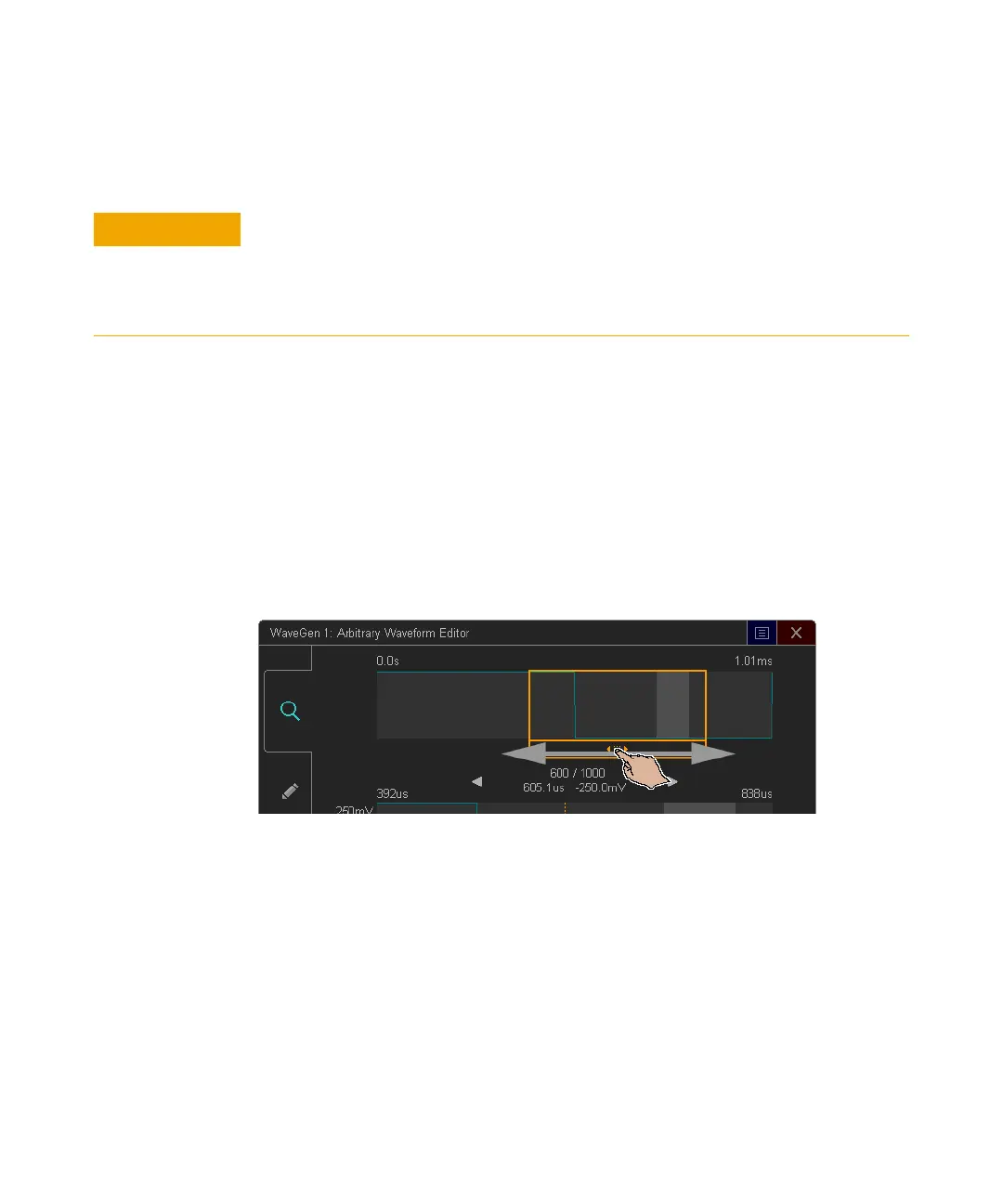

To select a point, touch or drag in the upper, full waveform display:
For fine points selection, touch the previous point or next point arrows:
When you create a new arbitrary waveform, the existing arbitrary waveform definition is
overwritten. Note that you can use the [Save/Recall] key and menu to save arbitrary
waveforms to one of four internal storage locations or to a USB storage device, and you
can recall them later. See “To save arbitrary waveforms" on page 328 and “To
recall arbitrary waveforms" on page 333.
