Disturbance Analyzer (Click) Measurements
Making a Measurement

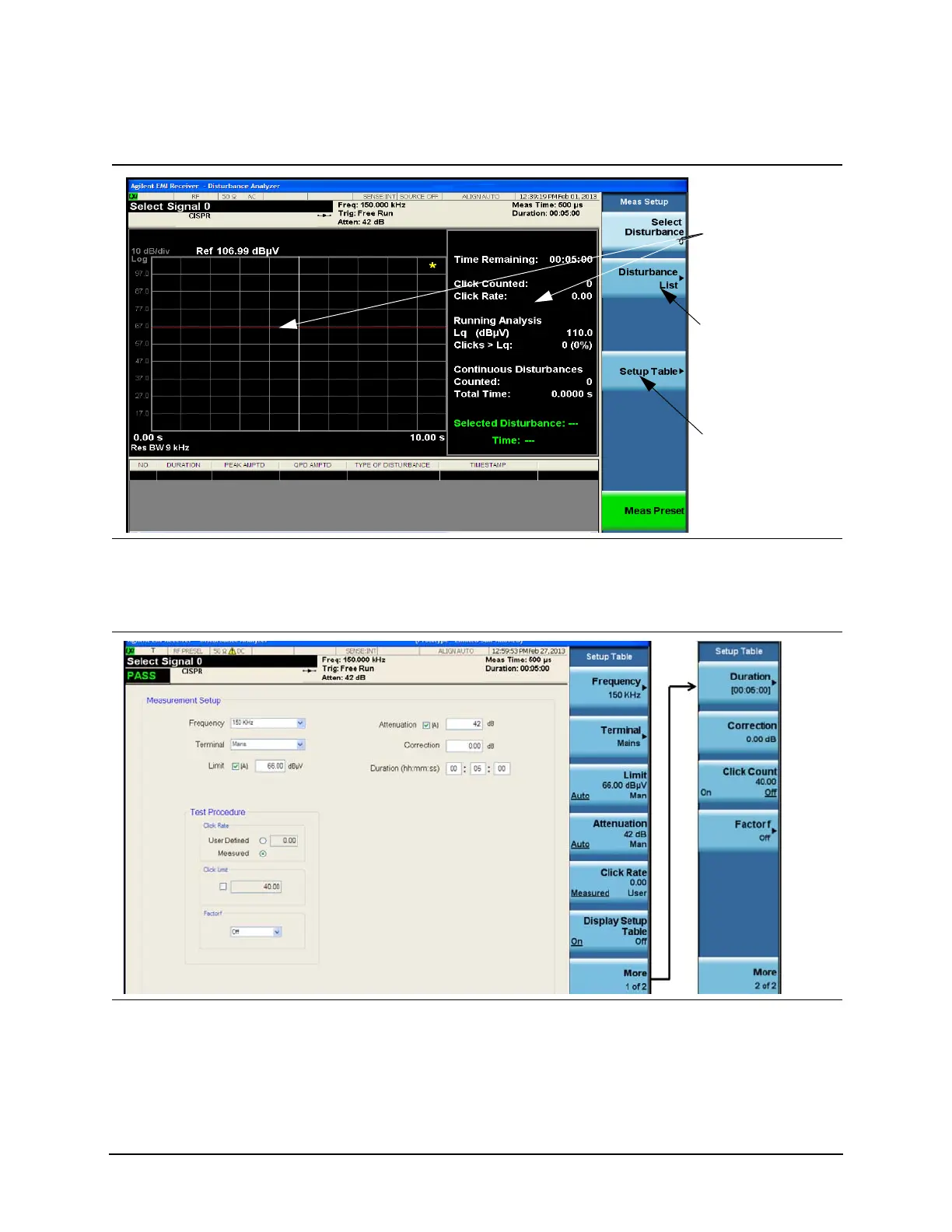

From this display
you can:
—View the status
of a data collection
in progress.
—Access the
navigation and
editing features of
the disturbance
list.
—Access the
measurement setup
table
4 Access the Setup
Table to configure a
Click measurement
a. Press Setup Table This table enables you to configure the
measurement with all of the parameters
needed to measure Clicks to the
appropriate limit.
NOTE The MXE allows you to either make measurements using autocoupled settings or manual settings.
When using autocoupled settings, the limits and input attenuation settings used during the
measurement are determined by your measurement frequency and terminal selection. These
autocoupled settings provide the appropriate limit values as given in
CISPR 14.
Step Action Notes
To Next Page
