Disturbance Analyzer (Click) Measurements

Making a Measurement

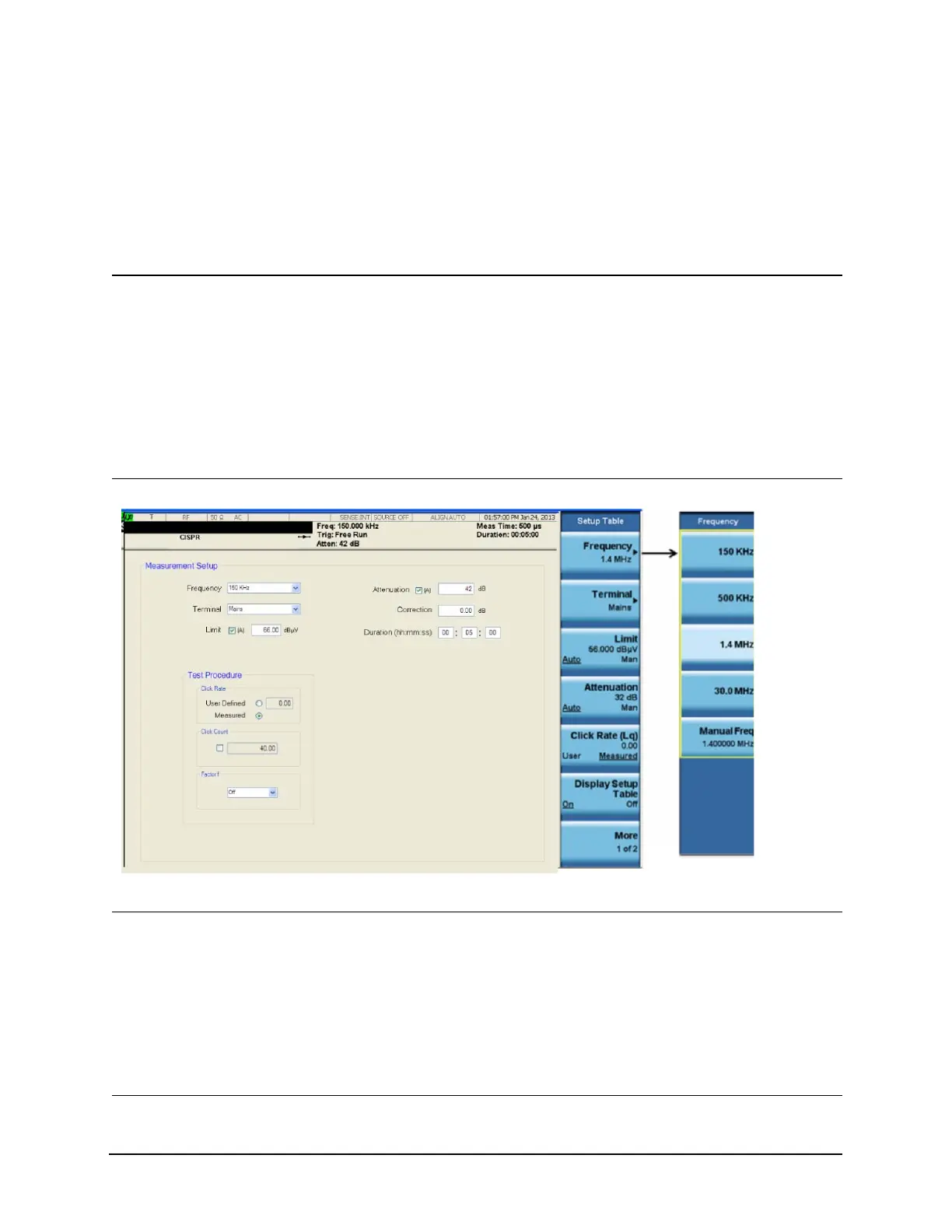

Setting up the Disturbance Analyzer measurement

The Click measurement can be set up using either the Setup Table screen, the menu

keys or a combination of both. The following procedure guides you through the

measurement using the menu keys.

Step Action Notes

1 Frequency selection a. Press Frequency and

select one of the

configured frequency keys

b. Press Frequency, Manual

Frequency and enter the

desired frequency using

the numerical keypad

TIP For more information see

“Frequency” on page 38.

NOTE When using autocoupled settings,

once you have selected a

frequency, the MXE will

automatically select the

appropriate limit and attenuation

settings for the currently selected

Terminals setting.

2 Terminal selection a. Press Terminal and select

one of the configured

terminal keys

For more information see “Terminal” on

page 38.

NOTE When using autocoupled settings,

once you have selected a Terminal

choice, the MXE will automatically

select the appropriate limit and

attenuation settings for the

currently selected frequency.
