Saving Data
Overview
Overview
Saving Data (Data Export) stores data from the current measurement to mass storage
files. The Export Menu only contains data types that are supported by the current
measurement.

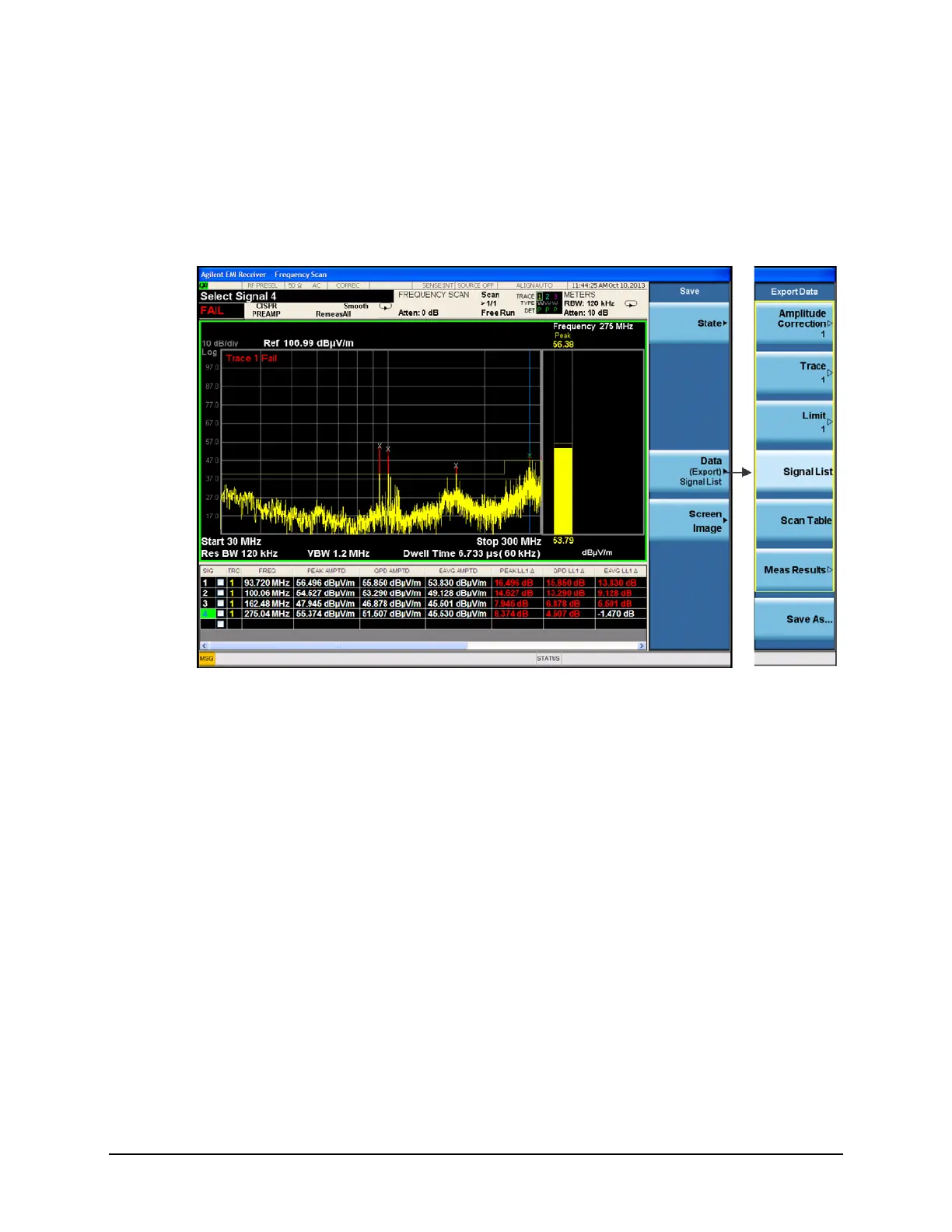

The following graphics displays the Save Data menu for the EMI Receiver Mode.
Note that some of the selections have "hollow points" that indicate they must be
pressed to activate and pressed again to view the selections on the next menu.
Since the commonly exported data files are in .csv format, the data can be edited by
you prior to importing. This allows you to export a data file, manipulate the data in
Excel (the most common PC Application for manipulating .csv files) and then import
it.
Selecting an Export Data menu key will not actually cause the exporting to occur,
since the analyzer still needs to know where you wish to save the data. Pressing the
Save As... key in this menu brings up the Save As dialog and Save As menu that
allows you to specify the destination file and directory. Once a filename has been
selected or entered in the Open menu, the export will occur as soon as the Save key
is pressed.
Export Data Menu Details
Amplitude
Correction A Corrections Data File contains a copy of one of the receiver
correction tables. Corrections provide a way to adjust the trace
display for predetermined gain curves. There are 6 Corrections
available for the Mode. Once a correction is selected, the key
