Power Requirements 6
Site Preparation 6-9
PDU Wiring Diagrams
PDU and AC Outlets
E9903G/E9902G Test System

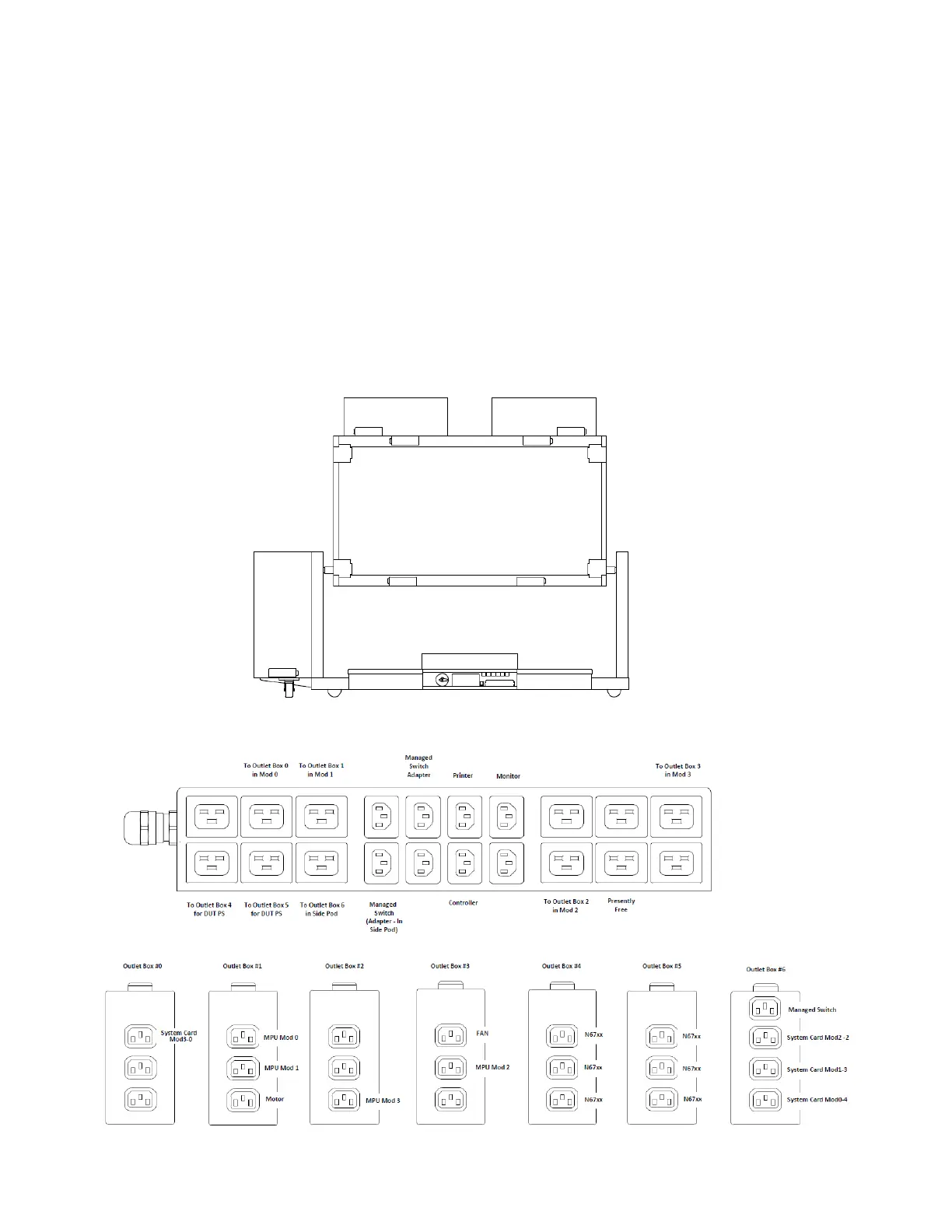

Figure 6-2 shows the locations of the AC outlets in an E9903G/E9902G test system
with side pod.
Figure 6-2 Location of AC outlets in E9903G/E9902G (rotated, rear view)
Figure 6-3 PDU and AC outlets for E9903G/E9902G
Outlet 4
PDU
Outlet 3Outlet 1
Outlet 2Outlet 0
Outlet 6
Outlet 5
