Tips for connecting and removing cables to/from M8053A Interference Source
Connecting the adapter to the cable M8053A-801
Tools required:
• 8710-1765 Torque 8 lb-in, 5/16 Inch
• 54964-03801 Counter wrench: 2 mm thick, dual-ended, fits 6 mm
and 7 mm
Table 8 Steps to connect / remove the cables

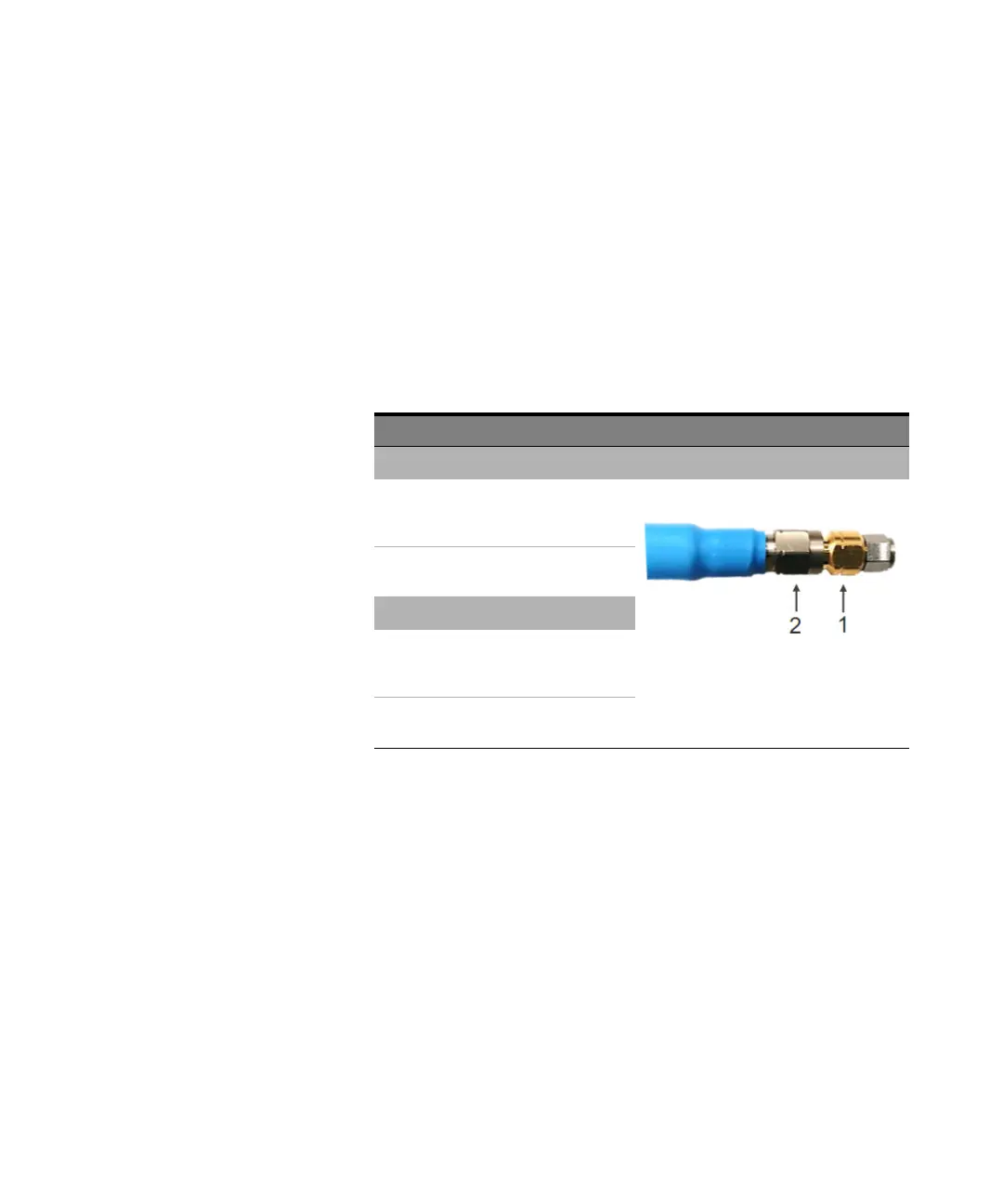

Steps to be performed Reference image of the cable
Connecting the cables
Use the 7 mm side of the 54964-03801
wrench to hold at position 1. Avoid turning
inner pin.
Use 8710-1765 wrench to torque at
position 2.
Removing the cables
Use the 7 mm side of the 54964-03801
wrench to hold at position 1. Avoid turning
inner pin.
Use 8710-1765 wrench to torque at
position 2.
