22
Measuring Multiple Signals
Comparing Signals on the Same Screen Using Marker Delta
Comparing Signals on the Same Screen Using Marker Delta
Using the analyzer, you can easily compare frequency and amplitude differences
between signals, such as radio or television signal spectra. The analyzer delta marker
function lets you compare two signals when both appear on the screen at one time.
In this procedure, the analyzer 10 MHz signal is used to measure frequency and
amplitude differences between two signals on the same screen. Delta marker is used
to demonstrate this comparison.

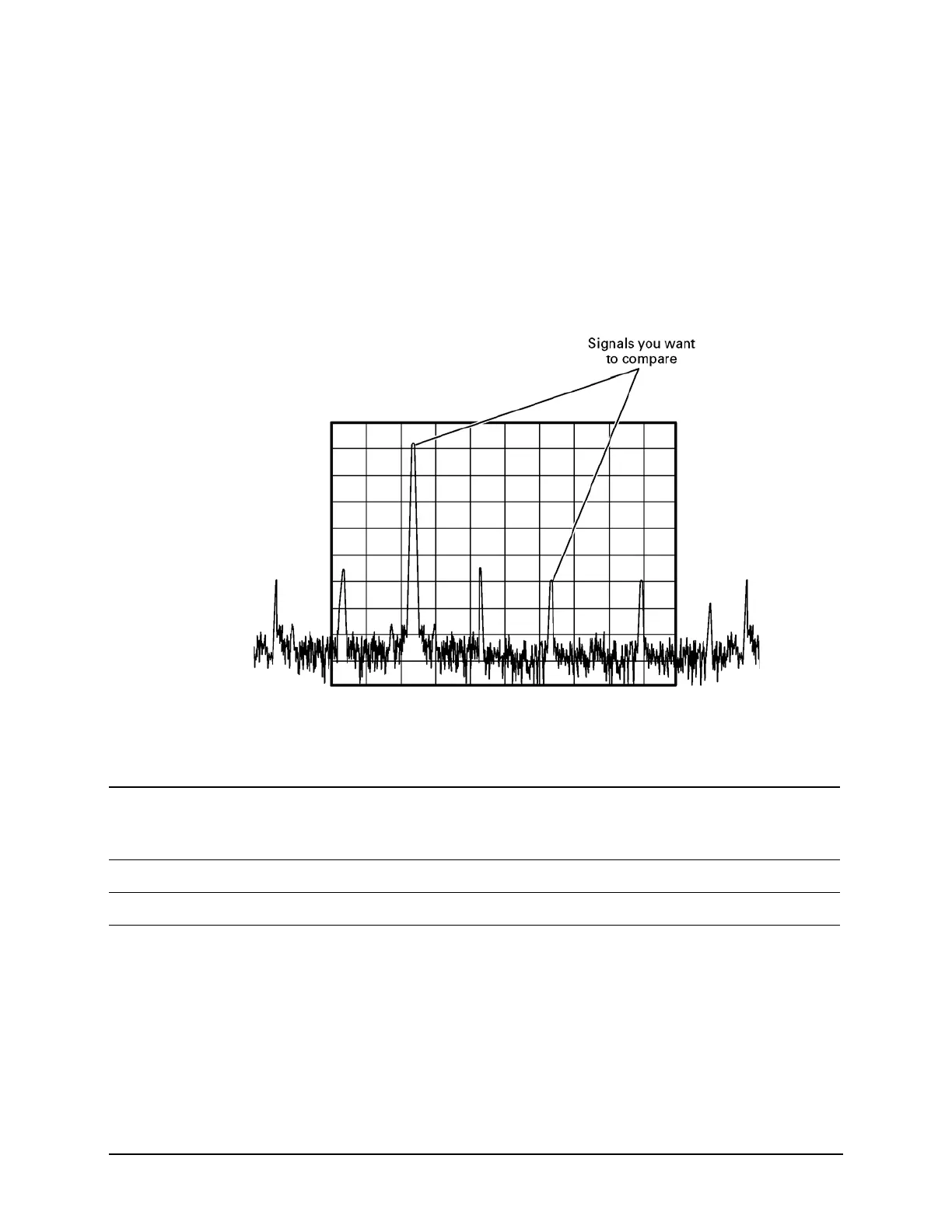

Figure 2-1 An Example of Comparing Signals on the Same Screen
Step Action Notes
1 Connect the 10 MHz OUT
from the rear panel to the
front panel RF input.
2 Select the mode. • Press Mode, Spectrum Analyzer.
3 Preset the mode. • Press Mode Preset.
4 Configure the analyzer
settings.
a. Press FREQ Channel, Center
Freq, 30, MHz.
b. Press SPAN X Scale, Span, 50,
MHz.
c. Press AMPTD Y Scale, Ref Level,
10, dBm.
This sets the analyzer center
frequency, span and reference
level to view the 10 MHz signal
and its harmonics up to 50
MHz.
To Next Page
