Keysight PNA-X Series User Manual

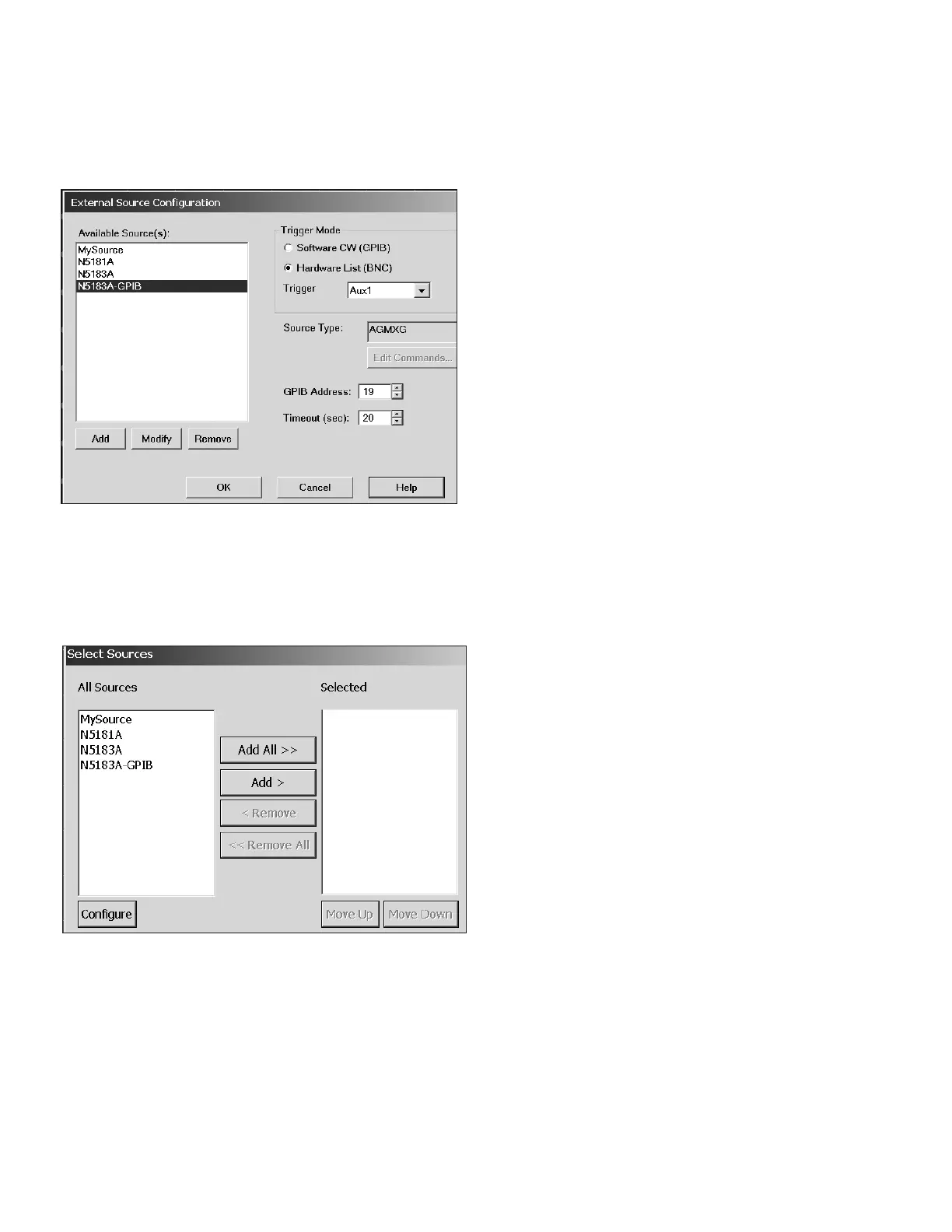

e) From the External Source Conguration dialogue box
select the trigger mode.
Note: Hardware trigger is TTL and is faster than Software trigger.
To learn more, select the Help button.
f) From the Select Sources dialogue box:
i) Highlight source name.
ii) Select Add.
iii) Select OK.
If all of your sources have been setup properly then the external sources
should start to sweep.
3. Verify operation:
a) Go to Frequency Offset dialog box and you should see
the external source listed.
81 | Keysight | Antenna Test – Selection Guide

Keysight PNA-X Series Specifications

General

Output Power	+13 dBm (typical)
Number of Ports	2 or 4
Dimensions	426 mm (W) x 470 mm (D)
Power Requirements	100 to 240 VAC, 50/60 Hz
Frequency Range	10 MHz to 26.5 GHz (varies by model)
