Keysight Technologies Startup Guide 1-11
Getting Started
STEP 4. Install the P937xA Network Analyzers
STEP 4. Install the P937xA Network Analyzers

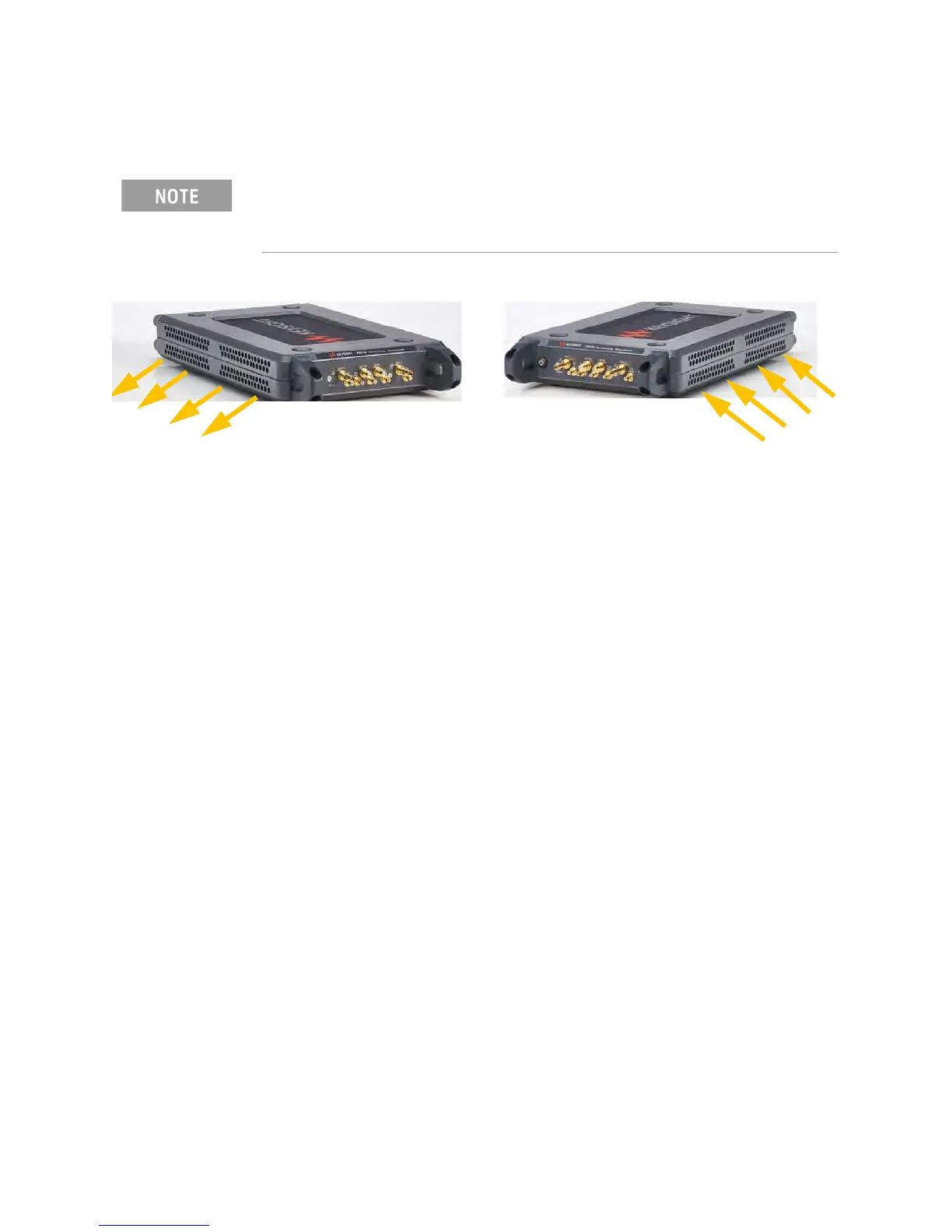

Figure 1-2 P937xA chassis air flow
Tools Required for the Installation Procedure
— Socket adapter (part number 5023-1450) - not supplied.
— Torque driver (for use with socket adapter), set to 8 lbf-in (0.91 N.m) - not
supplied.
— Cable removal tool (part number 5002-3361) - not supplied.
— T10 torque driver, set to 9 lbf-in (1.02 N.m) – not supplied.
IMPORTANT!
Please review all safety information located in Chapter 3 before
proceeding with installing and using the network analyzer.
Fan Exhaust Side
Fan Intake Side
The P937xA VNA has the right side of the instrument dedicated to
air intake and the left side dedicated to air exhaust.
