Keysight U3606B - Zero Offset (Short) Verification Test Setup; Figure 1-1 Test Setup for Zero Offset (Short) Verification

Calibration Procedures 1
Keysight U3606B Service Guide 27
Zero Offset (Short) Verification Test Setup

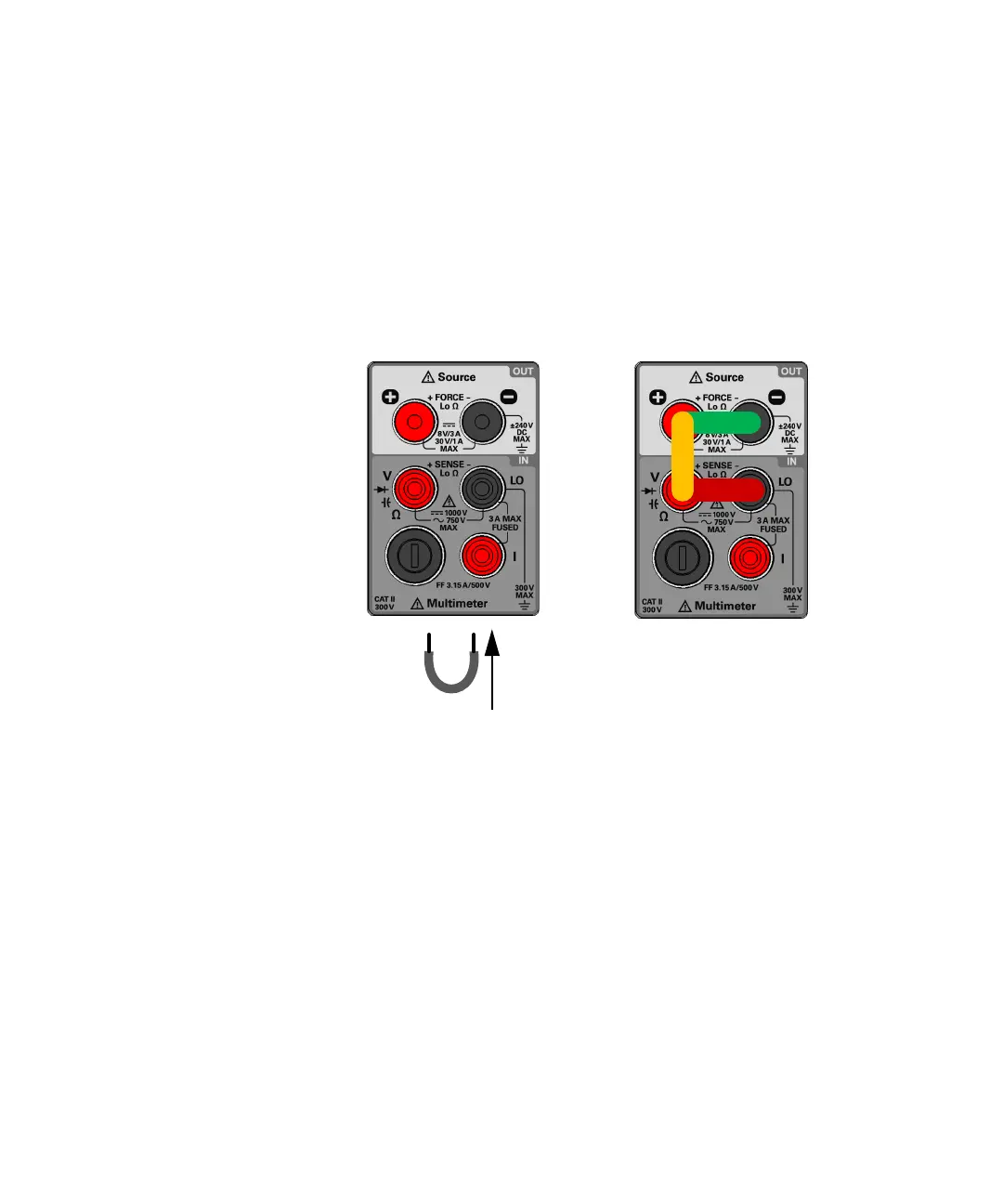

Figure 1-1 Test setup for zero offset (short) verification
For DC voltage, DC current
[a]
,
2-wire resistance, and
capacitance
[a] Open, by removing the shorting plug.
For 4-wire resistance
Connect the
shorting plug
to the V and
LO terminals
Connect a 4-wire short (copper)
across the FORCE
+ and –
terminals and SENSE
V and LO
terminals.
