8
MODEL #SE25 – 2,500LB (1134KG) WINCH
ASSEMBLy
CONTACTOR
POS(+)
NEG(-)
NEG(-)
POS(+)
TO BATTERY (+)
(RED POST)
TO BATTERY (-)
(BLACK POST)
TO WINCH (+)
(YELLOW)
TO WINCH (-)
(BLUE POST)
These two posts must
be wired to the battery!
R
E
D
B
L
U
E
Y
E
L
L
O
W
B
L
A
C
K
Assembly
Note: Some batteries may require the use of
longer bolts to fasten both the winch wire
ends and the stock vehicle wiring. Use two
M6 x 20mm Bolts (included) if required.

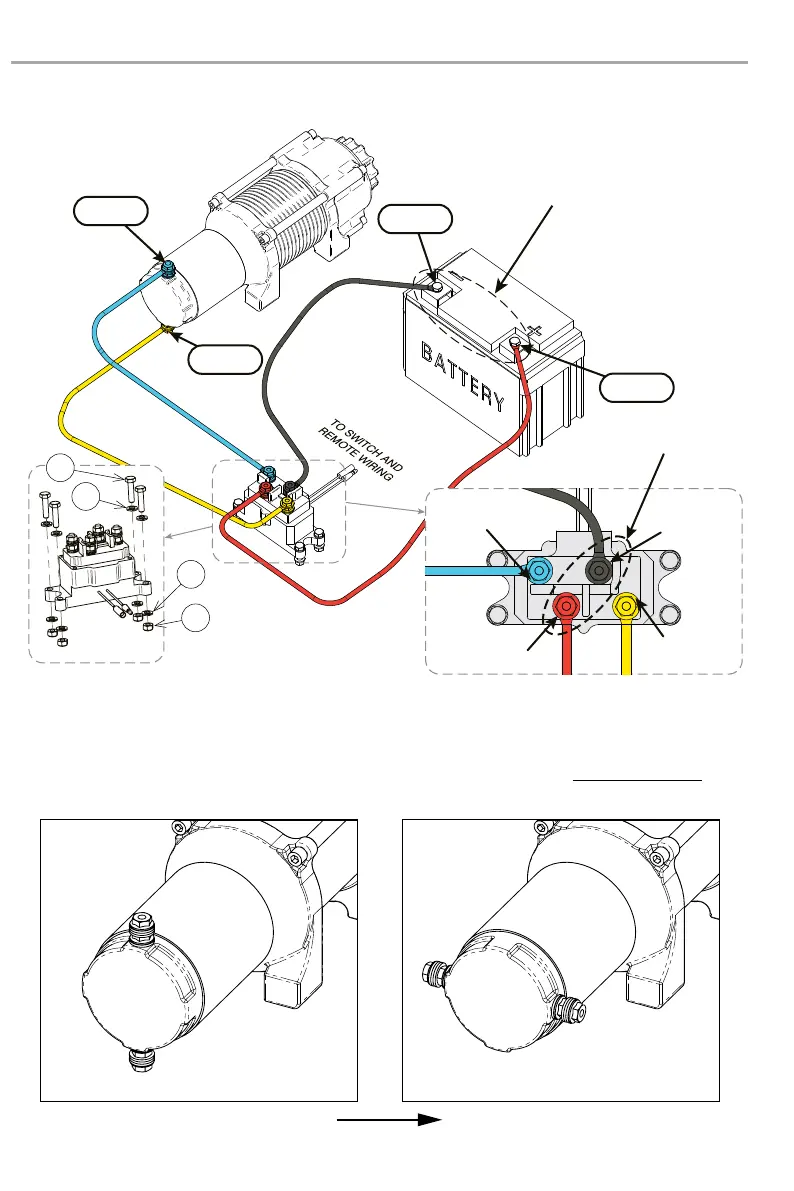

Winch Wiring Diagram
With some applications, the motor terminals may need to be rotated to avoid interference with other components. If rota-
tion is required please give us a call at 1-877-346-2050 for instructions or visit our website at www.kproducts.com and
look in the support section.
Motor End Terminal Rotation
42.5
42.3
42.4
42.2
LEADS AT DEFAULT POSITION LEADS ROTATED 90°
To Next Page
