MODEL #SE25 – 2,500LB (1134KG) WINCH
ASSEMBLy
IGNITION FED WIRE -
VOLTAGE MUST ONLY BE
SUPPLIED WHEN THE
KEY IS TURNED ON.
#ATV-MR
Mini Rocker Switch
#ATV-CONT or
#AS-CONT
Contactor Block
#ATV-HR
Handheld Corded Remote
#ATV-HR
Remote Socket
+12VDC

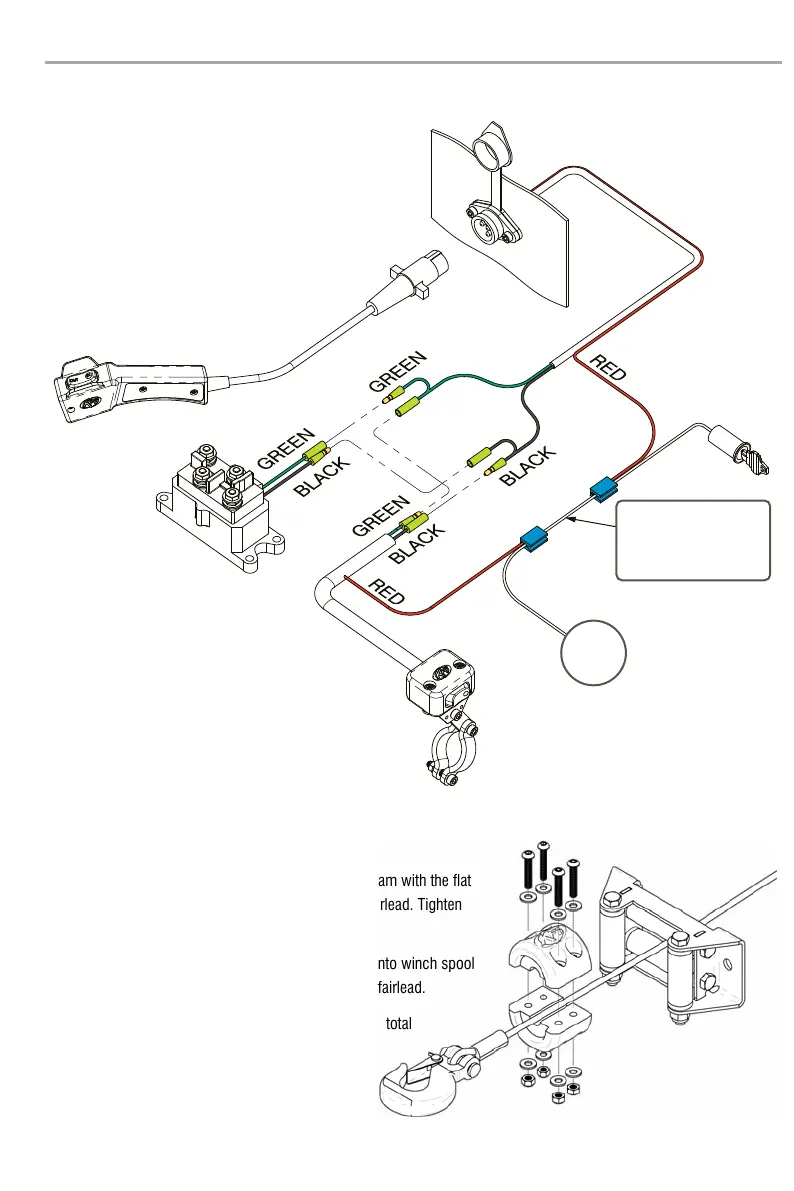

Controller Wiring Diagram
Cable Hook Stopper Installation and Use
1. Release winch and pull out approximately 2 feet of cable.
2. Assemble cable hook stopper as shown in diagram with the flat
portion of the two halves resting against your fairlead. Tighten
fasteners.
3. To stow hook, engage clutch and retract cable onto winch spool
until hook is snug against the hook stopper and fairlead.
4. Position cable hook stopper at approx. 3/4 of the total
line distance towards the hook while using your
winch to help reduce whip back in the event
of cable breakage.
